City of Rancho Santa Margarita

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 90% · department page
• What does this authority permit itself, and what does it delegate? Both 80% · authority page + city department page
• Is a permit required for a residential rooftop PV system? Yes 95% · department page
• Is there a separate electrical permit, or is it combined? Combined 62% · fee schedule
• Is a HOA or architectural approval required first? Not required as a city permit condition — HOA/architectural approval does not appear as a submittal item on the Eligibility Checklist or the Application for Building Permit. RSM has extensive private HOA coverage (at least 7 named associations on the city's own HOA directory, including the large master association SAMLARC covering most of the city), so a private CC&R architectural-review step commonly exists, but it is separate from and not enforced by the city's building-permit process; California's Solar Rights Act (Civil Code §714/§4600) in any case bars an HOA from effectively prohibiting solar. 55% · department page + published checklist (absence)
• Is there a historic-district review? No 55% · department page (absence)
• Is a wind or windstorm certification required? No 58% · published checklist (absence)
• Is a Specific Use Permit or Council approval ever required? No — not found as a requirement for a typical residential rooftop PV system 50% · department page (absence)
• Is there a system-size cap on residential generation? No absolute cap on residential generation size; 10 kW AC (CEC rating) or less is the threshold for the streamlined 'Expedited'/SolarAPP+ path. Systems above 10 kW, or with battery storage, or exceeding the panel's other prescriptive limits, are routed to standard (non-expedited) plan review rather than being prohibited. 78% · published checklist

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 58% · permit application form
• Must the contractor be registered with this authority before applying? No 52% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 60% · department page / forms list

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Application for Building Permit and Plan Review; completed Eligibility Checklist for Expedited Solar Permitting; a Solar PV Standard Plan (Simplified Central/String Inverter or Simplified Microinverter, as applicable) with supporting documentation; Structural Criteria for Residential Rooftop Solar Energy Installations (if the prescriptive checks are not all met, project-specific engineered drawings/calcs are substituted); a roof-layout diagram showing panels, access pathways and disconnect/roof-access locations. 88% · published checklist
• How many copies, and in what format? Electronic submittal via the Rancho Santa Margarita Permit Center (rsm.cts.city) for SolarAPP+/'Electronic Solar Permit Submittal' route; the separate, older 'Expedited Solar Permits' checklist route states completed applications 'should be submitted in-person at City Hall.' No specific paper-copy count is published for the in-person route. 55% · department page
• Is a site plan required, and what must it show? Yes — a roof plan/diagram showing module and anchor layout, all panels/modules, clear access pathways, and the approximate locations of electrical disconnecting means and roof access points. 88% · published checklist
• Is a one-line / three-line diagram required? Yes 80% · standard plan / checklist
• Are string and conductor calculations required? Yes 62% · standard plan
• Is a structural PE stamp required, and at what threshold? Required only if the prescriptive Structural Criteria checklist is NOT fully satisfied (roof condition, panel weight ≤4 psf, coverage ≤50% of roof, anchor spacing/embedment per the standard tables); in that case project-specific drawings and calculations must be 'stamped and signed by a California-licensed Civil or Structural Engineer.' No PE stamp is required if all prescriptive items check 'Yes'. 88% · published checklist / ordinance-referenced standard

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? Rancho Santa Margarita Permit Center (rsm.cts.city), a CitizenServe ('cts.city') portal, used for both SolarAPP+ automated submittals and standard 'Electronic Solar Permit Submittal' applications, plus inspection scheduling and results. 88% · portal landing page
• Can the whole application be completed online? Contradictory across the city's own current pages: SolarAPP+-eligible projects can be completed fully online (account creation, application, document upload, e-payment, e-signature, and inspection requests all through rsm.cts.city). But the separate, older 'Expedited Solar Permits' page — using the same 2015-vintage checklist/standard-plan documents — states completed applications 'should be submitted in-person at City Hall.' 75% · department page
• What does a residential solar permit cost? $385.36 flat, for 'Photovoltaic System - Residential' (each) 90% · fee schedule
• How is the fee calculated? Flat 88% · fee schedule
• Is there a separate plan-check fee? No 62% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Not a fixed number of business days is published; SolarAPP+-eligible submittals receive automated/instant plan review and permit issuance through the online portal. For the separate in-person 'Expedited Solar Permits' checklist route, no turnaround time is stated on the city's own Permit Process, Building & Safety, or Expedited Solar Permits pages. 55% · department page
• How long is an issued permit valid before it expires? 180 days between required inspections (permit expires if inspections are not scheduled/kept current every 180 days) 82% · permit application form
• Which utility handles interconnection here? Southern California Edison (SCE) 75% · city guidance document naming the utility

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (as incorporated into the 2025 California Electrical Code) 68% · city page (2025 CBC) + statewide code-cycle correspondence
• Which building code edition is in force? 2025 California Building Code (CBC) 92% · department page
• Which fire code edition is in force? Inferred: 2025 California Fire Code (CFC) — not separately confirmed by name 50% · inference from confirmed code cycle
• Are there local amendments to any of the above? Yes 75% · department page
• What is the installation judged against? The California Electrical Code (Articles 690 and 705), California Residential Code (Section R331 and R908), California Building Code (Chapter 15/1509.7) and California Fire Code (Section 605.11) — per the city's own PV-specific Inspection Guide and Standard Plans, which the field inspector checks the installation against. 72% · published inspection guide

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Hip roofs: 3-ft-wide clear access pathway from eave to ridge on each occupied slope. Hips/valleys: panels no closer than 18 in. to a hip/valley if placed on both sides (may be placed directly adjacent if only one side is occupied). Single ridges: two 3-ft-wide pathways from eave to ridge. Panels may be placed no higher than 3 ft from the top of the ridge, to preserve smoke-ventilation operations. Access pathways must be at structurally sound locations able to bear firefighter loads. 78% · published inspection guide

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? The city's only posted PV signage/labeling guidance — the Standard Plans and Inspection Guide (both dated 2015, expressly keyed to the 2013 CEC/CRC/CFC cycle) — contains NO mention of 'rapid shutdown' or NEC/CEC §690.12 anywhere in their markings tables; their DC-disconnect and signage scheme reflects the pre-2017/pre-690.12 (array-boundary-era) labeling regime. Rapid shutdown is nonetheless a mandatory requirement under whichever NEC/CEC edition is currently in force statewide (2023 NEC via the 2025 CEC, confirmed applicable to RSM via its 2025 CBC cycle) — the requirement is live even though the city's own document is silent and stale on this exact point. 50% · published standard plan (absence) + statewide code mandate

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? WARNING: PHOTOVOLTAIC POWER SOURCE plaques (junction/combiner boxes and conduit, marked every 10 ft); 'PV SYSTEM AC DISCONNECT' and 'PV SYSTEM DC DISCONNECT' placards with rated current/voltage fields; inverter-output-OCPD 'WARNING...DO NOT RELOCATE' plaque; dual-power-source directory plaque at the main service; ungrounded-system and shock-hazard warning plaques where applicable. 80% · standard plan
• Does the authority specify placard wording of its own? No 68% · standard plan
• Does it specify letter height, colour or material? 3/8-inch (9.5 mm) minimum white letters on a red background, made of reflective, weather-resistant material (the Standard Plan also cites ANSI Z535.4 and suggests a phenolic plaque with contrasting text/background, 20-point/3/8" type as a practical minimum). 78% · published inspection guide
• Is a site plan / facility map placard required, and what must it show? Yes — a roof-layout diagram is required showing all panels/modules, clear access pathways, and the approximate locations of the electrical disconnecting means and roof access points; separately, CEC 690.56(B)/705.10 directory-sign requirement (a permanent directory identifying the location of the service disconnect and the PV disconnect when not co-located) is called out in the Inspection Guide's markings table. 78% · published checklist
• Where must the labels be placed? At the AC and DC disconnects, at the main service (directory sign), on all interior/exterior DC conduit, enclosures, raceways, cable assemblies, junction/combiner boxes and disconnects (repeated every 10 ft, within 1 ft of turns/bends, and within 1 ft above/below roof, wall or barrier penetrations), and adjacent to the main service disconnect in a location clearly visible from where the disconnect is operated. 82% · published inspection guide

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes 85% · published inspection guide
• Are batteries permitted, and under what conditions? Utility-interactive systems WITHOUT battery storage are eligible for the city's streamlined Expedited/SolarAPP+ path; the Eligibility Checklist expressly excludes battery storage from that path ('Solar system is utility interactive and without battery storage'). Separately, OCFA requires its own ESS plan review/inspection (fee code PR375/PR375i) for energy-storage/battery-backup systems exceeding the capacity thresholds in CFC 1207 (OCFA's own materials give this as >50 gal. electrolyte or >1,000 lb. lithium-ion). 80% · published checklist + fire-authority fee schedule
• Is there a separate ESS permit or inspection? Yes, at the fire-authority level for systems above the CFC 1207 threshold 68% · fire-authority fee schedule
• Is there a local rule on service upgrades or busbar sizing? For the streamlined/expedited path: PV must interconnect to a single-phase 120/240V panel with a busbar rating of 225A or less, on the load side of utility distribution equipment. Separately, the city's general Residential Electric Panel Upgrade Guidelines specify conduit/conductor sizing for service upgrades (100A service: 1-1/4" conduit, 3-#4 AWG min. copper; 200A service: 1-1/2" conduit, 3-2/0 AWG copper). 75% · city guidance document
• Is a specific mounting system or attachment spacing required? Yes — prescriptive: modules flush-mounted parallel to the roof plane with a 2"-10" gap to the roof surface; panels+hardware ≤4 psf (PV) or ≤5 psf (solar thermal); array covers no more than half the total roof area; anchors use 5/16" dia. lag screws with 2.5" embedment at 4-6 ft o.c. for rafters (4 ft o.c., staggered, for trusses), or per manufacturer's engineering. Any project that fails these prescriptive checks needs engineer-stamped project-specific drawings instead. 90% · published checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

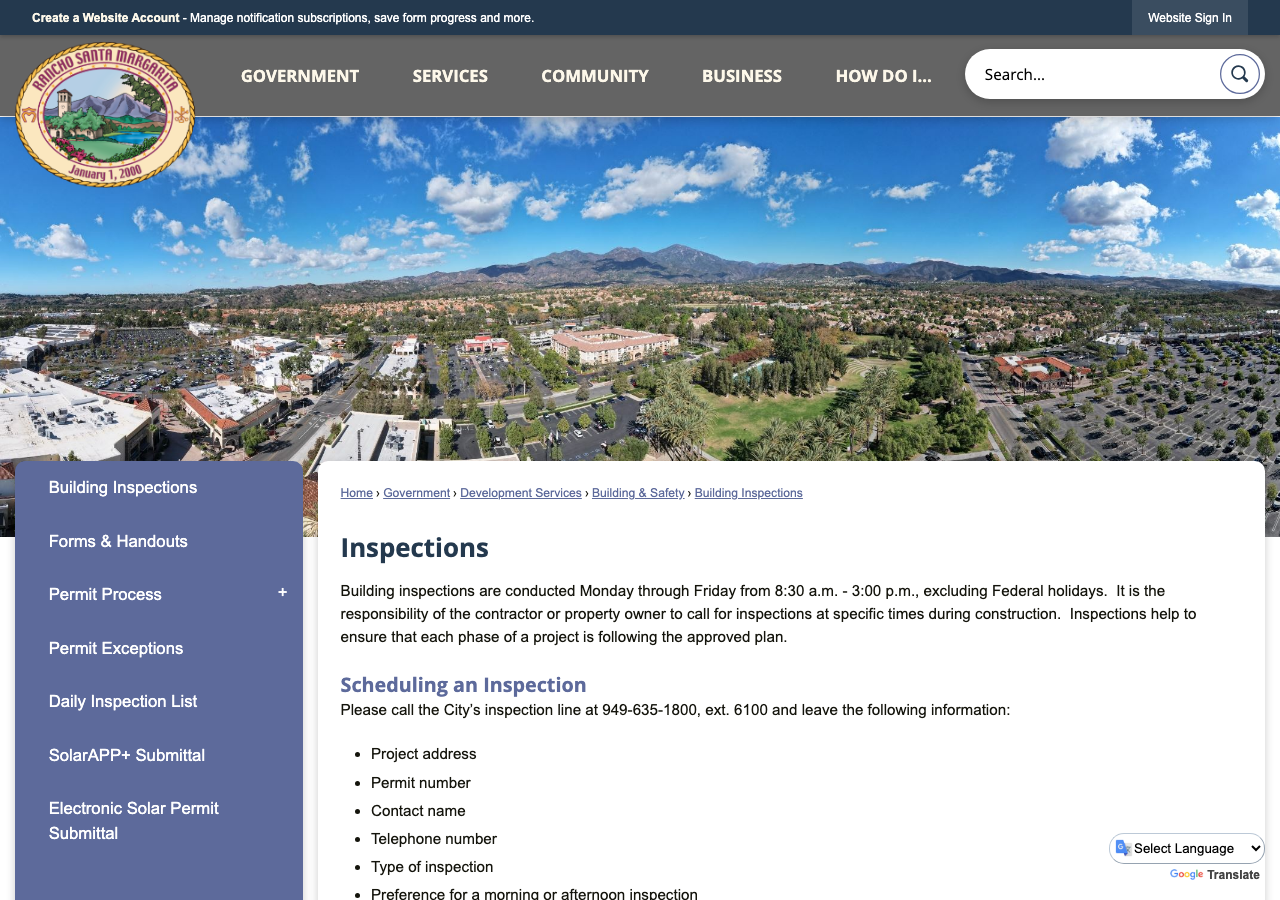

• How is an inspection booked? Portal (rsm.cts.city 'Request Inspection' button) for SolarAPP+/electronically-submitted solar permits; Phone (949-635-1800 ext. 6100) for the general/standard building-inspection line. 80% · department page
• How much notice is required? Effectively next business day: inspection requests received after 6:00 a.m. are scheduled for the following business day. 72% · department page
• Are same-day or AM/PM windows offered? Yes — caller states a preference for a Morning (8:30 a.m.-12:00 p.m.) or Afternoon (12:00-3:00 p.m.) inspection window; specific times are not guaranteed. 90% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 72% · published inspection guide + fire-authority fee schedule
• If delegated, to whom? Orange County Fire Authority (OCFA) — but only for the fire-code-triggered items (PV plan review 'requested by the Building Official' and battery/ESS systems above the CFC 1207 threshold), not for the ordinary building/electrical final. 68% · fire-authority fee schedule

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Not itemized as a multi-stage sequence for standard-plan roof-mount PV; the city's published Inspection Guide describes a single field inspection ('Field Inspection Guide for Rooftop Photovoltaic (PV) Systems') covering mounting, conduit, grounding/bonding, labels and equipment listing all at once, with disconnects/breakers in the open position at the time of inspection. A separate electrical rough-in inspection would apply only if a service-panel upgrade is also part of the scope. 52% · published inspection guide
• Is a rough-in or mid-roof inspection required? No, not for a standard-plan roof-mount PV-only system — the city's Inspection Guide describes a single consolidated field inspection. A separate rough-in/mid-construction electrical inspection would only be triggered if the scope also includes a service-panel upgrade (a general building-permit rule, not solar-specific). 52% · published inspection guide

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 95% · published inspection guide
• What must be on site at inspection? The approved plan set / job card must be on site and accessible to the inspector (a general building-inspection rule); for SolarAPP+ permits, the SolarAPP+ page additionally instructs applicants to 'print a copy of the approved Solar APP+ Checklist, and any other related documents, and have on site for the inspection.' 80% · department page
• Does the inspector verify labels and listings? Yes 90% · published inspection guide

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (building-permit 'Final Approval') 58% · department page
• Is there a re-inspection fee? $131.65 per hour 88% · fee schedule
