City of Rio Dell

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page + municipal code
• What does this authority permit itself, and what does it delegate? Both 72% · department bulletin (Dec. 2025) vs. solar-specific bulletin (2016)
• Is a permit required for a residential rooftop PV system? Yes 95% · municipal code
• Is there a separate electrical permit, or is it combined? Separate 78% · department bulletin
• Is a HOA or architectural approval required first? No general citywide HOA/architectural-review requirement for residential rooftop PV was found. RDMC's 'Design (D) combining zone' (Ch.17.25.050) imposes architectural/design review, but only on parcels specifically zoned into that overlay combining zone (multifamily, nonresidential, and 'other development' are the categories the section addresses) -- it is not a citywide requirement automatically triggered by a single-family PV installation. Chapter 15.20 (the solar-specific chapter) contains no HOA/design-review clause at all. 65% · municipal code
• Is there a historic-district review? No 80% · municipal code (control-checked absence)
• Is a wind or windstorm certification required? No 55% · municipal code (by omission / inference)
• Is a Specific Use Permit or Council approval ever required? Not required for a standard small residential rooftop system eligible for the Ch.15.20 expedited process (administrative Building Official approval only, no Council or Use Permit step). A Use Permit IS required, per RDMC 17.20, for 'Renewable energy development (i.e., commercial development, generation and sales of solar, wind energy)' -- but that use classification is commercial-scale generation-for-sale, not an individual home's rooftop PV system. 75% · municipal code
• Is there a system-size cap on residential generation? No hard cap on residential PV system size was found. RDMC 15.20.010(a) defines the EXPEDITED, ministerial-review process as applying only to systems 'no larger than 10 kilowatts alternating current nameplate rating or 30 kilowatts thermal' -- above that threshold, standard (non-expedited) discretionary permit review applies instead of an outright prohibition. 85% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 78% · municipal code + permit application form
• Must the contractor be registered with this authority before applying? No 78% · permit application form (by omission)
• Is a homeowner permitted to self-install and self-permit? Yes 80% · department bulletin

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per the City's 'Submittal Requirements — Solar Photovoltaic Installations 10 kW or Less' bulletin: (1) completed permit application form; (2) demonstrated compliance with the City's solar eligibility checklist; (3) a completed Electrical Plan showing main/utility disconnect location, module/string counts, inverter make/model, one-line diagram, grounding/bonding and conductor/conduit sizing, battery locations/venting if used, equipment cut sheets, and CEC 690/705 labeling; (4) a Plot Plan showing panel arrangement, north arrow, lot dimensions and distances to property lines/adjacent structures; (5) a roof plan showing PV panel layout plus fire-safety items (roof access point, code-compliant pathways, PV fire classification, and label locations); and (6) structural information/calculations per the tile-vs-composition-shingle roof-covering rule below (Q13). 90% · department bulletin
• How many copies, and in what format? The current (Dec. 2025) general 'Building Plan Check Submittal Requirements' bulletin states plans and supporting information should be submitted in electronic PDF format. The solar-specific (2016) bulletin does not state a copy count and describes submitting in person at 675 Wildwood Ave or electronically to two named Building Division staff; no paper-copy count is specified in either document. 70% · department bulletin
• Is a site plan required, and what must it show? Yes. A Plot Plan is required showing the arrangement of PV panels on the roof or ground, a north arrow, lot dimensions, and the distance from property lines to adjacent buildings/structures (existing and proposed); a separate roof plan must additionally show PV panel layout and fire-safety items (approximate roof access point, code-compliant access pathways, PV fire classification, and required label locations). 90% · department bulletin
• Is a one-line / three-line diagram required? Yes 92% · department bulletin
• Are string and conductor calculations required? Yes 90% · department bulletin
• Is a structural PE stamp required, and at what threshold? Structural drawings/calculations stamped and signed by a California-licensed Civil or Structural Engineer are required ONLY if the existing roof covering is tile, OR there is more than one layer of composition shingles. If the roof is a single layer of composition shingles (or not tile), only non-stamped plans 'of sufficient detail...to demonstrate the required load path to ground' (framing plan, cross-sections/details, panel weight/support/attachment method) are required -- no PE/architect stamp threshold tied to weight-per-square-foot or roof coverage percentage was found, unlike some neighboring cities' checklists. 88% · department bulletin

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? No dedicated online permit portal was found. The City distributes downloadable PDF application forms (e.g., Residential/Commercial Building Permit Application) from its own website and instructs applicants to submit them in person at 675 Wildwood Ave or by email to named Building Division staff; the site's only 'MyAccount' feature is a generic CivicPlus website-notification account, not an e-permitting system. 75% · department page (by omission)
• Can the whole application be completed online? No 75% · department bulletin (by omission)
• What does a residential solar permit cost? For a residential PV/electrical permit, the current (2025/26) Master Fee Schedule prices: Electrical Permit Issuance $26.00 + Photovoltaic Systems (flat, 'for each private photovoltaic system') $104.00, subject to Plan Check (65% of the building/electrical permit fee) and an Administrative Fee (66% of the same base), plus small State Seismic, CBSC, Continuing Education (.04) and Technology (.09) surcharges applied to the total. Using the same worked-example structure the City's own 2016 solar handout shows (Permit Issuance + PV fee + 65% plan check = subtotal; +66% admin fee; + small surcharges), a residential PV permit today totals roughly $300-$330, though the City's own worked example is stale (uses the OLD $24 issuance/$95.50 PV-fee figures, totaling $306.68 in 2016) and no current worked total is published. 70% · fee schedule (2025/26, Res. 1640-2025)
• How is the fee calculated? Flat 75% · fee schedule
• Is there a separate plan-check fee? Yes 90% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 3 business days (solar-specific, per the City's 2016 handout: 'Complete applications are typically reviewed and approved or denied within three (3) working days'). NOTE: the City's separate, current (Dec. 2025) general Building Plan Check Submittal Requirements bulletin states general residential/commercial plans (via the third-party Plan Checker/Consultant) are 'typically reviewed within 10 working days' once a Plan Checking Services Agreement is executed -- a longer, more recent, but not solar-specific, figure. Reported the solar-specific number as primary; flagged the tension. 70% · department bulletin
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) 80% · CCA program page (secondary) + City utility-services page (by omission)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (via the 2025 California Electrical Code) 72% · department page (current) vs. stale third-party code library (eCode360)

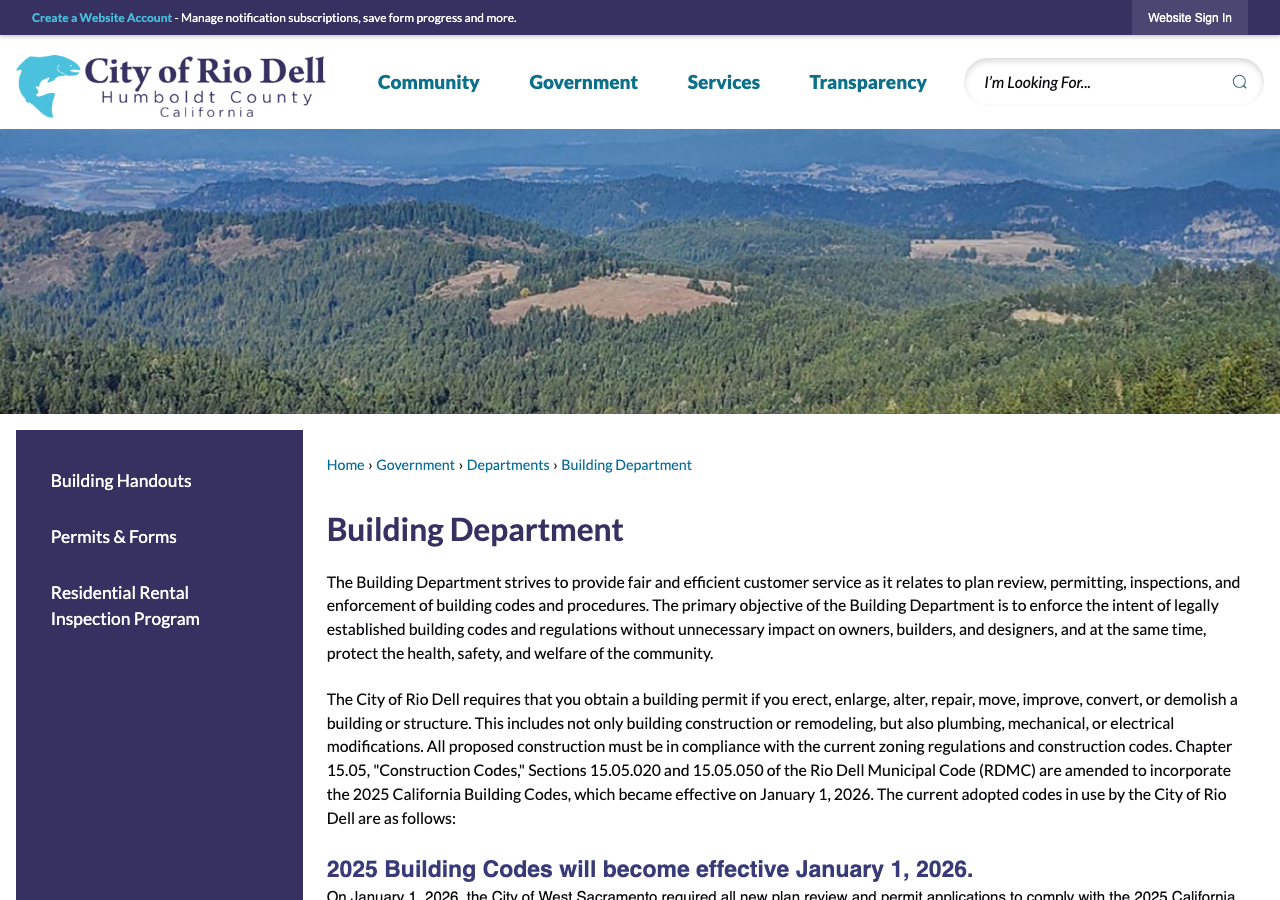

• Which building code edition is in force? 2025 California Building Code / California Residential Code (Part 2 / Part 2.5 of Title 24), per the City's Building Department page, effective 1 Jan 2026 -- amending RDMC 15.05.020, which on the (stale) eCode360 codified text still recites the 2022 cycle. See Q29 note on the codification lag. 72% · department page
• Which fire code edition is in force? 2025 California Fire Code (Part 9 of Title 24), per the City's Building Department page listing '2025 CA Fire Code' among current adopted codes effective 1 Jan 2026; the (stale) eCode360 codified text of RDMC 15.05.020(i) still recites the 2022 CFC. See Q29 note. 70% · department page
• Are there local amendments to any of the above? Yes, but administrative rather than technical: RDMC 15.05.020(4) affirmatively reserves the City's authority to adopt MORE restrictive standards than the state model codes 'after making the findings required by Government Code Section 17958.7,' and 15.05.030 codifies a locally-specific permit-exemption list (differs from a bare model-code adoption). No PV/solar-specific TECHNICAL amendment (e.g., to setback, rapid-shutdown, or battery provisions) beyond straight adoption of the state model CRC/CFC/CEC was found in Ch.15.05 or Ch.15.20. 68% · municipal code
• What is the installation judged against? The installation is judged against the currently-adopted California Electrical Code/California Residential Code (Chapter 3, Sec.331 CRC for PV-specific fire/roof-access rules; CEC Sections 690, 705 for PV electrical/labeling rules), per RDMC 15.05.020, PLUS the City's own 'Solar Inspection Checklist' (dated March 2017), which cross-references those exact CRC 331.x and CEC 690/705 sections as the field-inspection standard. 85% · department bulletin + municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Per the City's own 'Solar Inspection Checklist' (citing CRC Sec.331.4 et seq.): hip-roof layouts need a 3-ft-wide clear access pathway from eave to ridge on each roof slope with panels (CRC 331.4.2.1); single-ridge roofs need TWO 3-ft-wide pathways, eave to ridge (331.4.2.2) (both exceptions waived for roof slopes <=2:12); roofs with hips/valleys need panels kept >=18 in. from the hip/valley when panels are on both sides (331.4.2.3); and panels must stop no higher than 3 ft below the ridge for smoke-ventilation access (331.4.2.4). A residential array is also capped at 150 ft x 150 ft per axis, and panels may extend to the ridge only with fire-chief-approved alternative ventilation (331.4, Exceptions). 90% · department bulletin

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes -- rapid shutdown is required to whichever NEC/CEC edition is currently adopted (see Q29: 2023 NEC via the 2025 CEC, effective 1 Jan 2026; the stale eCode360 text still shows the 2022 CEC/2020 NEC). Rio Dell's own local documents do not separately restate the rapid-shutdown rule by number, but it flows automatically from the adopted CEC's incorporation of NEC Article 690.12. 70% · municipal code (by inference from code adoption)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Per the City's own 'Solar Inspection Checklist' Signage/Label Requirements table: (1) a utility-interactive inverter/battery-enclosure shock-hazard warning label (CEC 690.5(C)); (2) an ungrounded-circuits shock-hazard warning on any enclosure with exposed energized ungrounded conductors (CEC 690.35(F)/609.35(F) as cited); (3) a 'DC DISCONNECT IS LOCATED...' label where the DC disconnect is remote from the main service (CEC 690.14(C)(1)); (4) a 'PHOTOVOLTAIC SYSTEM DISCONNECT' label on AC and DC disconnects (CEC 690.14(C)(2)); (5) an operating-current/voltage rating placard at DC disconnects (CEC 690.53); (6) a rated-AC-output/voltage placard at points of interconnection (CEC 690.54); (7) a directory showing the location of the service disconnect and PV disconnect (CEC 690.56(B)/690.14(D)(4)/705.10/690.4(H)); (8) a 'terminals may be energized' warning on DC disconnects/equipment that stays energized when off (CEC 690.17); (9) an inverter-output-OCPD 'do not relocate' warning (CEC 705.12(D)(7)); and (10) a 'WARNING: PHOTOVOLTAIC POWER SOURCE' conduit/raceway marking placard, red background/white lettering, every 10 ft (CFC 605.11.1.4, CEC 690.31(E)(3)/(4), CRC 331.2.4). 92% · department bulletin
• Does the authority specify placard wording of its own? Yes 92% · department bulletin
• Does it specify letter height, colour or material? Yes, for the interior/exterior DC conduit marking specifically: item 2 of the Solar Inspection Checklist requires marking materials to be 'reflective, weather resistant and suitable for the environment,' 'All letters capitalized, minimum height of 3/8",' 'white on red background,' reading 'WARNING PHOTOVOLTAIC POWER SOURCE' (citing CRC 331.2.1/331.2.2). The general CEC 690/705 placard table (Q38) does not separately restate letter-height/colour for every one of those labels beyond the CFC 605.11.1.4 conduit-marking item, which likewise specifies red background/white lettering. 85% · department bulletin
• Is a site plan / facility map placard required, and what must it show? Yes. The Solar Submittal Requirements bulletin requires a Plot Plan/site diagram showing the arrangement of panels on the roof or ground, a north arrow, lot dimensions and distances from property lines to adjacent buildings/structures; separately, CEC 690.56(B)/705.10 (quoted in the Solar Inspection Checklist's signage table) requires a directory/facility-map-style placard at the service equipment showing the location of the service disconnecting means and the PV system disconnecting means. 85% · department bulletin
• Where must the labels be placed? Per the City's Solar Inspection Checklist signage table: at/inside the utility-interactive inverter and battery enclosure; on all enclosures with exposed ungrounded/energized conductors; on the main service (if the DC disconnect is elsewhere); on both the AC and DC disconnects; at the DC disconnect(s); at the point(s) of utility interconnection (usually the main service); at the electrical service AND at the PV inverter if not co-located (the required directory); on the inverter-output OCPD; and on conduits/raceways/enclosures carrying PV conductors, marked at 10-ft intervals, at turns, and within 1 ft above/below penetrations of roofs, walls and barriers (also stated independently in item 3 of the checklist, citing CRC 331.2.4). 88% · department bulletin

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Are batteries permitted, and under what conditions? Batteries are permitted as part of a standard PV electrical-permit submittal, not called out as a separately restricted use: the Solar Submittal Requirements bulletin instructs that 'If batteries are to be installed, include them in the diagram and show their locations and venting' as one item within the required Electrical Plan. No local Fire Code amendment addressing battery/ESS quantity limits, location restrictions, or a separate approval process was found in RDMC Ch.15.05 or Ch.17 (checked; only unrelated 'batteries' reference found was in the Title 17 cannabis-cultivation definitions, concerning ancillary power for cannabis operations, not residential PV). 68% · department bulletin (control-checked absence of a separate rule)
• Is there a separate ESS permit or inspection? No 62% · fee schedule (by omission) + department bulletin
• Is a ground mount treated as a structure? Yes 85% · municipal code (definitional)
• Is there a local rule on service upgrades or busbar sizing? No Rio Dell-specific local amendment to service/busbar sizing was found; the City's own Solar Inspection Checklist instead documents the STANDARD NEC/CEC 705.12(B)(3)(2) 120% rule as a field-verified item: 'Sum of the main OCPD and the inverter OCPD is rated for not more than 120% of the bus bar rating' -- this is the state model code rule being checked at inspection, not a local amendment tightening or loosening it. 70% · department bulletin

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone or Email 85% · department bulletin
• How much notice is required? Effectively next business day: the City's Solar Submittal Requirements bulletin states 'Inspection requests received within business hours are typically scheduled for the next business day,' i.e., roughly 1 business day's notice. 82% · department bulletin

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 78% · department bulletin

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For a small residential rooftop system (<=10kW AC / <=30kW thermal) eligible for the Ch.15.20 expedited process, RDMC 15.20.020(c) requires only ONE inspection (which 'may include a consolidated inspection by the Building Official and Fire Chief'); if it fails, 'a subsequent inspection is authorized' and need not follow the one-inspection rule. The City's Solar Inspection Checklist implies this single inspection covers module/model verification, grounding, workmanship, fastening/sealing, conductor sizing, signage, and OCPD/inverter ratings all at once (see Q56-58), rather than separate rough-in and final stages. 85% · municipal code
• Is a rough-in or mid-roof inspection required? No 70% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 92% · department bulletin
• What must be on site at inspection? Per the City's Solar Submittal Requirements bulletin: 'Permit holders must be prepared to show conformance with all technical requirements in the field at the time of inspection' against 'the approved plans' -- meaning the approved (stamped/issued) permit plan set must be on site, along with the installed equipment matching the plan set's module/inverter model numbers and specification sheets (per the Solar Inspection Checklist's first checked item). 78% · department bulletin
• Does the inspector verify labels and listings? Yes 90% · department bulletin

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 65% · municipal code (inference)
• Who notifies the utility for PTO? Installer 70% · municipal code
• How are corrections issued and cleared? Per RDMC 15.20.020(d): an incomplete application draws 'a written correction notice detailing all deficiencies... and any additional information required to be eligible for expedited permit issuance' from the Building Official. On the inspection side, 15.20.020(c) allows a failed inspection to be followed by 'a subsequent inspection,' which is authorized without needing to meet the one-inspection rule again -- but no document specifies HOW corrections are formally cleared (e.g., a written sign-off) beyond passing the follow-up inspection. 70% · municipal code
