City of Sanger

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

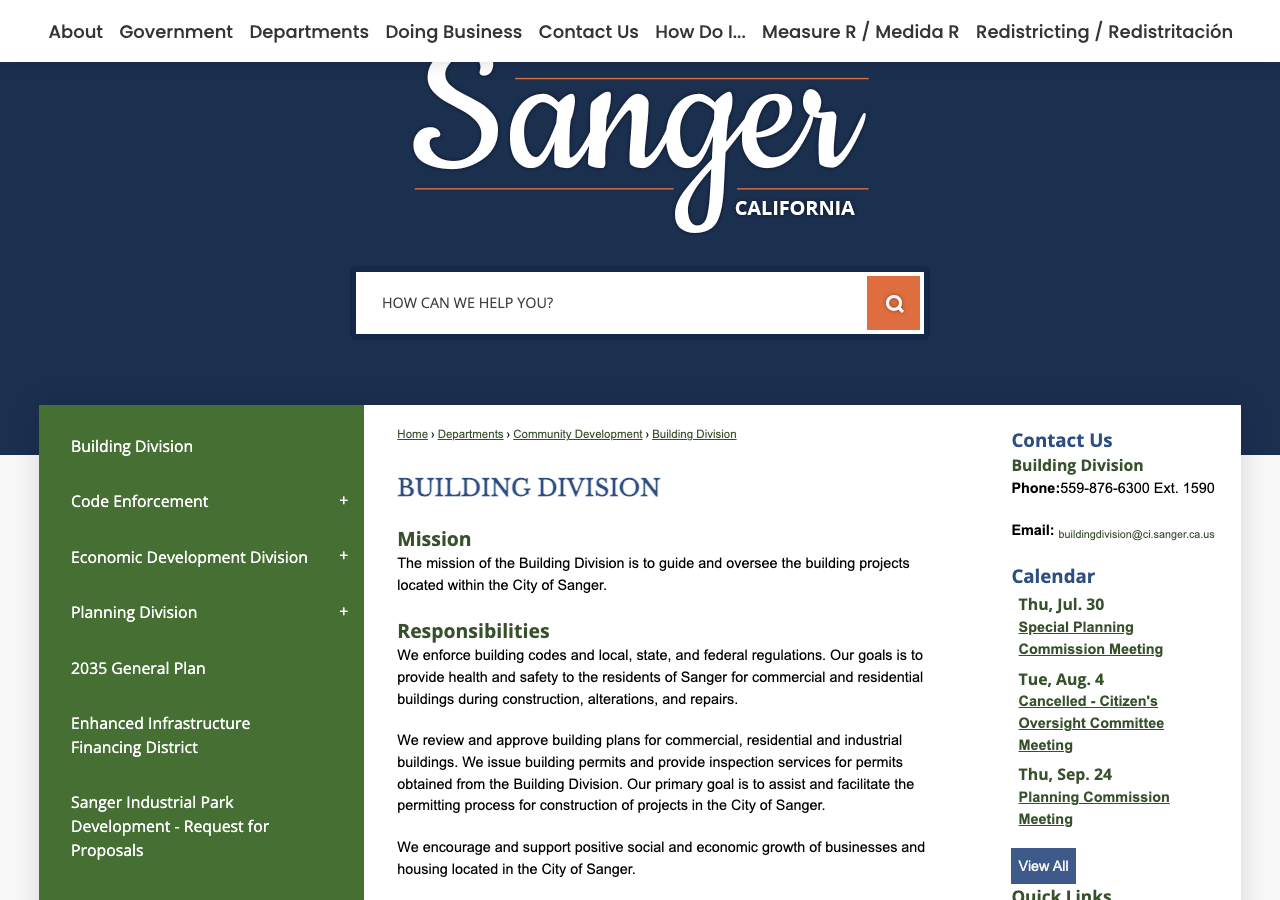

• Is this authority the AHJ for residential solar at this address? Yes 90% · department page
• What does this authority permit itself, and what does it delegate? Both 90% · municipal code
• Is a permit required for a residential rooftop PV system? Yes 95% · municipal code
• Is there a separate electrical permit, or is it combined? Combined 65% · fee schedule
• Is a HOA or architectural approval required first? No 80% · municipal code
• Is there a historic-district review? No historic-district review found 65% · municipal code (TOC review)
• Is a wind or windstorm certification required? No wind/windstorm-certification requirement found beyond the standard (unamended) CBC/ASCE 7 wind design in the adopted 2022 CBC 60% · municipal code
• Is a Specific Use Permit or Council approval ever required? No -- qualifying systems are administratively approved by the Building Official under SMC §14-93; no CUP, SUP, or Council approval step is described 85% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC nameplate rating or 30 kW thermal, and the array must not exceed the maximum legal building height; single/duplex-family dwellings only 90% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 80% · municipal code
• Must the contractor be registered with this authority before applying? Yes 60% · fee schedule
• Is a homeowner permitted to self-install and self-permit? Yes 75% · municipal code

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per the city's 'PV System Construction Plan Requirements' handout: roof access pathways/fire setbacks; rooftop attic-vent locations; quantity/spacing of structural attachments + spec sheets; weather-sealing method + spec sheets; array fire-classification rating + module spec sheets; module-mounting rack grounding/bonding + rack spec sheet + manufacturer module-compatibility list; DC conductor type/size/calcs; AC conductor type/size/calcs; OCPD size/calcs; inverter type/size + spec sheet; panelboard bus size; microinverter quantity per branch circuit + spec sheet; disconnect types/locations; PV component marking/labeling; and rapid-shutdown method + spec sheet. 85% · published checklist
• How many copies, and in what format? Personal, mailed, or electronic submittal (e-mail, internet/portal upload, or fax); electronic signatures accepted in lieu of a wet signature 80% · municipal code
• Is a site plan required, and what must it show? Yes -- an 'Example Plot Plan' is a published form, and the PV checklist requires roof access pathways, fire setbacks, and attic-vent locations to be shown on plans 75% · published checklist
• Is a one-line / three-line diagram required? Implied but not named as such -- the checklist requires DC/AC conductor sizing and calculations, OCPD size, inverter data, panelboard bus size, microinverter count per branch circuit and disconnect types/locations (items 7-13), which are conventionally shown on a one-line diagram, but the document never uses the term 'one-line' or 'three-line' 60% · published checklist
• Are string and conductor calculations required? Yes 90% · published checklist
• Is a structural PE stamp required, and at what threshold? No stated PE-stamp threshold -- SMC §14-93(b)(3)(A) instead requires the applicant to 'verify to the applicant's reasonable satisfaction through standard engineering evaluation techniques' that the support structure is adequate; this is the AB2188-style self-verification model, not a mandatory city PE-stamp trigger 70% · municipal code
• Is an electrical PE stamp required, and at what threshold? No stated PE-stamp threshold -- SMC §14-93(b)(3)(B) requires applicant self-verification 'using standard electrical inspection techniques' of existing panel/line/load capacity rather than a mandated electrical PE stamp 70% · municipal code

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? iWorQ -- building permit applications go through 'cityofsangerrequests.portal.iworq.net', and the separate contractor/inspection portal is 'portal.iworq.net/SANGER/permits/600' 90% · portal landing page
• Can the whole application be completed online? Yes 80% · department page
• What does a residential solar permit cost? Valuation-tiered building permit fee, e.g. $563 for a $25,001-$50,000 valuation (typical residential PV range); tiers run $48 ($1-500) up to $8,050 (>$1,000,000) 60% · fee schedule
• How is the fee calculated? Valuation 85% · fee schedule
• Is there a separate plan-check fee? Yes -- 'Building Plan Check Fee' is a distinct line item, but instead of a dollar figure the schedule cross-references '2013 California Building Code' (i.e. the CBC's own plan-check percentage table) rather than stating a city dollar amount or percentage directly 70% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• How long is an issued permit valid before it expires? 180 days without commencement/continuous work causes expiration, per the (unamended) adopted 2022 CBC/CRC §105.5 -- Sanger's local amendments to Ch.14 Art.II/II.V (§§14-51-14-62, 14-81-14-93) do not touch §105.5, and Appendix AL (fees) was deleted but not the permit-validity section 65% · inference from municipal code + form
• Which utility handles interconnection here? Pacific Gas and Electric Company (PG&E) 85% · city environmental document (CalEEMod appendix)
• Where does the utility sit in the sequence? After permit (PTO), but construction/installation may begin once the AHJ permit issues -- per PG&E's own Rule 21 tariff (§D.13.b), PTO for NEM is processed upon receipt of 'evidence of Applicant's final electric inspection clearance from the Governmental Authority having jurisdiction', i.e. utility PTO is downstream of and gated on the city's own final inspection 60% · utility tariff

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2020 85% · adopting ordinance
• Which building code edition is in force? 2022 California Building Code / 2022 California Residential Code (based on the 2021 IBC/IRC) 85% · adopting ordinance
• Which fire code edition is in force? 2013 California Fire Code (incorporating the 2012 International Fire Code, Appendix Chapters E and F) 85% · adopting ordinance
• Are there local amendments to any of the above? Yes 90% · municipal code
• What is the installation judged against? The 2022 CEC (incorporating the 2020 NEC) for electrical, the 2022 CBC/CRC for structural/building, and the locally-amended 2013 CFC (which adds the DC-rooftop-disconnect rule at §605.11.5) for fire -- installation is judged against this composite, plus SMC §14-93's own solar-specific criteria 80% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Roof access pathways and fire setbacks are required to be shown on plans (PV checklist item 1); the actual dimensional standard is presumed to be the (unamended) 2022 CRC's own solar-access/pathway provisions since Sanger's residential-code deletions list only removes Appendix AI/AL/AV, not the pathway sections, and no separate local pathway/setback amendment was found in the fire-code amendment list 55% · inference from municipal code + checklist

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, to the 2020 NEC (§690.12 module/system-level rapid shutdown, as incorporated by the 2022 CEC) 80% · published checklist

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? A locally-mandated 'Emergency DC Disconnect' placard at the roof-mounted DC disconnect (CFC §605.11.5, added by SMC §30-58(l)); plus standard NEC/CFC PV component marking and labeling per PV checklist item 14 85% · municipal code (fire code amendment)
• Does the authority specify placard wording of its own? Yes -- exact wording specified: 'Emergency DC Disconnect' 90% · municipal code (fire code amendment)
• Does it specify letter height, colour or material? Material: 'permanently labeled in reflective, fade-resistant material'. Letter height and colour are not specified. 80% · municipal code (fire code amendment)
• Does the UTILITY specify placards beyond the AHJ's? PG&E's own Rule 21 tariff requires a visible interconnection disconnect with open/closed position markings, lockable and accessible, and shown on the single-line diagram (§H.1.d 'Visible Disconnect Required' in the general Rule 21 tariff text) 55% · utility tariff
• Where must the labels be placed? The 'Emergency DC Disconnect' placard must be on a NEMA 3R enclosure installed 'as close to the array as possible' on the roof, per CFC §605.11.5 80% · municipal code (fire code amendment)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? No city-maintained approved-equipment list; instead the submittal must include the manufacturer's own 'certified compatibility module list' for the racking system 75% · published checklist
• Is a ground mount treated as a structure? Yes, by inference -- SMC §90-52 defines 'Structure' broadly as 'anything constructed or built... which requires location on the ground or is attached to something having a location on the ground', with no PV-specific carve-out; a ground-mounted array would meet this generic definition 60% · municipal code (zoning definitions)
• Is there a local rule on service upgrades or busbar sizing? No local rule found on service-upgrade review or busbar sizing 65% · municipal code
• Is a specific mounting system or attachment spacing required? No prescriptive city-set spacing standard; the submittal must show 'quantity and spacing of structural attachments' with manufacturer specification sheets for city engineering review on a per-project basis, rather than the city imposing a fixed spacing figure 75% · published checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

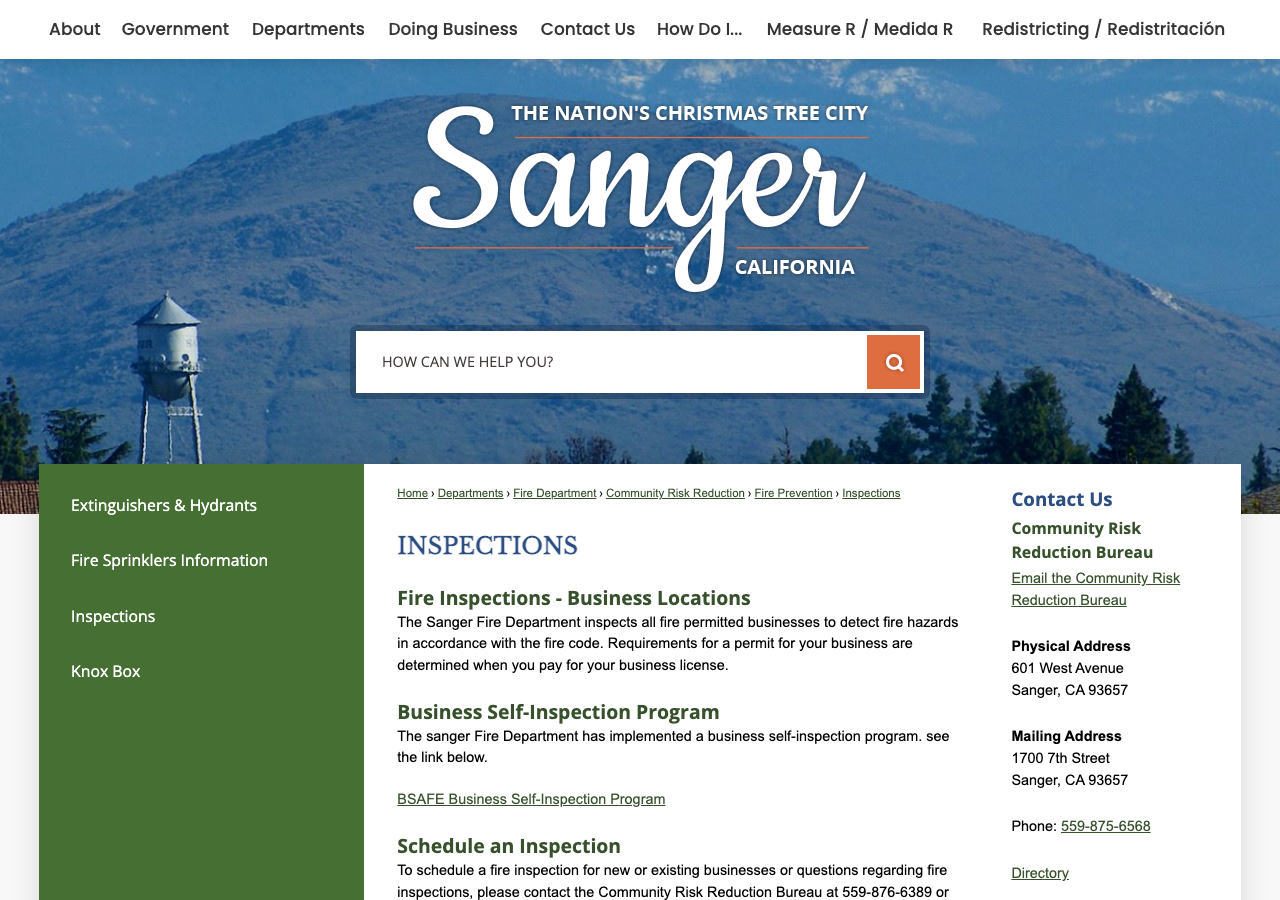

• How is an inspection booked? Portal 90% · department notice
• How much notice is required? Effectively 1 business day -- requests made before 4:00pm are scheduled for the following business day; requests after 4:00pm or when the city is closed are processed and scheduled for the business day after that 90% · department page/handout
• Are same-day or AM/PM windows offered? Yes -- AM window 8:00am-11:59am, PM window 12:00pm-3:30pm; specific-time requests are 'considered but not guaranteed' 90% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 90% · department page
• If delegated, to whom? N/A -- not delegated; the City's own in-house Building Division performs final solar inspection (see Q52) 90% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For a qualifying small residential rooftop system (<=10kW AC/30kW thermal), 'only one inspection shall be required, which shall be done in a timely manner'; if it fails, a subsequent (re-)inspection follows 85% · municipal code
• Is a rough-in or mid-roof inspection required? No, for qualifying expedited systems -- SMC §14-93(b)(4) requires 'only one inspection'; a rough-in/mid-roof inspection is not called out 80% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• What must be on site at inspection? Approved plans and job card must be on-site and accessible to the inspector; work to be inspected must be complete 85% · department handout
• Does the inspector verify labels and listings? Yes, by inference -- PV checklist item 14 requires 'marking and labeling of PV system components' to be shown on plans, and the fire code separately mandates the 'Emergency DC Disconnect' placard (§605.11.5), both of which a field inspector would confirm as-built 65% · inference

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Who notifies the utility for PTO? Installer 85% · municipal code
• Is there a re-inspection fee? $94.00 flat 90% · department policy memo
• How are corrections issued and cleared? At the application stage, SMC §14-93(b)(5) requires the Building Official to 'issue a written correction notice detailing all deficiencies' for an incomplete application. No separate document describing how field-inspection corrections (post-inspection) are issued or cleared was found. 55% · municipal code
