City of Santa Barbara

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 90% · ordinance
• Is a permit required for a residential rooftop PV system? Yes 95% · department guide
• Is there a separate electrical permit, or is it combined? Combined 80% · fee schedule
• Is a HOA or architectural approval required first? No (for qualifying small residential rooftop systems) 80% · ordinance
• Is there a historic-district review? No (for qualifying small residential rooftop systems under SBMC 22.91) 65% · ordinance
• Is a wind or windstorm certification required? No 65% · ordinance
• Is a Specific Use Permit or Council approval ever required? A 'Performance Standard Permit' (per Ch. 28.93) is required only if the Building Official finds the system could have a 'specific, adverse impact' on public health/safety; appeal in that case goes to the Planning Commission, not the City Council, and its decision is final 85% · ordinance
• Is there a system-size cap on residential generation? No fixed hard cap; the On-Demand fast-track applies up to 40 kW AC PV with up to 40 kW of optional storage, and larger systems are routed to standard plan review rather than being capped or prohibited 70% · department page

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed contractor 80% · department page
• Must the contractor be registered with this authority before applying? Yes 85% · department page
• Is a homeowner permitted to self-install and self-permit? Yes, on the standard (non-On-Demand) plan-check track 65% · department page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Site/roof plan, single-line electrical diagram, PV equipment specification sheets (module/inverter/mounting), and (for the standard track) structural/electrical self-verification per SBMC 22.91; submitted as a complete PDF plan set through Accela Citizen Access 70% · submittal guide
• How many copies, and in what format? Electronic PDF submittal only via Accela Citizen Access; files must be unprotected/unlocked, no ZIP files accepted 80% · submittal guide
• Is a site plan required, and what must it show? A site/roof plan is required for the standard plan-check track showing the building footprint, property lines, and panel/equipment layout; the On-Demand PV track (no plan review) does not appear to require a separate site-plan upload beyond the online checklist 55% · submittal guide
• Is a one-line / three-line diagram required? Yes (standard track) 65% · submittal guide
• Is a structural PE stamp required, and at what threshold? No fixed local dollar/size threshold found; SBMC 22.91.020.A.1 requires the applicant to self-verify via 'standard engineering evaluation techniques' that the mounting structure is adequate -- a stamped PE letter is only required if the installation departs from the state Solar Permitting Guidebook prescriptive 'Flush Mount' standard referenced in 22.91.030.D 55% · ordinance
• Is an electrical PE stamp required, and at what threshold? Not found as a separate local requirement; standard CEC-compliant installation is expected to suffice 50% · ordinance

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

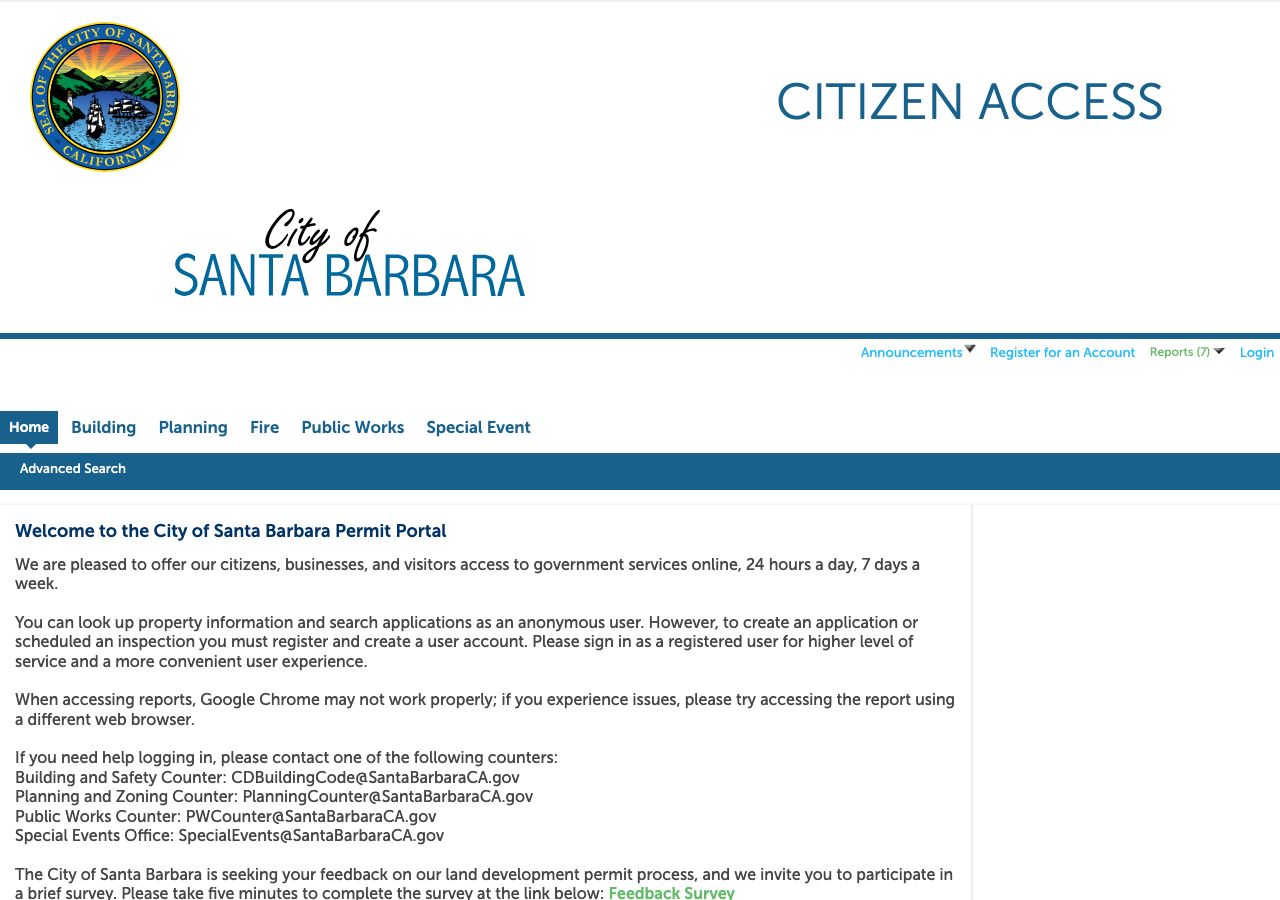

• Which permit portal does this authority use? Accela Citizen Access (ACA), also embedded at permits.santabarbaraca.gov 95% · portal landing page
• Can the whole application be completed online? Yes 95% · portal landing page
• What does a residential solar permit cost? $450 flat for systems 15 kW AC or less, plus $15 per kW above 15 kW (residential) 95% · fee schedule
• How is the fee calculated? Tiered 95% · fee schedule
• Is there a separate plan-check fee? No, for qualifying On-Demand PV/ESS permits (no plan review = no plan-check fee); Yes for systems routed to standard plan check ($202 per 30 min) 80% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Instant (no plan review) for qualifying On-Demand solar PV; otherwise per the standard tier the project falls into (5 to 30 business days) 95% · department guide
• How long is an issued permit valid before it expires? 180 days without commencing work, or 180 days without a passed inspection, whichever first invalidates the permit; maximum permit life of 6 years even with extensions 90% · ordinance
• Which utility handles interconnection here? Southern California Edison (SCE) 95% · department page
• Where does the utility sit in the sequence? After permit 70% · department page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2020 NEC (as the 2022 California Electrical Code); local Ordinance 6093 amendments have not been confirmed updated for the 2025 statewide code cycle (2023 NEC, effective 1/1/2026) 65% · adopting ordinance
• Which building code edition is in force? 2022 California Building Code / California Residential Code (per Ord. 6093, adopted 11/15/2022); same 2025-cycle caveat as NEC above 70% · adopting ordinance
• Are there local amendments to any of the above? Yes 90% · adopting ordinance
• What is the installation judged against? The 2022 California Residential Code Section R331 (solar photovoltaic systems: marking, roof access, pathways) as adopted by Ord. 6093, plus the 2022 California Electrical Code (NEC Articles 690/705/706) for the electrical installation 85% · department handout

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Hip-roof buildings: one 3-ft-wide clear access pathway eave-to-ridge on each slope with panels. Single-ridge buildings: two 3-ft-wide pathways eave-to-ridge per slope with panels. Hips/valleys: panels no closer than 18 inches to a hip or valley (unless placed on only one side of an equal-length hip/valley). Smoke ventilation: panels no higher than 3 ft below the ridge. 95% · department handout

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown is required under NEC 690.12 as incorporated into the 2022 California Electrical Code (2020 NEC base); no local amendment altering it was found 80% · adopting ordinance

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? A 'WARNING: PHOTOVOLTAIC POWER SOURCE' marking placard/label at the DC conduit, enclosures, raceways, cable assemblies, junction boxes, combiner boxes, and disconnects, plus adjacent to the main service disconnect 95% · department handout
• Does the authority specify placard wording of its own? Yes 95% · department handout
• Does it specify letter height, colour or material? Reflective, weather-resistant material; all capital letters, minimum 3/8 inch height, white lettering on a red background 95% · department handout
• Is a site plan / facility map placard required, and what must it show? Not specifically detailed beyond the required service-equipment marking and roof-access-pathway markings; no separate site/facility map placard content list was published by the city beyond the general NEC 705.10 directory/plaque requirement for multiple sources 55% · department handout
• Where must the labels be placed? DC-side marking at conduit/enclosures/junction boxes/combiner boxes/disconnects, plus a marking adjacent to the main service disconnect, in a location clearly visible from where the disconnect is operated 90% · department handout

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? No dedicated city equipment-approval list found; the ordinance requires UL/ETL (or equivalent accredited testing laboratory) listing and CEC/IEEE compliance rather than naming a specific approved-products list 70% · ordinance
• Are batteries permitted, and under what conditions? Yes -- battery/ESS is an explicit On-Demand/Instant permit category, up to 40 kW, when paired with or added to a PV system 90% · department page
• Is there a separate ESS permit or inspection? Yes for a stand-alone addition -- adding an ESS to an existing PV system is its own separate On-Demand permit category; when installed together with PV it is issued as one combined PV+ESS permit 75% · department page
• Is a ground mount treated as a structure? Yes, presumed (general CBC application, not a solar-specific local amendment) 55% · adopting ordinance / inference
• Is a specific mounting system or attachment spacing required? No local mounting-system mandate beyond following the manufacturer's engineering; flush-mount installations conforming to the California Solar Permitting Guidebook 'Flush Mount' standard are explicitly favored (they skip the building-height confirmation step) 80% · ordinance

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

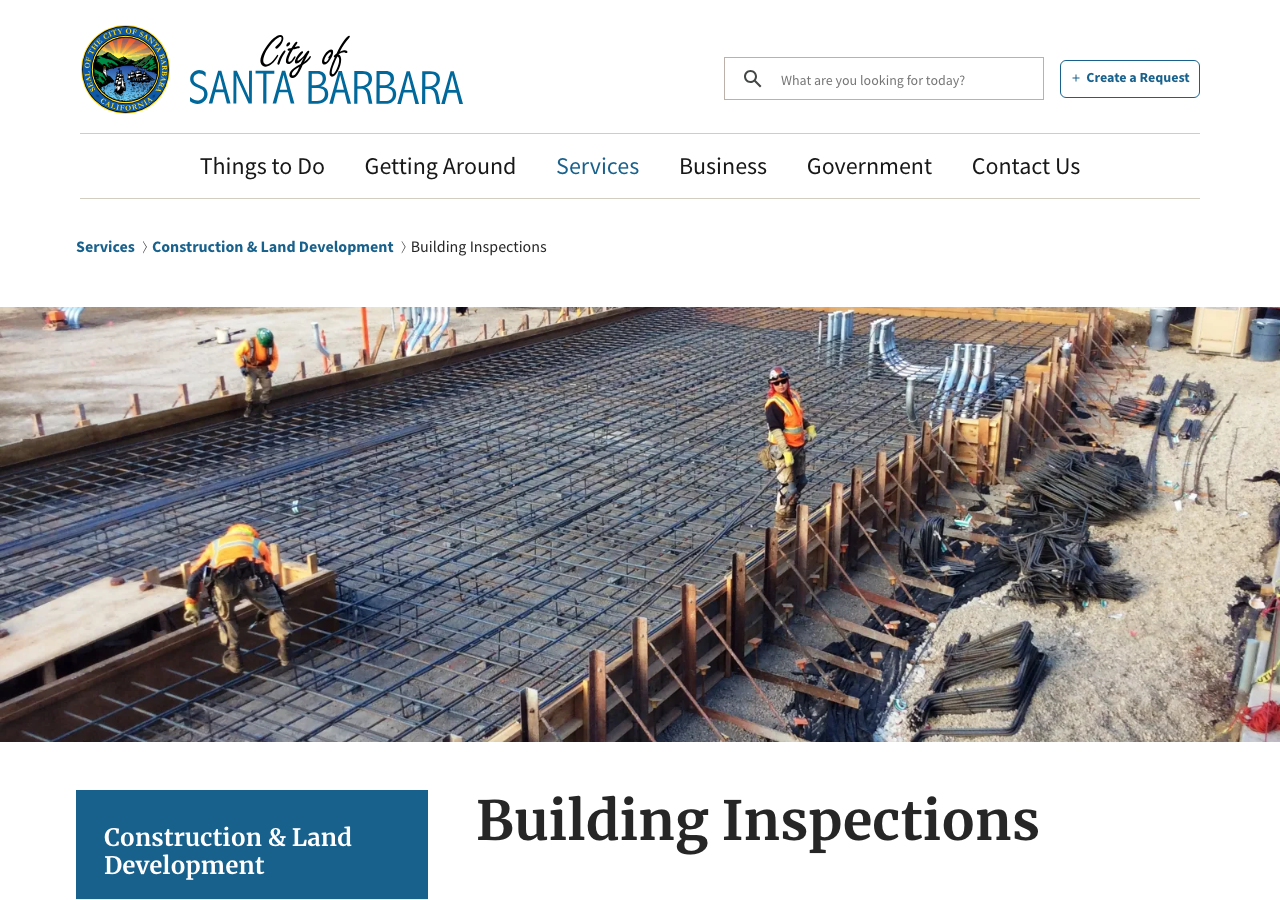

• How is an inspection booked? Portal 95% · department page
• How much notice is required? Same day, if requested by 6:00 a.m. 90% · department page
• Are same-day or AM/PM windows offered? No selectable AM/PM window; the assigned inspector calls the applicant between 7:00 and 8:30 a.m. on the day of inspection to coordinate 85% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 85% · ordinance
• If delegated, to whom? N/A -- not delegated; performed in-house by Community Development's Building & Safety Division, with the Fire Prevention Bureau consolidating into the same visit only when a fire inspection is independently required 80% · ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For qualifying small residential rooftop PV: a single consolidated final building inspection (combined with fire inspection if one is separately required). Larger/non-qualifying systems follow the standard CBC inspection sequence (e.g., framing/rough electrical, then final). 80% · ordinance
• Is a rough-in or mid-roof inspection required? No, for qualifying small residential rooftop PV (one final inspection only); may be required for larger/non-qualifying systems under standard CBC inspection sequencing 75% · ordinance

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes, referenced by name, though the current document itself was not independently located at a live URL 60% · ordinance
• What must be on site at inspection? Approved/stamped plans (or the online permit record) and the issued permit must be available on site, per standard CBC administrative provisions adopted by reference 65% · adopting ordinance / inference
• Does the inspector verify labels and listings? Yes (implied by standard building-inspection practice) 55% · inference from department handout

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (a 'Final Building Inspection Passed' status, which serves as the Certificate of Occupancy for residential projects) 90% · department page
• Is there a re-inspection fee? $225 95% · fee schedule
• How are corrections issued and cleared? Corrections are issued as a 'Corrections' letter PDF attached to the permit record in Accela Citizen Access; applicants view/resubmit through ACA and the same reviewing staff recheck the resubmittal until approved 90% · department guide
