City of Santa Fe Springs

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · municipal code
• What does this authority permit itself, and what does it delegate? Both 85% · council agenda item (site-search snippet)
• Is a permit required for a residential rooftop PV system? Yes 95% · municipal code
• Is there a separate electrical permit, or is it combined? Combined 70% · permit application form
• Is a HOA or architectural approval required first? No (for a single-family residence) 75% · municipal code
• Is there a historic-district review? No 85% · municipal code (full TOC walk)
• Is a wind or windstorm certification required? No dedicated wind/windstorm certification found 55% · department page
• Is a Specific Use Permit or Council approval ever required? Yes, conditionally 85% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC / 30 kW thermal — this is an ELIGIBILITY GATE for the ministerial/expedited Part 1A ordinance, not an absolute size cap. Larger systems fall outside the 'Small Residential Rooftop Solar Energy System' definition and would be reviewed under the discretionary use-permit/site-plan process instead. 90% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 90% · permit application form
• Must the contractor be registered with this authority before applying? No 55% · permit application form
• Is a homeowner permitted to self-install and self-permit? Yes 90% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? No dedicated PV submittal checklist is published. General flow (per the city's 'Building Permit Process' handout): plot plan + floor plan + roof plan to Planning for zoning clearance, then plans to Building & Safety for plan check via the Plan Submittal Portal. SFSMC §155.033(D) REQUIRES the Building Official to promulgate a standard plan/checklist for small residential rooftop solar conforming to the CA Solar Permitting Guidebook, but no such document could be found on the Building Forms page or via a 44-hit sitewide search for 'solar' (positive control 'solar'=44 hits incl. unrelated docs; fabricated control 'zzqqx'=0 hits, confirming search works). 55% · department handout + ordinance
• How many copies, and in what format? Digital/electronic only, via the city's Plan Submittal Portal (Transtech eplansoftreview.com) 85% · department page
• Is a site plan required, and what must it show? Yes, a plot plan is required as part of the general building-permit process (shows zoning compliance for the parcel); no PV-specific site-plan content list is published. 55% · department handout
• Is a structural PE stamp required, and at what threshold? Not solar-specific. General amendment SFSMC §150.004.001 (CRC R301.1.3.2) requires a CA-licensed architect/engineer stamp for wood-frame dwellings more than one story (Seismic Design Category D0/D1/D2/E) or more than two stories (Category A/B/C); the Building Official otherwise has discretion under §150.001.002 to require stamped plans for any project. 55% · municipal code

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? Transtech 'Plan Submittal Portal' (gopost-transtech.eplansoftreview.com, portal=santafesprings) for plan check; a separate JotForm (santafesprings.jotform.com) for inspection requests 90% · department page
• Can the whole application be completed online? Partially / conflicting evidence 65% · department page (conflicts with Building page)
• What does a residential solar permit cost? No single PV-specific dollar figure. Components: Building permit fee is valuation-based (Table 1A, e.g. ~$110-$650+ for a typical $10k-$25k residential PV valuation) plus 85% plan-check fee; Electrical permit fee is tiered by inverter/equipment kW rating under the 'Power Apparatus' schedule ($33.42 for >3-10kW, $77.25 for >10-50kW, etc.) plus 70% plan-check fee; separately, Fire-Rescue charges a flat $220 'Residential Solar Panel' plan-review fee. 75% · fee schedule
• How is the fee calculated? Valuation 80% · fee schedule
• Is there a separate plan-check fee? Yes 90% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 3 business days (or same-day for over-the-counter applications using the standard plan) 90% · municipal code
• How long is an issued permit valid before it expires? 365 days (1 year) from issuance before work must commence, or before a required inspection lapses; extendable in increments of up to 180 days, maximum 2 years cumulative 90% · municipal code
• Which utility handles interconnection here? Southern California Edison (SCE) 90% · department FAQ page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2025 California Electrical Code (based on the 2023 NEC) 95% · municipal code
• Which building code edition is in force? 2025 California Building Standards Code family: 2025 CBC, 2025 CRC, 2025 CPC, 2025 CMC, 2025 CGBSC (Green Building), 2025 California Energy Code, 2025 CEBC 95% · municipal code
• Which fire code edition is in force? 2025 California Fire Code, based on the 2024 International Fire Code 95% · municipal code
• Are there local amendments to any of the above? Yes — for Building and Fire; not found for Electrical 85% · municipal code
• What is the installation judged against? The 2025 CBC/CRC/CEC/CFC as adopted and locally amended in SFSMC Ch.150 and Ch.93; for the PV system specifically, SFSMC §155.032 requires conformance to the CA Plumbing/Mechanical Code (solar water heating), the CA Electrical Code, IEEE standards, UL/accredited-lab listing, and applicable CPUC safety/reliability rules. 85% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Not locally codified — defaults to the unamended 2025 CFC/2024 IFC pathway and setback provisions 80% · municipal code (control-checked absence)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Not locally addressed; the unamended 2025 CEC (based on 2023 NEC, which contains NEC 690.12) applies by default 60% · municipal code (control-checked absence)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? None specified locally beyond the unamended state code (CEC/CFC placarding sections); no local ordinance names a specific placard for PV service equipment 75% · municipal code (control-checked absence)
• Does the authority specify placard wording of its own? No 80% · municipal code (control-checked absence)
• Does it specify letter height, colour or material? No 80% · municipal code (control-checked absence)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes 85% · municipal code
• Are batteries permitted, and under what conditions? Yes, permitted, but with no residential-specific codified conditions found. Fire-Rescue's own current fee schedule carries a flat 'Battery Energy Storage System' plan-review/permit fee of $560 (undifferentiated by occupancy), and Building's own Permit Worksheet has a dedicated 'ESS (Batteries)' line under the electrical section. 70% · fee schedule + permit application form
• Is there a separate ESS permit or inspection? Effectively yes for fee/tracking purposes, though not documented as a wholly separate permit TYPE 65% · permit application form
• Is a ground mount treated as a structure? Not directly addressed for residential; likely yes by default/inference 55% · municipal code (inference)
• Is there a local rule on service upgrades or busbar sizing? No 80% · municipal code

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

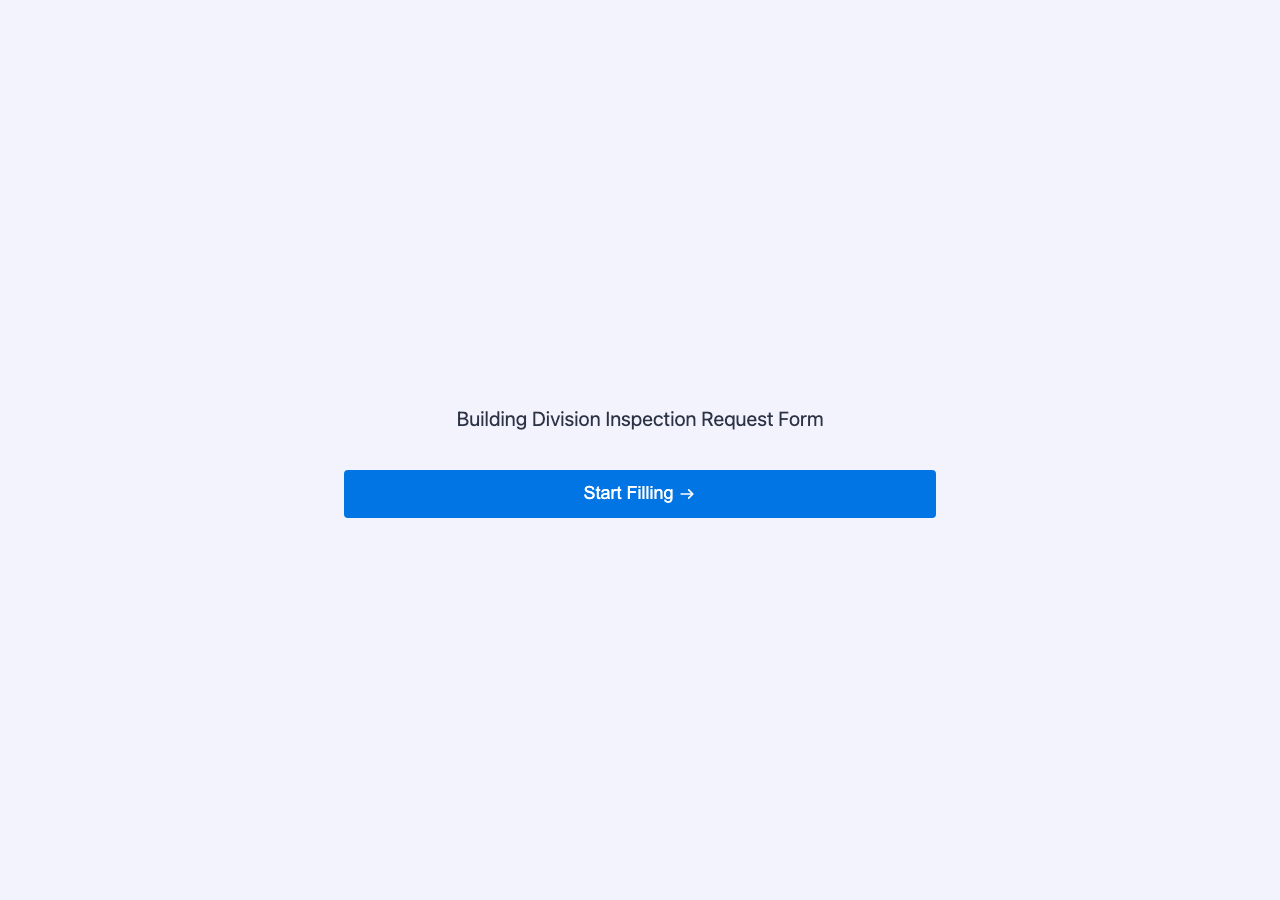

• How is an inspection booked? Portal (JotForm) or Phone 90% · department FAQ page
• How much notice is required? 24 hours 90% · department FAQ page
• Are same-day or AM/PM windows offered? For small residential rooftop solar specifically: a 2-hour inspection window, scheduled within 2 business days of the request 85% · municipal code

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated 75% · council agenda item (site-search snippet)
• If delegated, to whom? Transtech Engineering, Inc. (Building & Safety plan check and inspection); Fire-Rescue's own component is self-performed, not delegated 75% · council agenda item + portal domain

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Per the zoning ordinance, only ONE inspection is required for a small residential rooftop solar system, performed by the Building Department — in apparent tension with Fire-Rescue's own $220 'Residential Solar Panel' plan-review fee and its permit-application checkbox for 'Solar PV Systems - Residential', which imply Fire also reviews these jobs. 80% · municipal code (conflicts with Fire fee schedule/application)
• Is a rough-in or mid-roof inspection required? No 85% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 75% · department page (control-checked absence)
• Does the inspector verify labels and listings? Not explicitly documented, but implied 55% · department FAQ page (inference)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (inspection sign-off); no Certificate of Occupancy is issued for a PV retrofit on an existing dwelling 55% · municipal code (inference)
• Is there a re-inspection fee? Not a fixed dollar figure for solar specifically. General basis: Fire's 'Re-inspection (1 hr. min.)' is billed at the 'Fully allocated hourly rate' (undefined dollar amount); Building's general schedule has 'For inspections for which no fee is specifically indicated, per hour: $164.54' and an electrical 're-inspection resulting from defective workmanship' fee of $55.53. 70% · fee schedule
