City of Soledad

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 88% · department page + fee schedule
• Is a permit required for a residential rooftop PV system? Yes 95% · permit application form
• Is there a separate electrical permit, or is it combined? Combined 82% · permit application form
• Is a HOA or architectural approval required first? No solar-specific HOA/architectural-review requirement is codified; a general Architectural Review Committee process exists for buildings/structures citywide (MCC 17.08.030) with no solar carve-out found, but the CA Solar Rights Act (Civil Code Sec. 714) statutorily preempts any HOA or city aesthetic body from unreasonably conditioning a solar installation regardless. 60% · municipal code
• Is there a historic-district review? No PV-specific trigger or exemption found in the Historic Resources chapter 65% · municipal code
• Is a wind or windstorm certification required? No 78% · municipal code
• Is a Specific Use Permit or Council approval ever required? No standard CUP/Council approval requirement was found for ordinary rooftop PV; MCC 17.08.040's above-height-limit use-permit pathway (for chimneys, cupolas, poles, towers, windmills, etc.) does not list solar collectors among its enumerated eligible structures. 65% · municipal code
• Is there a system-size cap on residential generation? No codified residential system-size cap found. The city's Title 15 (Building Construction) and Title 17 (Zoning) chapters were checked in full and contain no small-residential-rooftop-solar chapter and no kW ceiling; SolarAPP+ (a national program the city has adopted) carries its own eligibility ceiling (38.4 kW AC) for systems routed through that portal, but that is not a local Soledad ordinance. 78% · municipal code (multiple chapters)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 85% · permit application form
• Must the contractor be registered with this authority before applying? Yes 78% · municipal code
• Is a homeowner permitted to self-install and self-permit? Yes 90% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? No dedicated solar checklist is published. The generic package (per the Building & Safety Division page and General Building Permit Information handout) is: a completed Building Permit Application submitted via the SmartGov portal, the plan-review fee, copies of the required plans, and supporting documentation (structural, energy, soils analysis) as applicable to the project. 65% · department page + generic handout
• How many copies, and in what format? Electronic submission via the SmartGov portal is now required for all Building & Planning applications; no paper-copy count is specified for solar. 60% · department page (supersedes a dated handout)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

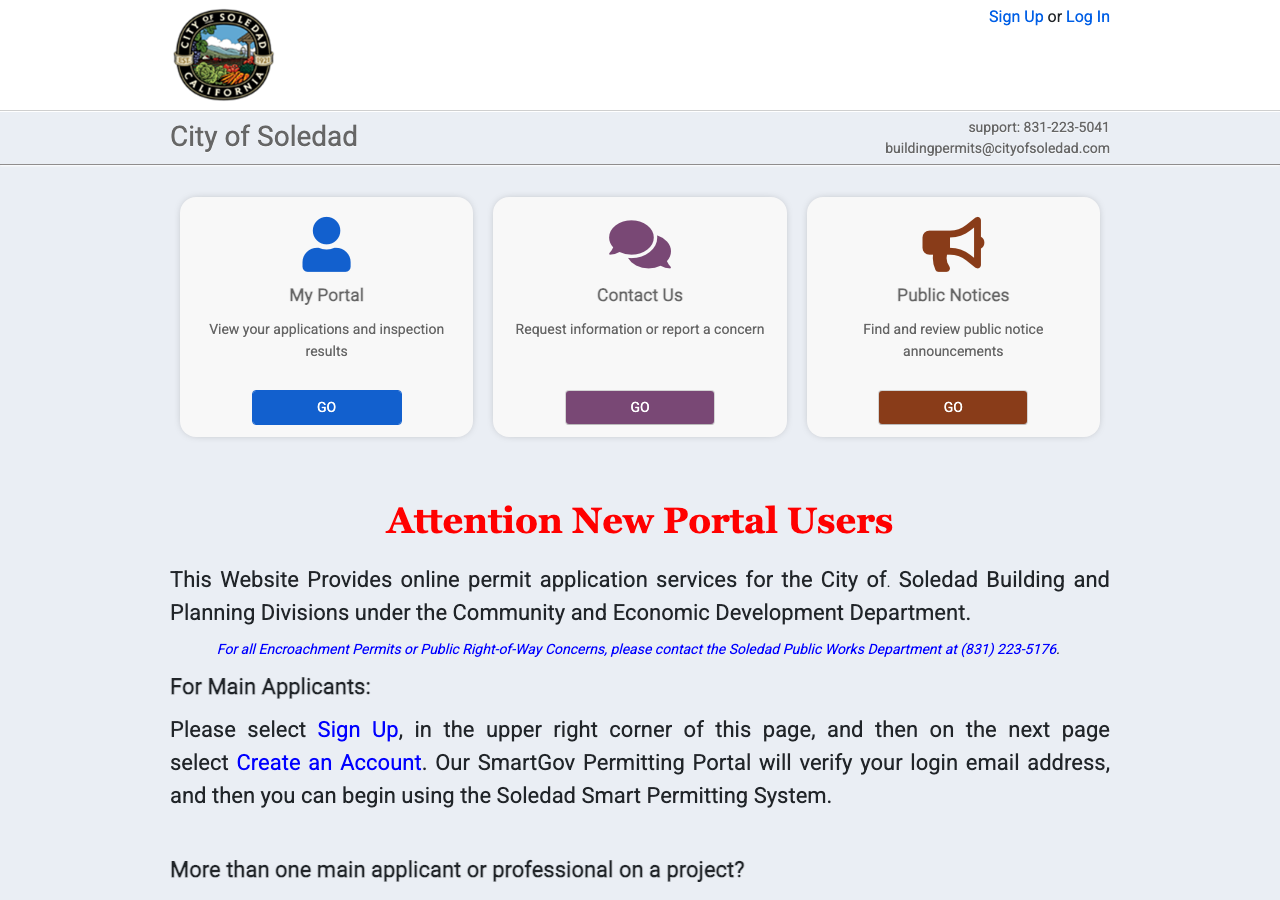

• Which permit portal does this authority use? SmartGov Community (ci-soledad-ca.smartgovcommunity.com) for general Building/Planning permits, with a dedicated 'Solar Permits' button routing to the national SolarAPP+ portal (gosolarapp.org) 95% · department page
• Can the whole application be completed online? Yes 90% · department page
• What does a residential solar permit cost? Valuation-based; example only -- for a representative ~$20,000 residential PV system the City's own Building Valuation Table (FY24/25) computes a base building-permit fee of about $457 (bracket $2,001-$25,000: $98.17 + $19.92 per $1,000 over $2,000), plus Plan Check at 65% of that fee (~$297, contracted to CSG), Combination Office Automation 1.5% (min $2), Document Storage 1.125% (min $1), Training Fee 0.3% (min $2), and State Green Building Fee $1 per $25,000 of value -- roughly $760-$800 all-in for that example valuation. 72% · fee schedule
• How is the fee calculated? Valuation 95% · fee schedule
• Is there a separate plan-check fee? Yes 90% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 4 weeks for a 'minor project', which the handout defines to include a single-family home or residential remodel 65% · department handout (dated Oct 2010, still live)
• How long is an issued permit valid before it expires? 180 days (six months) to begin work from permit issuance; must continue work thereafter to avoid expiration 75% · department handout
• Which utility handles interconnection here? PG&E 90% · adopted budget
• Where does the utility sit in the sequence? After permit 80% · utility tariff (Rule 21)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2020 82% · municipal code
• Which building code edition is in force? 2022 California Building Code (MCC Ch. 15.08, Ord. No. 749, Sec. 2-3, 11-2-2022), still in force -- the 2025 cycle has not been adopted as of the current supplement (through Ord. 772, June 4, 2025) 90% · municipal code
• Which fire code edition is in force? 2022 California Fire Code, with extensive local amendments (MCC Ch. 15.08, Ord. No. 749), including a locally-amended Sec. 1205 signage/marking scheme for PV 90% · municipal code
• Are there local amendments to any of the above? Yes for the Building, Residential, and Fire Codes (each carries numbered local amendments under Ord. 749); No for the Electrical Code, which is adopted by reference with no amendment clause at all 88% · municipal code
• What is the installation judged against? The locally-amended 2022 California Building Code, 2022 California Residential Code, 2022 California Fire Code, and the unamended 2022 California Electrical Code (NFPA 70 2020 NEC), all adopted by MCC Ch. 15.08 88% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? The unamended CFC Sec. 1205.2 pathway/ridge-setback provisions apply, but Amendment 44 DELETES Exceptions 1 and 2 of Sec. 1205.2.1 in their entirety (removing the standard code exceptions that would otherwise reduce the pathway/setback requirement), and Amendment 45 adds a local Hip-and-Valley rule: modules must be at least 1.5 ft from a hip or valley if placed on both sides of it, but may sit directly adjacent if only one side (of equal length) is used. 80% · municipal code

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown is required under NEC 690.12 as part of the (unamended) 2022 California Electrical Code, which the city has adopted by reference with no local modification 70% · municipal code (inference)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Two placards/labels at minimum: (1) a Main Panel Exterior Marking placard on the main service disconnect panel reading 'SOLAR DISCONNECT INSIDE PANEL'; (2) a Circuit Disconnecting Means Marking label adjacent to the inverter/PV circuit breaker reading 'SOLAR DISCONNECT'; plus conditional signage for secondary power sources (batteries/generators) and installer contact information adjacent to the main disconnect. 95% · municipal code
• Does the authority specify placard wording of its own? Yes 95% · municipal code
• Does it specify letter height, colour or material? Yes -- Main Panel placard: red background, white capital letters, minimum 3/4 inch, non-serif font, weather-resistant durable plastic with engraved letters (or other approved material). Circuit Disconnect label: contrasting-color capital letters, minimum 3/8 inch, non-serif font, durable adhesive material (or other approved material). 95% · municipal code
• Does the UTILITY specify placards beyond the AHJ's? Yes -- PG&E Electric Rule 21 Sec. H.1.d requires a visible manual isolating disconnect near the Point of Interconnection with markings/signage clearly indicating open/closed position, capable of being locked open, and (if not adjacent to the PCC) permanent signage describing its location -- a utility-side requirement independent of and in addition to the AHJ's own placards. 82% · utility tariff (Rule 21)
• Where must the labels be placed? Main Panel Exterior Marking placard: permanently affixed to the main service disconnect panel. Circuit Disconnecting Means label: adjacent to the circuit breaker controlling the inverter/PV electrical controller. Secondary Power Source signage: at/near the secondary power source shutoff switch. Installer Information signage: adjacent to the main disconnect. 90% · municipal code

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Are batteries permitted, and under what conditions? Batteries/ESS are contemplated and permitted alongside PV -- the fire code amendment explicitly addresses 'photovoltaic systems interconnected to battery systems, generator backup systems, or other secondary power systems' and requires additional signage identifying the secondary power source shutoff location, but no separate siting, clearance, or capacity conditions are codified locally. 78% · municipal code
• Is there a separate ESS permit or inspection? No dedicated ESS permit or fee line was found; battery/ESS work most likely falls under the same valuation-based 'Solar Panels Applications' building-permit line or the generic 'Fire Permit (Where no specified elsewhere)' hourly line. 60% · fee schedule (absence)
• Is a ground mount treated as a structure? Yes, by inference 62% · municipal code (inference)
• Is there a local rule on service upgrades or busbar sizing? No local busbar-sizing or service-upgrade rule found 82% · municipal code

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal 92% · department page
• How much notice is required? 2 business days 82% · department page
• Are same-day or AM/PM windows offered? No AM/PM window system -- inspections run only in fixed limited blocks: Monday and Friday 8:15-11:00am, and Wednesday 11:00am-2:00pm 88% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 65% · department page (staff directory)
• If delegated, to whom? 4LEAF Inc. 68% · department page (staff directory)

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Published general sequence (not solar-specific): Foundation -> Concrete Slab/Under-Floor -> Roof Sheathing -> Exterior Shear -> Masonry Fireplace -> Framing -> Insulation -> Drywall/Lath -> Building Sewer/Water Services -> Stucco -> Gas Line Air Test -> Final. For a rooftop PV retrofit on an existing dwelling in practice this would typically reduce to a Final inspection only. 60% · department page

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 75% · department page (document list)
• What must be on site at inspection? The city-stamped 'Approved' plans, the permit card, and all prior Correction Notices must be on the job site for every inspection 88% · department page

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 75% · department handout
• Who notifies the utility for PTO? Installer 75% · utility tariff (Rule 21)
• Is there a re-inspection fee? Building: actual cost + 10% in-house admin fee for reinspections under Sec. 305.8. Fire: $179.00 per hour, minimum 1 hour (FY 2024-25), charged only if a reinspection reveals items still not cleared. 88% · fee schedule
• How are corrections issued and cleared? Applicants are notified electronically (via SmartGov) when changes are required. Per the older but still-linked General Building Permit Information handout, the department issues lists of necessary corrections from every reviewing department; minor corrections can be made on the original plans, major changes require correcting the base drawings and resubmitting, and the city's goal is to complete rechecks within two weeks of resubmission. 65% · department handout (dated) + current page
