City of Tracy

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 90% · municipal code
• Is a permit required for a residential rooftop PV system? Yes 95% · department page
• Is there a separate electrical permit, or is it combined? Combined 75% · department page

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 80% · department page
• Must the contractor be registered with this authority before applying? Yes 90% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 85% · department page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Cover sheet (general notes, vicinity plan, owner/designer info, scope of work); rooftop plan (panel/array layout, roof penetrations, firefighter access points/pathways, roof covering description, 3-ft HVAC clearance, ridge/hip/valley lines); building elevations (firefighter access, ESS spacing); existing electrical info (main panel rating, disconnect size, existing circuits, grounding conductor size); new single-line diagram; manufacturer spec/cut sheets for all PV components; complete labeling schedule; clear photos of the open main panel interior, label and busbars; 11x17 sheets; load calcs if breaker de-rated; line-side tap description; module ratings; roof attachment/standoff detail; additional structural calcs above threshold; Title 24 compliance note. A parallel, shorter list applies to solar water heating. 95% · department checklist
• How many copies, and in what format? Electronic only: all drawing sheets combined into one PDF (11x17, properly sorted/oriented) and all supplemental documents combined into a second PDF; emailed to photovoltaic@cityoftracy.org, 25 MB max attachment (use a file-sharing link/Dropbox above that); PDFs must not be locked read-only. 95% · department handout
• Is a site plan required, and what must it show? Yes 95% · department handout
• Is a one-line / three-line diagram required? Yes 95% · department checklist
• Are string and conductor calculations required? Yes 90% · department handout
• Is a structural PE stamp required, and at what threshold? Additional structural details/calculations (beyond the standard roof-attachment detail) are required only if: mounting is anything other than a flat-mount with a 2"-10" standoff gap under each module, or modules extend beyond eaves/gable ends/over hips, or dead load exceeds 4 psf (PV) / 5 psf (solar thermal). 75% · department checklist
• Is an electrical PE stamp required, and at what threshold? Not required for standard center-fed busbar 120%-rule calculations under NEC 705.12(B)(4) ('A California licensed Professional Electrical Engineer seal and signature is not required for calculations for centerfed panels'). No universal threshold above which an electrical PE stamp is required was found. 65% · department design standard

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

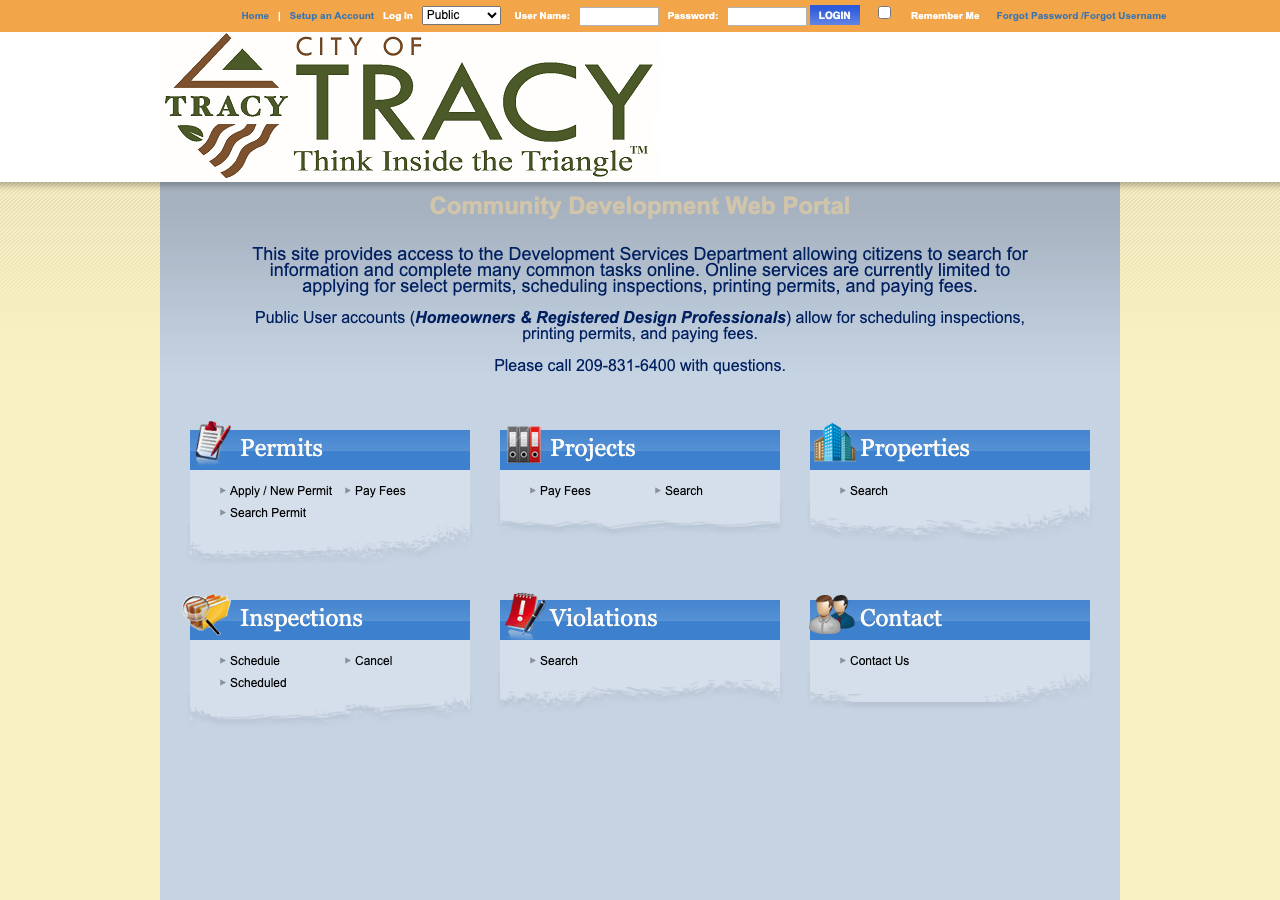

• Which permit portal does this authority use? eTRAKiT (etrakit.cityoftracy.org) 95% · portal landing page
• Can the whole application be completed online? No 80% · department FAQ
• What does a residential solar permit cost? $450 flat (residential, up to 15 kW), plus $15 per kW for any capacity above 15 kW 92% · fee schedule
• How is the fee calculated? Tiered 88% · fee schedule
• Is there a separate plan-check fee? No separate solar-specific plan-check line item was found; the $450/$15-per-kW entry is labeled a single 'State-mandated Fee' and appears to bundle plan check and permit issuance for solar, unlike most other permit types in the schedule which show a distinct plan-check fee row. 55% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 5 business days (goal, not guaranteed) 90% · department handout
• How long is an issued permit valid before it expires? 365 days (12 months) to commence work after issuance, or the permit becomes invalid; also invalid if work is suspended/abandoned 180 days; up to 2 extensions of up to 180 days each may be granted in writing for good cause. 90% · municipal code
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) 95% · department handout

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 85% · municipal code (adopting ordinance)
• Which building code edition is in force? 2025 California Building Code 98% · municipal code (adopting ordinance)
• Which fire code edition is in force? 2025 California Fire Code 95% · municipal code (adopting ordinance)
• Are there local amendments to any of the above? Yes 95% · municipal code
• What is the installation judged against? The 2025 California Building/Residential/Electrical/Fire Codes as locally amended (TMC Title 9), plus the City's own 'Special Conditions for PV Installations' design standard and 'Solar Permitting Checklist'. 90% · department design standard

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Roof access points, setbacks and pathways must be shown on the site plan 'in accordance with CRC R329.6'; the City references but does not restate the numeric CRC R329.6 pathway/setback table itself. 70% · department handout

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required per NEC 690.12. For a standard system without an ESS, microinverters, or series string, the Main Service Disconnect may serve as the rapid-shutdown initiation device (must still meet 690.12(c)). Buildings with mixed rapid-shutdown types require a detailed roof diagram showing the still-energized boundary (690.12(D)(1)). Existing PV without RSD may remain as-is when new PV/battery is added, if the placard clearly identifies the non-compliant array. 92% · department design standard

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? A complete project-specific 'labeling schedule' must be submitted showing every required label/placard and its code section, including at minimum: rapid-shutdown initiation-device/array labeling, ESS disconnect labeling (CEC 706.15(B)), and main-service-panel labeling. No single consolidated citywide placard list beyond these code cross-references was found. 78% · department checklist
• Does the authority specify placard wording of its own? No 68% · department handout
• Is a site plan / facility map placard required, and what must it show? A detailed roof-plan diagram is specifically required where a building has more than one rapid-shutdown type, showing each PV system and a dotted line marking areas that remain energized after rapid shutdown is activated (NEC 690.12(D)(1)); more generally, NEC 705.10 facility-map placarding applies but is not separately restated by the City. 75% · department design standard
• Where must the labels be placed? Locations are documented per-project in the required 'labeling schedule' (e.g., main service panel, rapid-shutdown initiation device, ESS disconnect); no single universal city-stated placement rule beyond referencing the applicable NEC section for each label. 62% · department checklist

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? No formal citywide 'approved equipment list' was found; equipment must be submitted with manufacturer specification/cut sheets (implying standard code-listing), and multiple ESS units spaced less than 3 feet apart specifically require a UL testing report. 60% · department checklist
• Are batteries permitted, and under what conditions? Permitted. Multiple Energy Storage Systems require an elevation drawing showing spacing, plus a UL testing report if units are less than 3 feet apart. A disconnecting means is required per CEC 706.15(B)/(E); a factory-installed disconnect labeled per 706.15(B) is acceptable. The Fire Code classifies lithium-ion batteries as a 'High-hazard' commodity (Table 3203.8), which can trigger additional Fire-Code storage/handling provisions at qualifying quantities. 88% · department design standard + municipal code
• Is there a separate ESS permit or inspection? No -- ESS appears to be reviewed within the same Solar/PV permit rather than under a distinct standalone battery-only permit. 55% · department page
• Is there a local rule on service upgrades or busbar sizing? Center-fed panelboards may be loaded to 120% of busbar rating using 125% of the PV source's output circuit current (per NEC 705.12(B)(4)); a CA-licensed PE seal/signature is explicitly NOT required for this calculation. 90% · department design standard
• Is a specific mounting system or attachment spacing required? Minimum stainless-steel 5/16" lag bolts with 2-1/2" minimum embedment; standard flat-mount standoff height of 2"-10" under each module. Anything outside that (non-flat mount, greater standoff, modules extending past eaves/gable ends/hips, or dead load >4 psf/5 psf) triggers additional structural detailing. 85% · department checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal 95% · department FAQ
• How much notice is required? Effectively 1 business day -- eTRAKiT's Requested Date field 'will always default to next available business day' (other dates can be manually selected, but availability/confirmation is not guaranteed). 70% · department handout
• Are same-day or AM/PM windows offered? Yes, with caveat 88% · department handout

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated 80% · municipal code
• If delegated, to whom? South San Joaquin County Fire Authority 90% · municipal code

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

Nothing recorded for City of Tracy on this step yet — 2 questions checked and found unpublished. The guidance above is general.

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 90% · department checklist
• What must be on site at inspection? Someone 18 years or older must be present to provide access (inside the residence, rear yard, ladder, and clear obstructions); an approved permit/inspection card is standard practice for on-site verification though not explicitly restated on this page. 68% · department FAQ
• Does the inspector verify labels and listings? Likely yes, but not explicitly stated as an inspection-day checklist item. 55% · department checklist

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final inspection sign-off (permit card approval). A Temporary Certificate of Occupancy (TCO) or Certificate of Occupancy (CofO) process also exists but is a general process (new construction/occupancy-affecting work) rather than solar-specific; solar retrofits on existing homes would typically only need a passed final inspection, not a new CofO. 58% · department FAQ
• Is there a re-inspection fee? $111 for the first half hour (hourly rate), additional time billed hourly in 1/4-hour increments 72% · fee schedule
