City of Vacaville

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 90% · adopting ordinance
• Is a permit required for a residential rooftop PV system? Yes 98% · department page
• Is there a separate electrical permit, or is it combined? Combined 92% · adopting ordinance
• Is a Specific Use Permit or Council approval ever required? Ground-mounted systems require Planning Division review/approval (zoning) before a building permit can issue; no Council/SUP approval is described for typical roof-mount residential PV. 85% · published handout
• Is there a system-size cap on residential generation? No hard kW cap for the online/expedited process ('of any KW size'); the local ordinance's 'small residential rooftop solar energy system' definition (which is what qualifies for the expedited/ministerial path) is capped by structure type (single/duplex-family dwelling or residential accessory structure) and by not exceeding the maximum legal building height, not by a kW number. 75% · adopting ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 82% · adopting ordinance
• Must the contractor be registered with this authority before applying? Yes 88% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 78% · published form list

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Roof/site plan (panel location, street/front-of-parcel orientation); elevation view (finished array height); electrical line diagram (existing main/subpanel amperage, main OCPD, proposed breaker sizes, load calcs if derating); manufacturer specs for inverter and panels; connection/attachment details (panel-to-rail-to-support-to-foundation) with the manufacturer's installation manual and wind-zone span/anchorage tables; structural and electrical 'standard engineering evaluation' self-certifications. 90% · published handout
• Is a site plan required, and what must it show? Yes — a roof plan identifying panel location on the roof and the location of the street relative to the front of the parcel (for orientation). 85% · published handout
• Is a one-line / three-line diagram required? Yes 90% · published handout + adopting ordinance
• Are string and conductor calculations required? Yes, when applicable 78% · adopting ordinance
• Is a structural PE stamp required, and at what threshold? No formal PE stamp threshold is stated. The ordinance requires the applicant, at their own cost, to self-verify structural adequacy 'through standard engineering evaluation techniques' (§15.20.250.102(D)(4)(a)); a licensed third-party (e.g., UL) panel re-certification LETTER is required only if the original nameplate bus-bar rating is no longer available. 78% · published handout + ordinance

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

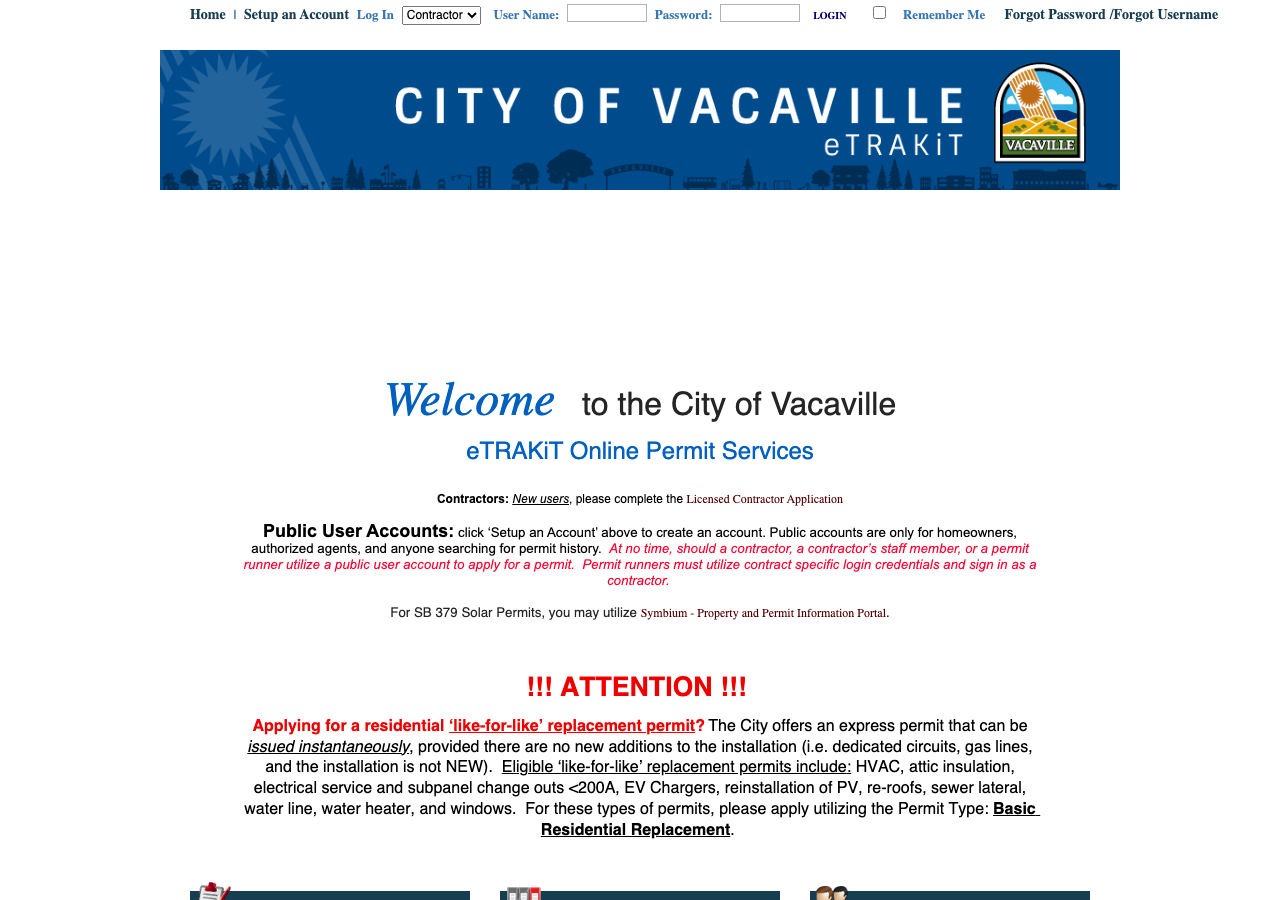

• Which permit portal does this authority use? eTRAKiT (City of Vacaville Community Development portal) 95% · portal landing page
• Can the whole application be completed online? Yes 92% · department page

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 5 business days for the City to issue a written correction notice if a solar application is deemed incomplete; no separate published number found for a complete application's plan-review turnaround. 72% · adopting ordinance
• How long is an issued permit valid before it expires? Work must commence within 12 months of issuance (or be suspended/abandoned no longer than 12 months), with Building-Official-approved extensions of up to 180 days at a time, not exceeding 2 calendar years total. A permit APPLICATION (pre-issuance) is deemed abandoned after 180 days with one 180-day extension allowed. 90% · adopting ordinance
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) 92% · utility territory page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 82% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code / California Residential Code (2025 Triennial Edition, Title 24), locally adopted by Ord. 2006, effective 11/19/2025. 88% · adopting ordinance
• Which fire code edition is in force? 2025 California Fire Code (Title 24, Part 9), adopted under the same Ord. 2006 (11/19/2025). 78% · adopting ordinance
• Are there local amendments to any of the above? Yes 95% · adopting ordinance
• What is the installation judged against? The locally-amended 2025 California Building/Residential/Electrical Code (Title 24), as adopted by Ord. 2006 (11/19/2025). 85% · adopting ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Vacaville on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Rapid shutdown is required as a function of the adopted 2023 NEC (Art. 690.12) via the 2025 California Electrical Code; no local amendment altering or exempting rapid shutdown was found in the CEC amendment section reviewed (§15.20.256.020). 55% · adopting ordinance (inferred)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

Nothing recorded for City of Vacaville on this step yet — 6 questions checked and found unpublished. The guidance above is general.

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes, in substance — solar electricity-producing systems must meet CEC, IEEE, and accredited testing-laboratory (e.g., UL) standards and, where applicable, CPUC safety/reliability rules; water-heating solar systems must be certified by an accredited listing agency under the CA Plumbing/Mechanical Code. 75% · adopting ordinance
• Are batteries permitted, and under what conditions? Yes — the City's eTRAKiT permit type is explicitly named 'Residential Solar and Battery Storage,' with its own contact line (707-449-5140); specific fire-code/ESS conditions were not captured in this session's sources. 62% · department page
• Is there a separate ESS permit or inspection? No — batteries appear to be permitted under the same combined 'Residential Solar and Battery Storage' application/permit rather than a separate ESS permit, consistent with the citywide single-permit rule for residential electrical/mechanical work. 55% · published form list (inference)
• Is a ground mount treated as a structure? Yes 88% · published handout
• Is there a local rule on service upgrades or busbar sizing? Yes — nameplate bus-bar ratings must be identified in the electrical line diagram; where the nameplate rating is no longer available, a registered third-party (e.g., UL) panel re-certification letter is required before the service panel can be reused (or it must be replaced). 85% · published handout
• Is a specific mounting system or attachment spacing required? Yes — rail spans/anchorage must be designed to the City's specific wind-load requirements and manufacturer's installation manual, with distinct span tables required for flush-mount vs. tilted arrays. 90% · published handout

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal (eTRAKiT), Phone (IVR at 707.317.1070), or Text (SelecTXT at 866.752.4311) 95% · department page
• Are same-day or AM/PM windows offered? Yes — AM preference (8:00 AM–12:00 PM) or PM preference (12:00 PM–3:30 PM); not guaranteed, and applicants must be available 8:00 AM–3:30 PM. 90% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 88% · adopting ordinance
• If delegated, to whom? N/A — not delegated; performed by the City Building Official (occasionally jointly with the City Fire Marshal for solar). 85% · adopting ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

Nothing recorded for City of Vacaville on this step yet — 2 questions checked and found unpublished. The guidance above is general.

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 80% · department page
• What must be on site at inspection? The building permit, approved plans, and supporting documentation must be on site; 'No inspections will be conducted without these required documents.' 95% · department page
• Does the inspector verify labels and listings? Not stated explicitly, but implied — the ordinance requires equipment to meet CEC/IEEE/UL/testing-lab standards, which the final inspection would need to verify. 55% · adopting ordinance (inferred)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

Nothing recorded for City of Vacaville on this step yet — 4 questions checked and found unpublished. The guidance above is general.
