City of Walnut Creek

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes. 95% · authority's own page
• What does this authority permit itself, and what does it delegate? Both (Building and Electrical, combined into one unified permit for single-family/duplex PV). Fire life-safety review/inspection is held separately by Contra Costa County Fire Protection District (Con Fire), but IB-025 states Con Fire performs NO separate review/inspection for eligible small residential PV systems (city just sends notice). 88% · fee schedule + authority's own bulletin
• Is a permit required for a residential rooftop PV system? Yes. 95% · authority's own page
• Is there a separate electrical permit, or is it combined? Combined. 95% · fee schedule
• Is a HOA or architectural approval required first? No dedicated HOA/architectural-approval precondition was found for rooftop PV. The city's Design Review process (Ministerial/Objective/Discretionary) is triggered by new dwelling-unit construction or additions requiring a legislative amendment — a rooftop PV retrofit on an existing home is not among its listed triggers. 60% · authority's own page — absence
• Is a wind or windstorm certification required? No wind/windstorm certification requirement was found on any city solar, building-code, or fee-schedule page reviewed — consistent with Walnut Creek's inland (non-coastal) location, where this is not a typical California requirement. 50% · authority's own bulletin — absence
• Is a Specific Use Permit or Council approval ever required? Not found required for a standard residential rooftop PV system. No Specific Use Permit, Conditional Use Permit, or City Council approval step appears on the Solar/Electrical page, IB-025, or the Design Review page for PV specifically. 55% · authority's own page — absence
• Is there a system-size cap on residential generation? No blanket system-size cap. The city's expedited/streamlined permitting path (from IB-025) is limited to systems of 10 kW AC (CEC rating) or less, roof-mounted on a one/two-family dwelling, without battery storage, and within height limits — but systems above that threshold are not prohibited, only routed to standard (non-expedited) plan review. 68% · authority's own bulletin

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either — the property owner or a California-licensed contractor. 85% · authority's own page
• Must the contractor be registered with this authority before applying? No dedicated city contractor-registration requirement was found beyond the state CSLB license implied by the FAQ's 'California licensed contractor' language. Contractors doing business in the city may separately need the city's general Business License (a business-tax registration, not a permit-eligibility gate), but no page found ties that to permit issuance. 55% · authority's own page — absence
• Is a homeowner permitted to self-install and self-permit? Yes. 82% · authority's own page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per Information Bulletin IB-025 ('Submittal Requirements for Photovoltaic Array Systems'): (1) Plot Plan/Title Sheet (address, owner, existing buildings, setbacks, easements, panel locations, output capacity in kW); (2) Construction Plans (roof/structure plan showing PV layout and attachment, elevations showing electrical equipment locations); (3) Battery Bank plan if applicable; (4) Electrical Plan (one-line diagram, overcurrent protection, module/string counts, inverter make/model, grounding/bonding, equipment cut sheets, CEC 690/705 labeling); (5) Structural Support information (roof covering, framing, weight, attachment method, racking system documentation). 92% · published checklist
• How many copies, and in what format? Not stated for solar specifically in current form. As of 2026 the city states it is 'fully committed to an all-online permitting system' and 'no longer accept[s] paper or emailed permit applications' — so submittal is now digital-only via the Accela portal. The 2018 IB-025 bulletin (still the linked solar checklist) predates this shift and does not specify a copy count for solar; the related 2021 battery-storage bulletin PB-074 specifies 'Minimum plan size is 11”x17”, 3 full sets of plans and 2 sets of supporting documents' — a physical-submittal instruction that the 2026 online-only policy appears to have superseded. 55% · authority's own page — dated bulletins conflict with current practice
• Is a site plan required, and what must it show? Yes — a Plot Plan/Title Sheet showing: property address and owner; all existing buildings/accessory footprints; trees and drip lines; private sewer/septic and well locations; parcel property lines; setbacks; north arrow; easements; PV panel locations; and system output capacity in kW. 92% · published checklist
• Is a one-line / three-line diagram required? Yes. 95% · published checklist
• Are string and conductor calculations required? Effectively yes — the electrical plan must show total module count, modules per string, total strings, and conductor type/size/conduit sizing for every circuit segment, though IB-025 does not use the word 'calculations' as a separate line item. 68% · published checklist — inference
• Is a structural PE stamp required, and at what threshold? No blanket dollar/size threshold is published. IB-025's Structural Support section requires engineering documentation only conditionally: 'Where a listed or engineer-designed racking system is used, provide documentation showing manufacturer... maximum allowable weight... and product evaluation information or structural design for the rack system' — otherwise a listed racking system's own ICC-ES/manufacturer evaluation report substitutes for a project-specific PE stamp. 58% · published checklist
• Is an electrical PE stamp required, and at what threshold? For most residential systems, no PE stamp is required if a licensed C-10 electrical contractor designs and signs the drawings; a registered electrical engineer's stamp is an alternative path. IB-025: 'the City of Walnut Creek requires that the system be designed by a registered electrical engineer or licensed electrical contractor, except small residential rooftop solar energy system' (i.e., systems meeting the city's ≤10kW-AC/roof-mount/no-battery streamlined criteria are exempt even from that design-professional-of-record requirement). 78% · authority's own bulletin

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

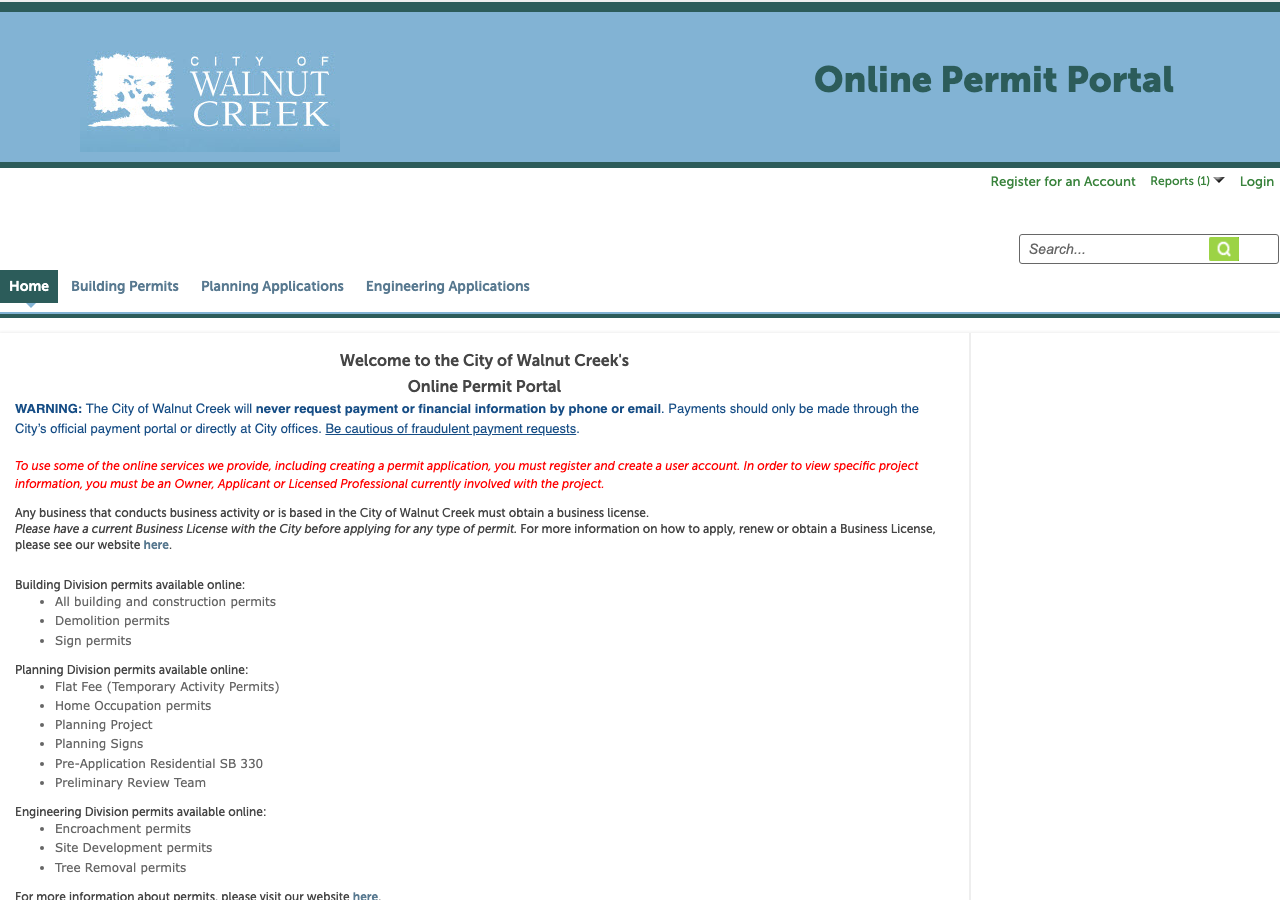

• Which permit portal does this authority use? Accela Citizen Access (the city's 'ACA Portal', aca-prod.accela.com/WC). 92% · authority's own page
• Can the whole application be completed online? Yes. 92% · authority's own page
• What does a residential solar permit cost? $280.00 flat (FY2026 and FY2027) for a Single Family and Duplex Residential solar PV system. 95% · published fee schedule
• How is the fee calculated? Flat, for single-family/duplex residential (unified $280 permit). Multi-family/non-residential PV instead uses a tiered valuation formula (A + Bx, A=$419.12 fixed + $0.0832/sq ft of panel area). 95% · published fee schedule
• Is there a separate plan-check fee? No — the $280 fee is explicitly a unified permit that already includes plan checking. 90% · published fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 3–7 business days for the ministerial/'over-the-counter' path that a standard single-family solar permit falls under (per the current Turnaround Times page). The city's older IB-025 bulletin cites a more specific 3-business-day turnaround for electronic applications meeting its small-residential streamlined-PV criteria. 75% · authority's own page
• Which utility handles interconnection here? PG&E (Pacific Gas and Electric Company) is the interconnecting/wires utility. MCE (Marin Clean Energy, operating as 'MCE Clean Energy') is the default Community Choice Aggregation generation provider for Walnut Creek accounts, per the city's own Solar Incentives page, but MCE does not own the distribution wires or process the physical interconnection application — that remains PG&E's role under the standard CA CCA/IOU split. 82% · authority's own page + authority's own bulletin
• Where does the utility sit in the sequence? Parallel, functionally — the interconnection application to PG&E can be filed alongside city permitting, but energization/Permission to Operate is withheld until after IB-025's required city final inspection AND PG&E's written interconnection authorization are both in hand. 62% · authority's own bulletin — inference

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC, adopted as the basis of the 2025 California Electrical Code, effective for all permit applications submitted on or after January 1, 2026. 96% · adopting regulation — authority's own page
• Which building code edition is in force? 2025 California Building Code (based on the 2024 International Building Code with State amendments), effective for permit applications from January 1, 2026. 96% · adopting regulation — authority's own page
• Which fire code edition is in force? 2025 California Fire Code (based on the 2024 International Fire Code with State amendments), per the city's own Building Codes page, effective January 1, 2026 — but Contra Costa County Fire Protection District's own 'Construction and Permitting' page has not yet been updated and still cites the 2022 California Fire Code under 'Ordinance No. 2022-34, Section 105.7.' This is a live code-cycle contradiction between the two authorities' own pages, not resolved here. 68% · adopting regulation — conflicting authority pages
• Are there local amendments to any of the above? Yes — local amendments exist on both the building and fire sides. The Master Fee Schedule cites 'Section 9-0.5.302b of the City of Walnut Creek Municipal Code' as the local plan-review-fee authority, and Con Fire's own page cites 'Contra Costa County Fire Protection District Ordinance No. 2022-34, Section 105.7' amending the Fire Code. Content of the amendments could not be independently confirmed: Walnut Creek's municipal code is hosted on eCode360 (client WA4684 per codepublishing.com's redirect notice), but eCode360 returns a Cloudflare 'Just a moment...' challenge page (HTTP 403) to both a plain fetch and a fetch carrying the iccsafe.org Referer header, and no Wayback Machine capture of ecode360.com/WA4684 exists (confirmed via direct CDX query, zero results). 68% · fee schedule + fire-district page — amendment content unconfirmed
• What is the installation judged against? The currently applicable California Electrical Code (2023 NEC-based, 2025 CEC), per IB-025: 'The design and installation must meet the currently applicable California Electrical Code provisions (based on the National Electrical Code).' Inspection is additionally checked against CEC Sections 690 and 705 specifically, per IB-025's own inspection checklist. 85% · authority's own bulletin

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Access pathways are required 'by the California Building and Fire Codes' per the city's own bulletin, which does not restate the dimensional ridge-setback table itself (that content lives in the copyrighted CFC/CRC text, not reproduced on any Walnut Creek page found). 55% · authority's own bulletin — dimensions unretrievable

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes — NEC 690.12 rapid shutdown applies under the 2023 NEC as adopted via the 2025 California Electrical Code, in force for all permit applications from January 1, 2026. Not restated by article/section number in any Walnut Creek-specific bulletin found, but the battery-storage bulletin PB-074 independently requires plans to 'Show location and/or method of rapid shutdown initiation of the storage battery system,' confirming the requirement is enforced in practice. 78% · adopting regulation + authority's own bulletin — inference

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? At minimum: (1) a DC-disconnect sign identifying PV power-source system attributes; (2) an AC point-of-connection sign; (3) a sign identifying the alternative-power-system switch (all per IB-025's inspection checklist); (4) a plaque at the main service panel indicating the type and location of all power sources on/in the building, per CEC 705.10 (per battery bulletin PB-074); and (5) where a line/supply-side tap is used, PG&E's own required 'engraved placard (signage), indicating there is a line/supply side connection... installed on the metering equipment' (per PG&E's TD-7001M Greenbook, §6.3.3.a). 85% · authority's own bulletin + utility manual
• Does the authority specify placard wording of its own? No — the city references the NEC/CEC-mandated signage content (CEC 690/705, 705.10) rather than authoring its own custom placard wording. 62% · authority's own bulletin — absence
• Is a site plan / facility map placard required, and what must it show? Yes — a plaque/placard at the main service panel indicating the type and location of all power sources on or in the building is required, per CEC 705.10 as cited in the city's own battery-storage bulletin PB-074. 85% · authority's own bulletin
• Does the UTILITY specify placards beyond the AHJ's? Yes — PG&E's Greenbook (TD-7001M) requires an additional 'engraved placard (signage), indicating there is a line/supply side connection... installed on the metering equipment' whenever a fusible AC disconnect is installed ahead of the main breaker (a line/supply-side tap), on top of whatever the AHJ's own building/fire-code signage requires. 85% · utility manual
• Where must the labels be placed? At the DC disconnect, at the AC point of connection, and at the alternative-power-system switch (IB-025); a plaque at the main service panel (PB-074/CEC 705.10); and, for line-side-tap installations, an engraved placard on the metering equipment itself (PG&E Greenbook). 82% · authority's own bulletin + utility manual

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? The AC disconnect must sit downstream of (after) the revenue meter and upstream of (ahead of) the main breaker for a line/supply-side-tap connection; it is not required at all for a single-phase, self-contained/socket-based meter panel rated 320A or less serving an inverter-based generator (unless it is a K-base meter panel, which always requires one), per PG&E's Table 6-3. 85% · utility manual
• Must equipment be on a specific approved list? Yes. 90% · authority's own bulletin
• Are batteries permitted, and under what conditions? Yes, under detailed conditions set out in the city's own Policy Bulletin PB-074: ESS must comply with CRC §R327 (exception for UL 9540-listed systems under 1 kWh); may only be installed in detached garages/accessory structures, attached garages separated per CRC R302.6, outdoors 3+ feet from doors/windows, or enclosed utility spaces with fire-rated finish (5/8" Type X gypsum where wood-framed); is barred from sleeping rooms and habitable spaces; requires 3-foot unit spacing (or documented large-scale fire-test clearance); requires smoke/heat alarms per CRC R314; and requires impact protection where subject to vehicle damage. 92% · authority's own bulletin
• Is there a separate ESS permit or inspection? Not a separate PERMIT type at the city Building Division (folded into the same solar/electrical plan-review submittal per PB-074, and the Master Fee Schedule has no distinct ESS fee line item — only 'Solar'). However, Contra Costa County Fire Protection District DOES bill a distinct, separate 'Energy Storage System' plan review: 'Battery Systems/Energy Storage — minimum fee $944.00' plus a 'UL9540A Review — minimum fee $516.00' — with no equivalent standalone PV-only line item anywhere in the same fee schedule. 78% · fire district fee schedule
• Is there a local rule on service upgrades or busbar sizing? Yes, in effect — IB-025's own inspection checklist restates the NEC/CEC 120%-rule for busbar loading: 'Sum of the main OCPD and the inverter OCPD is rated for not more than 120% of the buss bar rating.' This is a restatement of the national code provision (CEC/NEC 705.12(B)(3)(2)) rather than a Walnut-Creek-specific amendment, but it is the city's own stated inspection criterion. 75% · authority's own bulletin
• Is a specific mounting system or attachment spacing required? No fixed universal spacing table is published. IB-025 requires project-specific documentation of the mounting/attachment method (roof plan showing PV layout and attachment locations, framing plan/details for any roof-strengthening work, and — where a listed racking system is used — the manufacturer's maximum-load and attachment-method documentation) rather than specifying a citywide spacing standard. 58% · authority's own bulletin

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? All three: Portal (Accela, once linked to the project), Phone (voicemail line), and Email. 92% · authority's own page
• How much notice is required? Effectively overnight/next-day: 'You have until midnight to schedule an inspection for next day service.' Online requests can also be placed up to 5 days in advance. 85% · authority's own page
• Are same-day or AM/PM windows offered? No AM/PM window is offered or mentioned. Inspections occur the business day after they are requested (not same-day), and the applicant must call a confirmation line between 8:00–8:30am the morning of the inspection to confirm the timeframe. 80% · authority's own page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes. 82% · authority's own page + authority's own bulletin
• If delegated, to whom? Not delegated for standard residential rooftop PV — held by the city's own Building Division. Contra Costa County Fire Protection District (Con Fire) is notified but, per IB-025, performs no separate review/inspection for eligible small residential PV; Con Fire's own fee schedule shows it separately bills only for Energy Storage System (battery) reviews, not plain PV. 75% · authority's own page + fire district fee schedule

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For eligible small residential PV (≤10kW AC, roof-mount, no battery, per IB-025's streamlined criteria): a single consolidated final inspection by the Building Division. Sequencing for larger/non-eligible systems is not separately published. 68% · authority's own bulletin
• Is a rough-in or mid-roof inspection required? Not required for eligible small residential PV — IB-025 describes a single consolidated final inspection, with no rough-in or mid-roof stage mentioned. 65% · authority's own bulletin — absence

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes. 88% · authority's own bulletin
• What must be on site at inspection? Not itemized as a standalone 'bring this to your inspection' list, but IB-025's inspection checklist implies the approved plans and equipment specification sheets must be available on site, since the inspector checks that 'Number of PV modules and model number matches plans, and specification sheets.' 55% · authority's own bulletin — inference
• Does the inspector verify labels and listings? Yes. 88% · authority's own bulletin

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Not explicitly named on any Walnut Creek page found (no 'CO', 'Final', or 'Green Tag' terminology used specifically for a solar addition to an existing single-family home). By inference from standard California building-permit practice for an alteration to an existing residence, this would be a 'Final' inspection sign-off rather than a new Certificate of Occupancy. 50% · authority's own page — inference
• Who notifies the utility for PTO? Not explicitly stated by the city. Standard California NEM practice, consistent with IB-025's own language that 'PG&E customers must not interconnect... until they receive written authorization from Pacific Gas and Electric Company,' is that the installer/customer submits the interconnection application and requests Permission to Operate from PG&E once the city's final inspection is complete. 50% · authority's own bulletin — inference
• Is there a re-inspection fee? $215.00 (FY2026) / $225.00 (FY2027) per additional inspection. 85% · published fee schedule
