City of Waterford

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · authority's own department page
• What does this authority permit itself, and what does it delegate? Both 85% · authority's own staff directory + application form
• Is a permit required for a residential rooftop PV system? Yes 95% · authority's own department page
• Is there a separate electrical permit, or is it combined? Combined 75% · fee schedule
• Is a wind or windstorm certification required? No 60% · inference from CA building-code structure; no CA-specific wind-cert program exists
• Is a Specific Use Permit or Council approval ever required? No, not for a standard residential rooftop system 55% · state law inference; local zoning chapter inaccessible
• Is there a system-size cap on residential generation? No city zoning cap found; MID (the utility) caps interconnected system size at 115% of the customer's demonstrated annual electrical load (or, absent load history, 2 W/sq ft), per its NEM 2.0 tariff 75% · utility interconnection handbook

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 60% · authority's own application packet
• Must the contractor be registered with this authority before applying? Yes 85% · authority's own department page
• Is a homeowner permitted to self-install and self-permit? Yes 80% · authority's own application packet

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• Is a site plan required, and what must it show? Yes — a site/plot plan showing the layout of the panels, inverter, disconnects, meter, placards, and any gates/obstructions relative to the dwelling 70% · utility interconnection handbook
• Is a one-line / three-line diagram required? Yes 65% · utility interconnection handbook

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

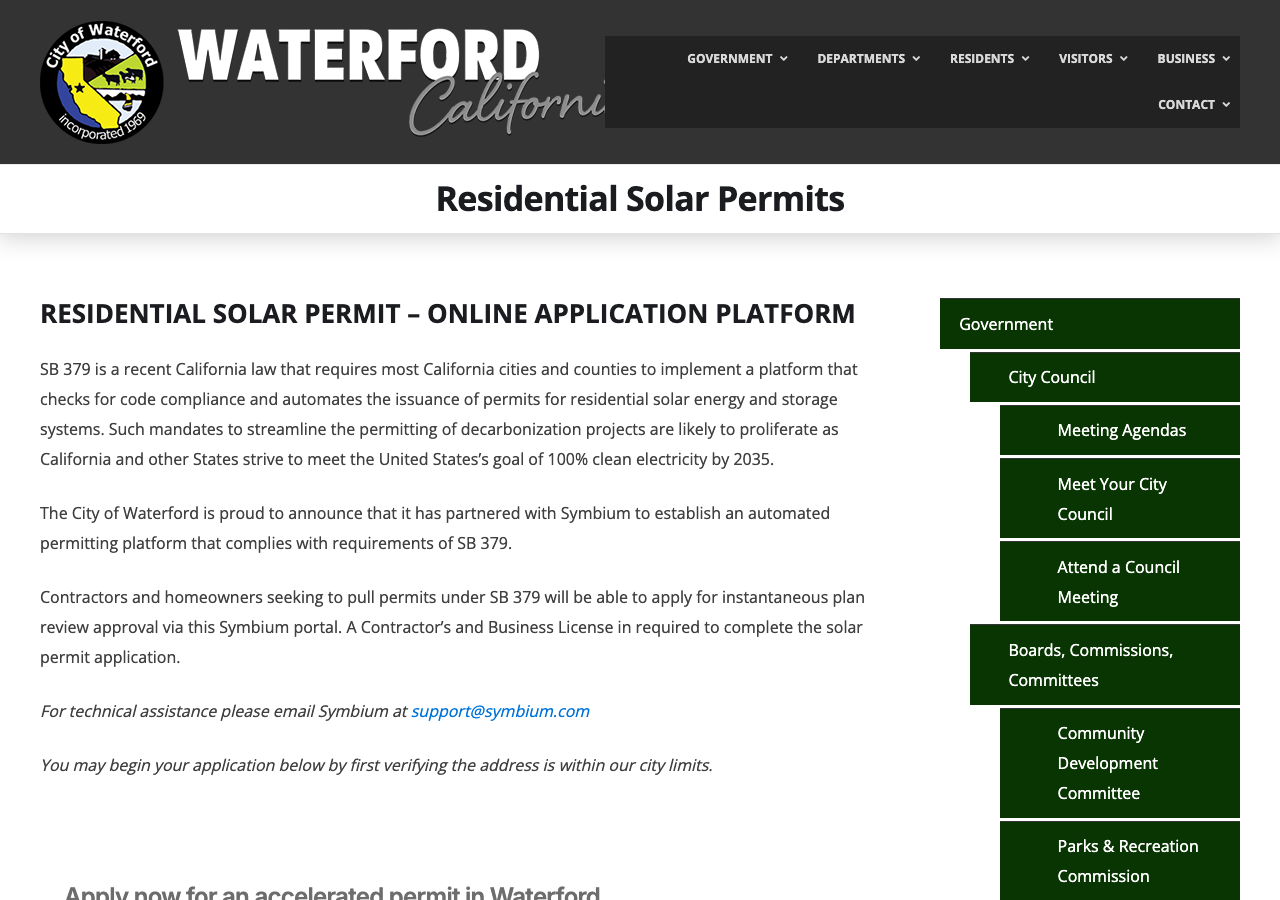

• Which permit portal does this authority use? Symbium (automated SB 379 solar permitting platform) 95% · authority's own department page
• Can the whole application be completed online? Yes, for SB 379-eligible standard residential systems 80% · authority's own department page
• What does a residential solar permit cost? $395 flat 90% · published fee schedule
• How is the fee calculated? Flat 90% · published fee schedule
• Is there a separate plan-check fee? No 70% · published fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Up to 10 business days for plans requiring plan review (per the general checklist); SB 379/Symbium-eligible standard systems are intended to receive instantaneous automated approval 55% · application checklist
• Which utility handles interconnection here? Modesto Irrigation District (MID) 95% · utility's own service guide
• Where does the utility sit in the sequence? After permit (for final interconnection/PTO); MID's initial engineering-review approval to begin construction occurs before/parallel to the city permit 80% · utility interconnection handbook

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (as incorporated into the 2025 California Electrical Code, Title 24 Part 3) 55% · municipal code (indexed, direct fetch blocked)
• Which building code edition is in force? 2025 California Building Code (Title 24, Part 2), per Ordinance No. 2025-04 55% · municipal code (indexed, direct fetch blocked)
• Which fire code edition is in force? 2025 California Fire Code, per Stanislaus Consolidated Fire Protection District Ordinance No. 2026-02 70% · fire district board agenda & draft ordinance text
• Are there local amendments to any of the above? Yes 85% · fire district ordinance text
• What is the installation judged against? The adopted 2025 California Building/Residential/Electrical Code (Title 24) with Waterford's local Title 15 amendments, and the 2025 California Fire Code with SCFPD's local amendments 55% · municipal code (indexed, direct fetch blocked)

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? No Waterford/SCFPD-specific amendment to the base 2025 CFC rooftop-access-pathway/setback provisions was found; the unamended 2025 California Fire Code (based on the 2024 IFC) rooftop solar access/pathway/setback requirements would apply by default 50% · fire district ordinance text (partial)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

Nothing recorded for City of Waterford on this step yet — 1 question checked and found unpublished. The guidance above is general.

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? At minimum: a 'Caution: PV and Utility Power' placard, a Solar Array AC Disconnect placard, a Utility-Use-Only AC Disconnect placard, a Solar Production (meter) placard, and (if applicable) a Solar Breaker placard — all specified by MID, the interconnecting utility 80% · utility electric service guide
• Does the authority specify placard wording of its own? Yes (by the utility, MID) — not confirmed for the City itself 75% · utility electric service guide
• Does it specify letter height, colour or material? Minimum 1/4-inch letters, impressed into or raised from a tag of plastic laminate, aluminum, brass, or other non-ferrous metal; attached with high-strength 5-minute epoxy (not removable without hand tools; rivets/screws not acceptable) 90% · utility electric service guide
• Is a site plan / facility map placard required, and what must it show? Yes — MID requires a site diagram/plan showing panel/inverter layout, metering, switches/disconnects, placarding/signage locations, obstructions, relative placement to the dwelling, and gates (marked locked/unlocked) 75% · utility electric service guide
• Does the UTILITY specify placards beyond the AHJ's? Yes 95% · utility electric service guide
• Where must the labels be placed? At/adjacent to the AC disconnects, the production/generation meter socket, and the main service panel — all within about 12 feet and in line of sight of each other, on the same side of any gate/fence as the main panel 85% · utility electric service guide

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? Between the main electric panel and the production/generation meter socket, within 12 feet and in line of sight of the main panel, in a readily accessible location; meter-socket centerline height must be 48-75 inches 90% · utility electric service guide
• Must equipment be on a specific approved list? Yes 90% · utility electric service guide
• Are batteries permitted, and under what conditions? Yes, batteries/ESS are permitted, but must be configured only for customer backup power or peak-shaving — MID prohibits any ESS from being configured to export power back onto MID's grid 80% · utility electric service guide
• Is there a separate ESS permit or inspection? Likely yes for a stand-alone/commercial ESS (SCFPD's fire fee schedule lists a distinct 'Battery Systems' fee of $397.45), but not confirmed for a residential system bundled with a new PV array 50% · fire district fee schedule

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone 65% · application checklist
• How much notice is required? Effectively next business day — the checklist instructs applicants to call before 4pm to schedule, implying inspections booked one business day ahead 50% · application checklist

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 65% · authority's own staff directory
• If delegated, to whom? N/A — not delegated (see q52) 65% · authority's own staff directory

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

Nothing recorded for City of Waterford on this step yet — 2 questions checked and found unpublished. The guidance above is general.

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• What must be on site at inspection? The approved/stamped plan set, and (per MID's process) proof that the local inspection has passed before MID's own interconnection inspection 55% · application checklist (inference)
• Does the inspector verify labels and listings? Likely yes, but not confirmed in a Waterford-specific published document 45% · utility electric service guide (inference)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (a signed-off/passed final building & electrical inspection) 75% · utility electric service guide (describing AHJ output)
• Who notifies the utility for PTO? Installer (the solar contractor) 90% · utility interconnection handbook
