City of Westmorland

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 88% · department page
• What does this authority permit itself, and what does it delegate? Both 65% · permit application form
• Is a permit required for a residential rooftop PV system? Yes 80% · cross-referenced from utility interconnection checklist + city permit application form
• Is there a separate electrical permit, or is it combined? Combined 82% · permit application form
• Is a HOA or architectural approval required first? No 60% · zoning ordinance amendments (control-checked)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Must the contractor be registered with this authority before applying? Yes 60% · business license application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? The only document the city publishes is the one-page 'Building Permit Application' itself (project address, owner/contractor info, workers' compensation declaration, valuation, and a fee worksheet broken out by Electrical/Mechanical/Plumbing/Building line items). No solar-specific submittal checklist, site-plan requirement, or one-line-diagram requirement is published by the city. IID's own interconnection checklist independently confirms the city does require a stamped one-line diagram and site plan as part of its process (both diagrams must show 'Stamped with local permit jurisdiction approval (AHJ)'), so a fuller submittal package is expected in practice even though the city has not published its own checklist naming it. 58% · permit application form + cross-referenced utility checklist
• Is a site plan required, and what must it show? A site plan is implicitly required (per IID's cross-referencing of an AHJ-stamped site plan), and per IID's own Site-Plan Check-Sheet -- the document IID expects an applicant to have already had stamped by the city -- it must show system summary/DC and CEC-AC size, drawing number, version/date, customer and contractor information, and the electrical relationship of main/sub-panels, inverter(s), AC disconnect, and the utility meter and transformer. The city itself publishes no independent site-plan requirement or example. 55% · utility interconnection checklist (cross-referenced, not a city document)
• Is a one-line / three-line diagram required? Yes 62% · utility interconnection checklist (cross-referenced)
• Is an electrical PE stamp required, and at what threshold? Not stated by the city itself; IID's own One-line Diagram and Site-Plan Check-Sheets both list 'Electrical PE stamp (required if ≥ 10 kW)' as a requirement for the diagrams submitted with an interconnection application. 55% · utility interconnection checklist (cross-referenced)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

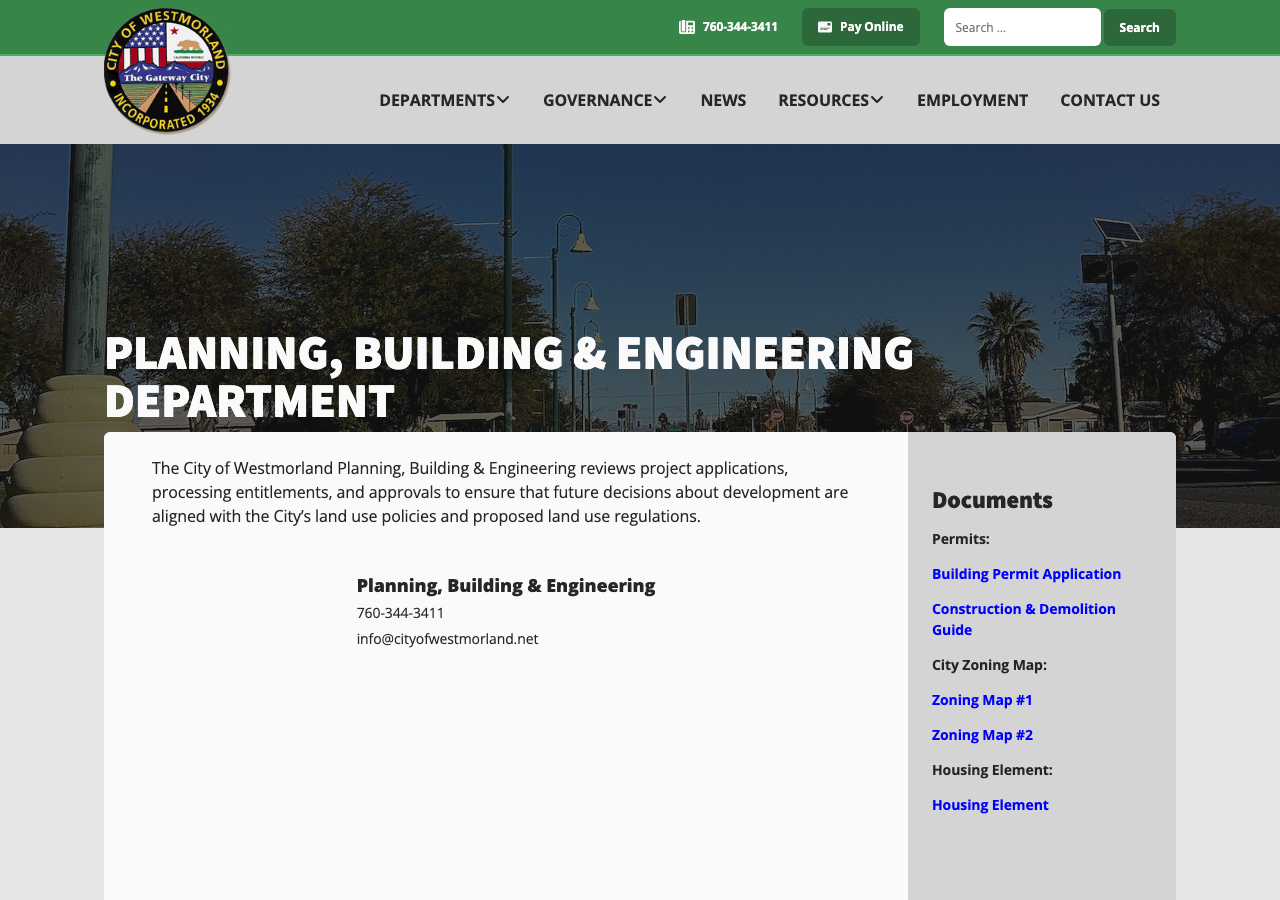

• Which permit portal does this authority use? None published -- no dedicated online permit portal was found anywhere on the city's site after a full department-by-department crawl. The Planning, Building & Engineering page links only the paper 'Building Permit Application' PDF; the site's only online-payment integration (InvoiceCloud, 'Pay Online') is for water/utility billing, not permitting. 68% · department page (full-site crawl)
• Can the whole application be completed online? No 68% · department page (full-site crawl)
• Is there a separate plan-check fee? Yes 78% · permit application form

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• How long is an issued permit valid before it expires? 180 days 90% · permit application form
• Which utility handles interconnection here? Imperial Irrigation District (IID) 90% · utility's own website + city department page
• Where does the utility sit in the sequence? After permit (with a further, final utility-side step before PTO) 78% · utility DG interconnection page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

Nothing recorded for City of Westmorland on this step yet — 5 questions checked and found unpublished. The guidance above is general.

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Westmorland on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

Nothing recorded for City of Westmorland on this step yet — 1 question checked and found unpublished. The guidance above is general.

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? The city itself specifies no placards (no ordinance or checklist found). IID's Rule 21 interconnection standard requires the visible AC/utility disconnect to carry 'markings or signage that clearly indicates open and closed positions'; for battery/ESS installations it separately requires labeling on the exterior of all panels and on the breaker in the main panel stating that DG/ESS are connected, and placards/directories at all disconnect locations where the ESS disconnect is not within sight of the PV AC/DC disconnects. 78% · utility interconnection rules
• Does the authority specify placard wording of its own? Partially 70% · utility interconnection rules
• Does it specify letter height, colour or material? No specific letter height, color or material is mandated for the standard PV AC disconnect marking. For ESS disconnect labels, IID states only a preference, not a hard requirement: 'It is preferred that these labels be engraved so that they would still be readable if painted over.' 65% · utility interconnection rules
• Is a site plan / facility map placard required, and what must it show? IID's own Site-Plan Check-Sheet functions as the facility-map requirement for interconnection: it must show a system summary (DC size, CEC-AC size), drawing number, version/date, customer and contractor information, be stamped with local AHJ approval, and show the electrical relationship of the main/sub-panels, inverter(s), AC disconnect, solar panel array, IID meter and IID transformer, with the Rule 21/NEM note that the AC Safety Disconnect be shown 'within 15' of service meter panel and within plain site of meter.' 76% · utility interconnection checklist
• Does the UTILITY specify placards beyond the AHJ's? Yes 85% · utility interconnection rules
• Where must the labels be placed? Per IID's Rule 21: the visible/manual AC disconnect must be located near the Point of Interconnection, within 15 feet of and within sight of the main panel (confirmed independently by the Site-Plan Check-Sheet's 'within 15' of service meter panel and within plain site of meter'). For ESS: labels go on the exterior of all panels and the breaker in the main panel; if the ESS disconnect is not within sight of the PV AC/DC disconnects, placards/directories must be posted at all disconnect locations; if the ESS/critical-load panel is in a garage out of sight of the main service panel, a second labeled disconnect must be placed outside, next to the main service panel. 85% · utility interconnection rules

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? Within 15 feet of the service meter/main panel and within plain sight of the meter 88% · utility DG interconnection checklist + Rule 21 rules
• Must equipment be on a specific approved list? Yes 78% · utility interconnection checklist
• Are batteries permitted, and under what conditions? Batteries/ESS are permitted for interconnection subject to IID's own Microgrid/ESS interconnection guidelines: a Smart Contactor between the main panel and Critical Load Panel to isolate DG/ESS during a utility outage; disconnecting means and overcurrent protection at the energy-storage-device end of the circuit; a second disconnect within sight of, or within 15 feet of (at IID's discretion), the main panel; if the ESS/Critical Load Panel sits in a garage out of sight of the main panel, a second labeled disconnect must be placed outside next to the main service panel; and exterior/breaker labeling identifying DG/ESS connections. No independent city fire-code or building-code condition on batteries could be found (no municipal code is accessible online for Westmorland). 68% · utility interconnection rules

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

Nothing recorded for City of Westmorland on this step yet — 3 questions checked and found unpublished. The guidance above is general.

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

Nothing recorded for City of Westmorland on this step yet — 2 questions checked and found unpublished. The guidance above is general.

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

Nothing recorded for City of Westmorland on this step yet — 2 questions checked and found unpublished. The guidance above is general.

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 68% · department page (full-site crawl)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Who notifies the utility for PTO? Installer 80% · utility FAQ page
