City of Wheatland

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · municipal code
• What does this authority permit itself, and what does it delegate? Delegated 92% · department page
• Is a permit required for a residential rooftop PV system? Yes 90% · municipal code
• Is there a separate electrical permit, or is it combined? Combined 78% · fee schedule (OCR-extracted)
• Is there a system-size cap on residential generation? No hard citywide size cap on residential PV. The 10 kW AC / 30 kW thermal figure in WMC §15.19.010 (cross-referencing Gov. Code §65850.5(j)(3)) is only the eligibility ceiling for the EXPEDITED small-residential-rooftop process, not a prohibition on larger residential systems, which would simply route through Yuba County's standard (non-expedited) plan-check process. 76% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 85% · department page
• Must the contractor be registered with this authority before applying? Yes 72% · fee schedule (extracted text)
• Is a homeowner permitted to self-install and self-permit? Yes 58% · department page (inference)

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per Yuba County's residential plan-submittal list (operative for Wheatland): site/plot plan, floor plan, building elevations, structural foundation plan, structural roof framing plan, electrical plan/layout, Title 24 energy calculations, engineered structural calculations, and truss calculations. For a GROUND-MOUNT system specifically, Wheatland's own 'Ground Mounted Solar Permit Process' handout additionally requires the plans demonstrate compliance with the zoning accessory-building standards of WMC §18.60.010 (setbacks, lot coverage). 82% · published handout + department checklist
• How many copies, and in what format? Digital PDF submitted through the Yuba County Self Service portal is preferred; paper plans accepted up to 11"x17". No copy count is stated (the portal is the intake point, not a paper-copy counter). 75% · department page
• Is a site plan required, and what must it show? Yes. Per Yuba County's own 'Plot Plan Requirements' handout (revision-stamped 3/20/2019, re-OCR'd this run and still the live linked document): the plot/site plan must show the owner's name & address, Assessor's Parcel Number, well/septic tank/leach-field locations, property lines and distances, all existing structures on the property, proposed structures/additions with dimensions, distances from all property lines to all structures, distances between structures, and all roads adjacent to the property. 88% · handout/checklist (OCR-extracted)
• Is a one-line / three-line diagram required? Yes (by inference) 55% · department checklist (inference)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? Yuba County Self Service (Tyler Technologies EnerGov citizen portal) — the same portal the county uses countywide; Yuba County's own site names a dedicated 'City of Wheatland Residents' landing page directing Wheatland applicants to this same portal. 90% · portal landing page
• Can the whole application be completed online? Yes 80% · portal/department page
• What does a residential solar permit cost? $285.00 (roof-mount, residential); $570.00 (ground-mount, residential) — the Yuba County building-permit fee, made operative for Wheatland by WMC §15.02.010/.020. In addition, Wheatland's own 1% New-Development Excise Tax (WMC Ch. 3.30, Ord. 384) applies to 'new or expanded' building permits, but its own exemption list (§3.30.040(B)(2)) explicitly excludes 'a garage, shed, carport, gazebo, swimming pool, patio, deck... and similar structures and outdoor appurtenances accessory to an existing residential building' — a description a ground-mount solar array (itself classified as an accessory building by the city) would appear to fit; roof-mount solar likely falls outside the excise tax's own scope entirely since it adds no building/structure square footage. No document states this outcome for solar in as many words. 82% · fee schedule (OCR-extracted) + municipal code
• How is the fee calculated? Flat 85% · fee schedule (OCR-extracted)
• Is there a separate plan-check fee? Yes — $190.00 (1-hour minimum) 82% · fee schedule (OCR-extracted)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• How long is an issued permit valid before it expires? 180 days 88% · municipal code
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 70% · city handout (indirect reference)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2020 (as codified) — with a real conflict worth flagging 55% · municipal code (codified vs. live-cycle conflict)
• Which building code edition is in force? 2022 California Building Code (based on the 2021 IBC), as codified in WMC §15.05.010 — same codified-vs-live-cycle caveat as Q29: Yuba County's own current adoption notice (which performs Wheatland's plan check) states the 2025 CBC applies to plans submitted on or after 1 Jan 2026. 68% · municipal code (codified vs. live-cycle conflict)
• Which fire code edition is in force? 2022 California Fire Code, as codified in WMC §15.12.010 — same codified-vs-live-cycle caveat: Yuba County's own current adoption notice states the 2025 CFC applies to plans submitted on or after 1 Jan 2026. 68% · municipal code
• Are there local amendments to any of the above? Yes 95% · municipal code
• What is the installation judged against? The codified 2022 CBC/CRC/CEC/CFC (Title 24) as locally amended in WMC Title 15, including the solar-specific local rules in Ch. 15.19; in practice, plan check and inspection are performed by Yuba County Building Department against whichever Title 24 cycle it is currently enforcing (the 2025 cycle as of 1 Jan 2026). 70% · municipal code + department page

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? WMC §15.19.020 (local amendment specific to small residential rooftop solar): 'For fire department roof access, the roof access point shall NOT be located on a residential garage roof.' No numeric ridge-setback or pathway-width dimension is stated anywhere in Wheatland's own code; the codified fire chapter (Ch. 15.12, 2022 CFC) contains no PV-specific pathway/setback amendment (full-chapter text read, none found). 78% · municipal code

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Rapid shutdown applies by reference to NEC §690.12 via the codified 2022 CEC (based on the 2020 NEC, which already contains the module-level rapid-shutdown requirement). No Wheatland document discusses rapid shutdown in its own words — a full-text search of the whole municipal code for 'rapid shutdown' returned only two unrelated 'rapid... runoff of surface waters' floodplain-definition hits (control-checked: 'fire' returns 81 hits, fabricated term 'zzqqx' returns 0). Note the same codified-vs-live-cycle caveat as Q29: Yuba County's current 2025 CEC (2023 NEC) may be the edition actually applied at the point of permit issuance. 55% · municipal code (inference + control-checked absence)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

Nothing recorded for City of Wheatland on this step yet — 6 questions checked and found unpublished. The guidance above is general.

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Are batteries permitted, and under what conditions? No local rule found; batteries/ESS appear to be governed entirely by the state-adopted CFC as codified, with no Wheatland-specific amendment or condition. 62% · municipal code (control-checked absence)
• Is there a separate ESS permit or inspection? No 72% · fee schedule (OCR-extracted, control-checked absence)
• Is a ground mount treated as a structure? Yes 95% · published handout

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

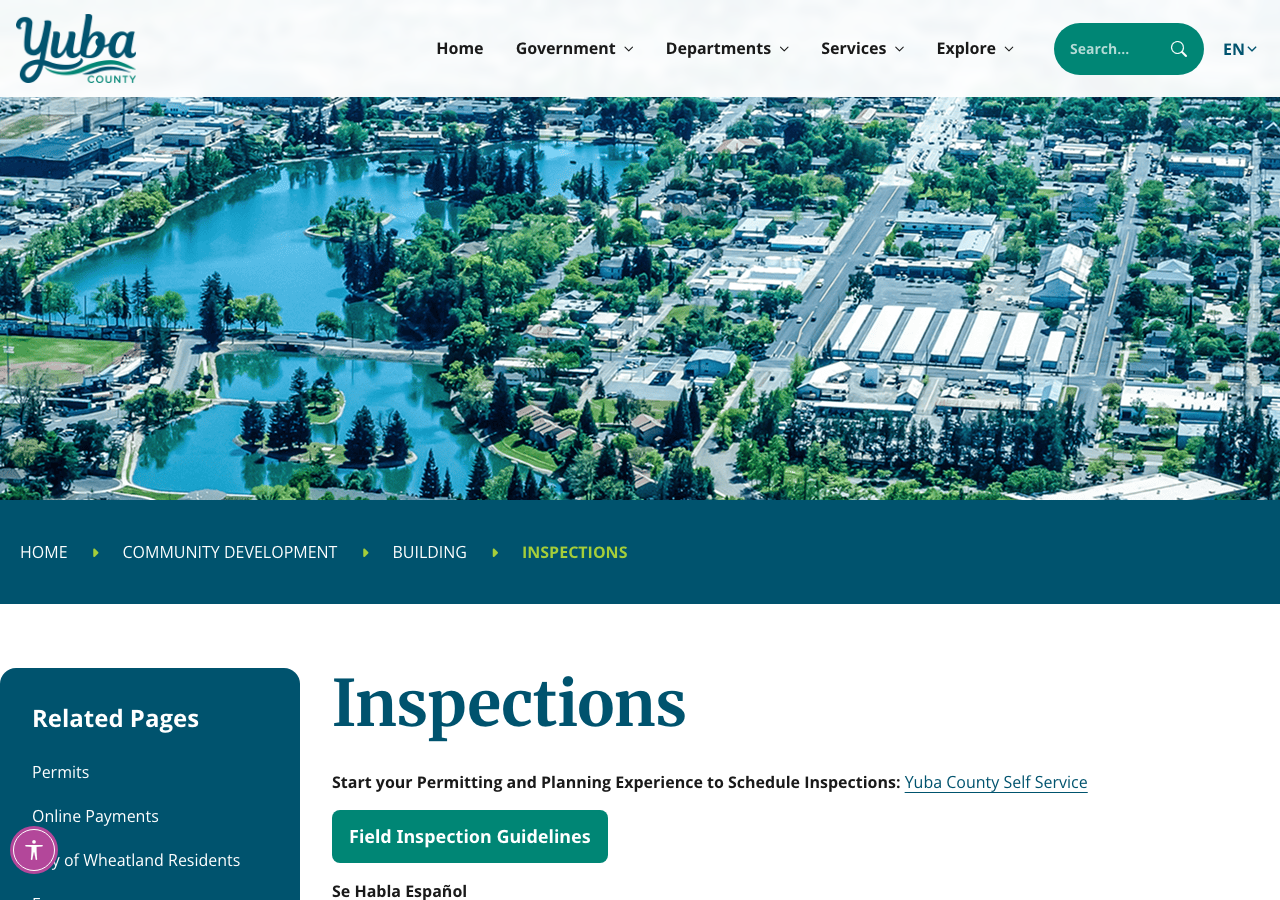

• How is an inspection booked? Portal (Yuba County Self Service); phone (530-749-5440) is used for same-day/on-site cancellations and to check the inspection time window, not for initial booking. 88% · department page
• How much notice is required? At least 1 business day 88% · department page
• Are same-day or AM/PM windows offered? Yes — an approximate two-hour window; inspectors are generally available 8:00-9:00am and 3:00-4:00pm, and the specific window is posted to the portal (or available by calling) after 8am the day of inspection. 82% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated 95% · department page
• If delegated, to whom? Yuba County Building Department 95% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? No PV-specific inspection sequence is published. Yuba County's Field Inspection Guidelines describe a general new-construction sequence (footing/under-slab → pre-slab/under-floor → roof-and-shear-wall → rough frame → insulation → gypsum → final), written for whole structures. For a standalone residential PV retrofit, the applicable step is most likely an electrical 'green tag,' which the same document says 'can be requested at any time throughout the construction process,' followed by a final inspection — but this is my inference, not a stated PV-specific sequence. 55% · department guidelines (OCR-extracted, inference)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 75% · department checklist (OCR-extracted)
• What must be on site at inspection? Per the Field Inspection Guidelines: the parcel/address must be clearly visible from the street throughout construction; approved plans must be kept on site at the structure being inspected at all times; the site must be free of tripping hazards and swept of debris; and for roof-level work, an OSHA-approved ladder extended at least three rungs above the roof and tied off/secured must be set up before the inspector arrives. 80% · department guidelines (OCR-extracted)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? An electrical 'green tag' is issued at rough-in/completion; a Final Inspection closes out the permit. The Field Inspection Guidelines use 'ready for occupancy' language written for new whole-house construction, which does not map cleanly onto a standalone rooftop-PV retrofit on an existing occupied home. 55% · department guidelines (OCR-extracted, inference)
• Is there a re-inspection fee? $285.00 (residential); $475.00 (non-residential) 88% · fee schedule (OCR-extracted)
