City of Yorba Linda

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both (Building & Electrical) issued by the City's Building Division; fire life-safety review (CRC R324.6) delegated to OCFA 90% · department page + fire authority page
• Is a permit required for a residential rooftop PV system? Yes 95% · department page
• Is there a separate electrical permit, or is it combined? Combined — issued as a single 'SolarPV' permit type (Accela CAPType Building/Residential/SolarPV/SolarApp) covering both building and electrical scope 80% · permit portal
• Is a HOA or architectural approval required first? No City-required HOA/architectural review step is described in the SolarAPP+/self-certification process; the Planning Division Permits page (Special Event/Temporary Use permits only) does not mention solar at all, and no dedicated design-review page for solar exists on the site 60% · department page (absence) + state law context
• Is there a historic-district review? A Main Street Historic District exists, but it appears to be a small commercial 'original downtown' corridor rather than a residential overlay; its own page makes no mention of a design-review trigger for rooftop equipment and does not state whether any residential parcels fall inside its boundary 50% · department page (incomplete)
• Is a wind or windstorm certification required? No — wind/windstorm certification (a Texas Department of Insurance coastal-zone concept) has no California analog and none is referenced anywhere on the City's building or solar pages 80% · department page (absence)
• Is a Specific Use Permit or Council approval ever required? Not for typical residential rooftop PV — CA Gov. Code §65850.5 prohibits AHJs from requiring discretionary/CUP-style review for standard residential solar; a Specific Use Permit or Council approval would only plausibly apply to unusual cases (e.g., large ground-mount arrays exceeding zoning height/coverage limits), which is not addressed on any City page found 60% · state law + department page (absence)
• Is there a system-size cap on residential generation? No City-specific residential generation size cap found; effective ceilings are the SolarAPP+ eligibility list and standard CA net-energy-metering/zoning height limits rather than a City-imposed kW cap. Historically, City Policy 003 (2015) defined 'small residential' systems as ≤10kW AC for its now-superseded expedited over-the-counter track. 55% · department policy (dated)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either — a licensed contractor (must be A, B, C-10, and/or C-46 per the City's self-certification form) or a homeowner acting as owner-builder under CSLB owner-builder rules 80% · city form
• Must the contractor be registered with this authority before applying? Yes, for the SolarAPP+ route: contractor must be added to the SolarAPP+ program eligibility list (email team@solar-app.org) and the project needs an active City of Yorba Linda Business License before permit issuance 88% · department page
• Is a homeowner permitted to self-install and self-permit? Yes, with strict limitations — City FAQ confirms property owners (not tenants/business owners) may self-permit as owner-builder per CSLB rules; the self-certification program itself still requires a licensed A/B/C-10/C-46 contractor to sign the certification, so self-install under the streamlined self-cert path is effectively contractor-gated even where the permit itself is owner-pulled 65% · department FAQ

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? SolarAPP+ approved plan package; completed Solar Self-Certification form; active City Business License; contractor on SolarAPP+ eligibility list; for non-SolarAPP+-eligible projects per Policy 003: application, submittal checklist, plans, structural calculations, and manufacturer's specifications 82% · department policy
• How many copies, and in what format? Policy 003 (over-the-counter/expedited path): electronic submittals capped at 15MB, max 2 submittals per applicant per day; once approved, 2 wet-stamped paper sets required in person for permit issuance. SolarAPP+ route itself is fully digital (uploaded to the SolarAPP+ portal, no paper copies specified). 75% · department policy
• Is a site plan required, and what must it show? A site/plot plan is part of the general submittal package (City Standard Plans page offers a standard 'Plot Plan' format), but no solar-specific site-plan content list (e.g., array layout, setbacks drawn to scale) is published separately from the self-certification form's narrative checklist 55% · department page
• Is a one-line / three-line diagram required? Not explicitly stated by the City; SolarAPP+ (the national NREL platform Yorba Linda uses) requires a one-line diagram as part of its standard project submission nationally 55% · third-party platform documentation (comparable authority inference)
• Are string and conductor calculations required? Not published by the City specifically; Policy 003 requires 'structural calculations' generally where a project doesn't meet the self-certification prescriptive path, implying string/conductor sizing is reviewed as part of standard plan check rather than called out separately 50% · department policy
• Is a structural PE stamp required, and at what threshold? Structural PE/SE calculations required only if the installation exceeds the City's prescriptive thresholds on the self-certification form: PV system weight ≤4 PSF, max concentrated load 40 lb per attachment, module height <18in above roof, rafters 2x4 or better at 24in o.c. with max 4ft attachment span, min 5/16in lag screws with 2.5in penetration. Exceeding any of these requires 'Structural Engineering Calculations' in lieu of the prescriptive path. 85% · city form
• Is an electrical PE stamp required, and at what threshold? No electrical PE stamp threshold specific to Yorba Linda was found; standard residential PV appears to be reviewed under contractor license (C-10/C-46) without a separate electrical engineering stamp requirement 50% · inference from silence in city documents

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

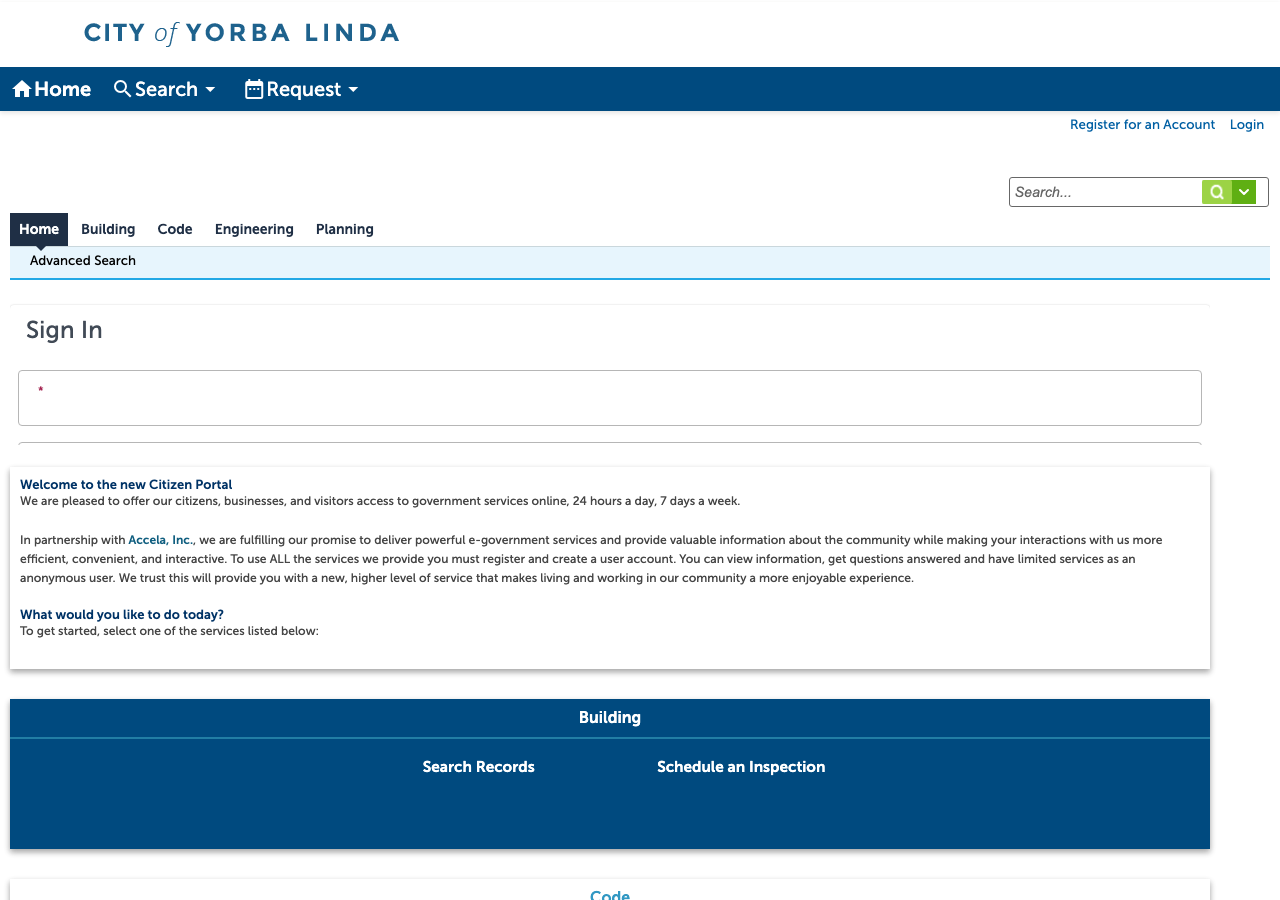

• Which permit portal does this authority use? SolarAPP+ (solarapp.org, NREL's national automated permitting platform) for eligible designs, paired with Accela Citizen Access ('YORBALINDA' instance) for the City-side SolarPV permit application, payment, and record 92% · department page
• Can the whole application be completed online? Yes, for eligible projects — the entire point of SolarAPP+ is code-compliance review and instant permit issuance online, followed by the City permit application/payment via Accela Citizen Access, also online 88% · department page
• What does a residential solar permit cost? Residential rooftop solar: $450 flat for systems ≤15kW, plus $15/kW for capacity above 15kW. Ground-mount solar: $310 flat (separate line item). Battery Backup Storage - Residential: $310 flat (separate line item, distinct from the solar permit). 95% · fee schedule
• How is the fee calculated? Flat + tiered per kW — $450 flat up to 15kW, then $15 per kW above 15kW (residential rooftop); ground-mount and battery storage are separate flat $310 fees 95% · fee schedule
• Is there a separate plan-check fee? No — the Section A flat fees (including the $450 residential solar fee) explicitly 'include all applicable inspection, and plan review fees.' A separate Technology Fee (5% of plan review/permit fee) exists but footnote [b] states it applies 'to all permits except solar permits,' i.e. solar is specifically exempted from that add-on fee. 92% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Not stated as a specific business-day number for standard review. For the SolarAPP+ eligible path, review/issuance is effectively instant/automated (that is the stated purpose of SolarAPP+). For non-eligible projects, Policy 003 only says they revert to 'our standard plan review timeline' without a day count, and the Plan Check page does not publish a turnaround figure either. 60% · department page (absence proven)
• How long is an issued permit valid before it expires? Not stated explicitly for solar; the fee schedule's Permit Reactivation table implies a validity checkpoint distinguishing permits expired 'up to one year' (50% reactivation fee) vs. 'more than one year' (100% fee), consistent with the CBC/CRC default 180-day expiration with extension, but the City's own page never states '180 days' outright 55% · fee schedule (inference)
• Which utility handles interconnection here? Southern California Edison (SCE) 95% · city page naming utility
• Where does the utility sit in the sequence? Parallel / largely independent of the City permit sequence for typical net-metered residential PV — SCE interconnection (NEM application, PTO) runs on its own Rule 21 timeline and is not a prerequisite the City checks before issuing a building/electrical permit 55% · utility landing page (non-gated) + inference

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? Likely 2023 NEC as part of the statewide 2025 Title 24 Triennial Code cycle (effective 1 Jan 2026), but not confirmed from Yorba Linda's own adoption ordinance 50% · state adopting agency (inference, city ordinance unreachable)
• Which building code edition is in force? Likely 2025 California Building Code (Title 24 Triennial cycle, effective 1 Jan 2026) — not confirmed from the City's own ordinance for the same access reasons as q29. Notably, the City's own 'Permit Exceptions' page currently cites '2019 CBC Section 105.2,' two cycles behind, suggesting at least one City web page has not been updated to the current cycle. 50% · department page (dated, conflicts with state cycle)
• Which fire code edition is in force? Not confirmed from a City or OCFA document; presumed 2025 California Fire Code (statewide Title 24 cycle) by the same statewide-adoption logic as q29/q30 45% · fire authority document index (edition not stated)
• Are there local amendments to any of the above? Yes, at least one — the City's own self-certification form imposes fire-setback/pathway percentages tied to sprinklered vs. non-sprinklered buildings (CRC R324.6) that go beyond a bare code citation, and separately, CA AB 130 (Stats. 2025, Ch. 22) now bars the City from adopting any MORE-restrictive residential amendment through 1 Jun 2031 65% · city form + state law
• What is the installation judged against? The approved SolarAPP+ plan set and the City's Residential Rooftop Solar Self-Certification checklist (CRC R324.6 fire setbacks/pathways, CEC Article 690 wiring, CEC 690.31(D)(2) junction boxes, CEC 110.3 bonding/grounding), plus manufacturer specifications 85% · city form

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? CRC R324.6 pathways/setbacks as codified on the self-cert form: two 3-ft-wide pathways from lowest roof edge to ridge on separate roof planes (one on the street/driveway side); ridge setback of 18in each side of ridge if PV covers ≤33% of roof area (non-sprinklered) or ≤66% (sprinklered), rising to 36in if coverage exceeds those thresholds; a 3-ft-wide pathway must also be preserved at emergency escape/rescue openings 92% · city form

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Rapid shutdown is required as a matter of the underlying NEC edition (NEC 690.12) rather than a City-specific document; the City's self-cert form does not name '690.12' directly but does require conformance to 'CEC Article 690' generally. Edition is presumed 2023 NEC per the statewide 2025 code cycle (see q29 caveat). 55% · city form (partial) + inference

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Not published — no City or OCFA document names specific placards required at service equipment; the self-certification form and Policy 003 are silent on signage, and the City's 21-item Standard Plans catalog (checked in full) contains no solar/electrical/placard standard 70% · department page (absence proven)
• Does the authority specify placard wording of its own? No 68% · city form (absence)
• Does it specify letter height, colour or material? Not published — no letter height, colour, or material spec found in any City document checked (self-cert form, Policy 003, Standard Plans, fee schedule) 68% · city form (absence)
• Is a site plan / facility map placard required, and what must it show? Not published as a distinct facility-map/placard requirement beyond the generic 705.10 default; the self-certification form's pathway/setback diagram requirement functions as an as-built site sketch for fire-access purposes but is not framed as a posted facility map 55% · city form (partial)
• Where must the labels be placed? Not published by the City beyond code default (NEC 690/705 label placement at service equipment); no City document specifies label location beyond what the self-cert form implies (junction boxes and racking bonding points per CEC 690.31(D)(2) and CEC 110.3) 55% · city form (partial)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? No separate City-maintained approved-equipment list; standard CEC/UL listing requirements apply by default (e.g., UL 1703/61730 modules, UL 6703-class rapid shutdown per NEC 690.12) rather than a City-published product list 60% · department page (absence)
• Are batteries permitted, and under what conditions? Yes — 'Battery Backup Storage - Residential' is a named, separate $310 permit line item in the current fee schedule, distinct from the solar permit; conditions (indoor/outdoor placement, kWh limits, fire-code triggers) are not spelled out in any City document found and would default to the state fire code (which was not independently reachable — see q31) 65% · fee schedule
• Is there a separate ESS permit or inspection? Yes — battery storage has its own $310 fee line separate from the $450 rooftop-solar fee, indicating a separate permit rather than a bundled solar+battery permit 70% · fee schedule (inference)
• Is a ground mount treated as a structure? Likely yes, given 'Ground-Mount Solar' is fee-scheduled separately ($310) from rooftop solar, suggesting different (structure-like) review; not confirmed from the zoning/building code text directly (access blocked, see q29) 55% · fee schedule (inference)
• Is there a local rule on service upgrades or busbar sizing? No City-specific rule on service upgrades or busbar sizing found beyond the standard fee-schedule line item ('Service Panel Upgrade - Residential $354'); no 120%-rule or busbar-sizing amendment text located 50% · fee schedule (absence)
• Is a specific mounting system or attachment spacing required? Prescriptive mounting spec on the self-certification form: rafters 2x4 (or better) at 24in o.c., max 4ft (48in) attachment span, minimum 5/16in lag screws with 2.5in penetration depth into framing (no 'shiners'), max 18in module-to-roof height, max 4 PSF system weight, max 40lb concentrated point load — exceeding any of these requires engineered calculations instead 88% · city form

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

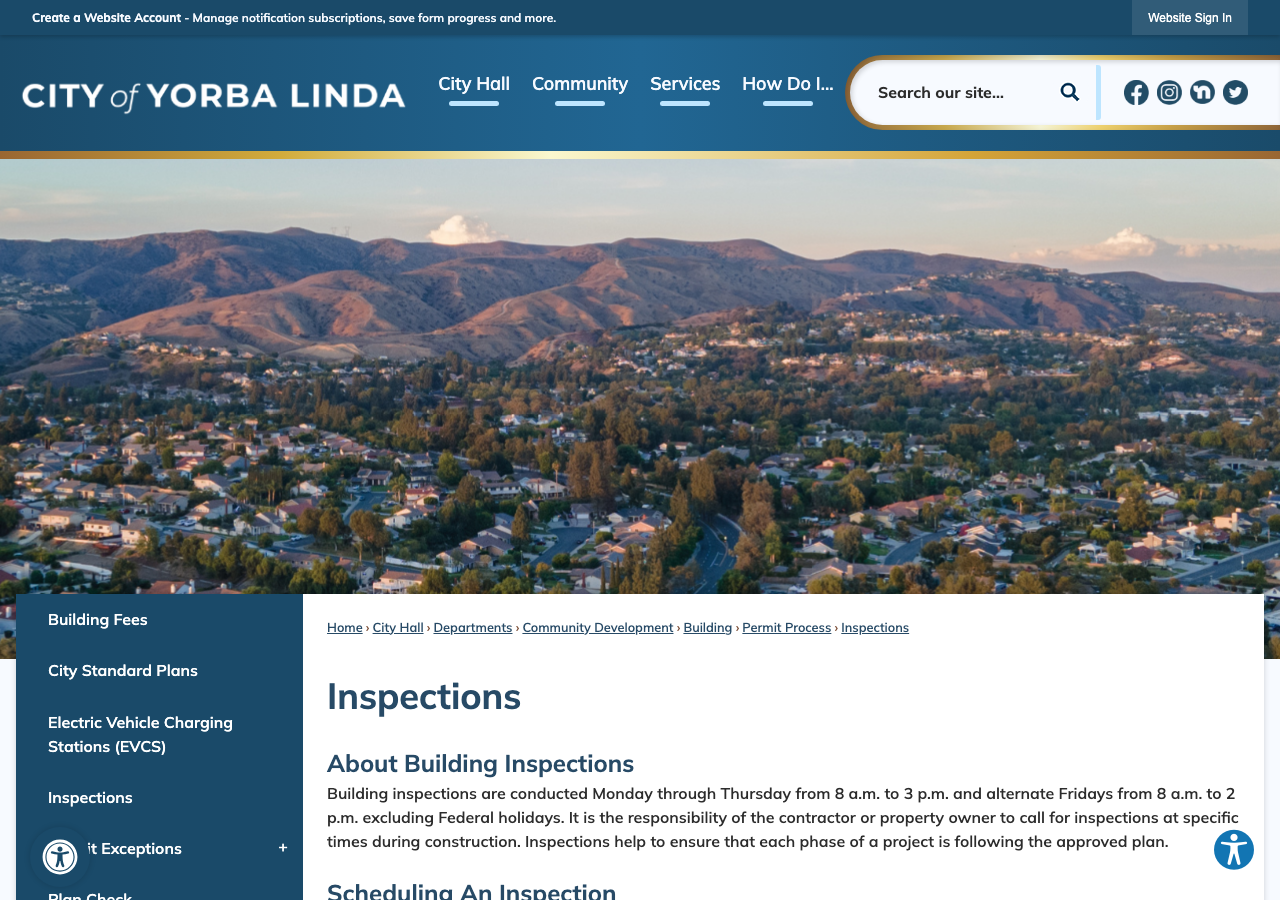

• How is an inspection booked? Portal (Accela Citizen Access / QR code) or Phone (Building Inspection Hotline 714-854-7411, backup Building Division 714-961-7120) 90% · department page
• How much notice is required? Effectively 1 business day — requests received by 3:30pm are scheduled for the next business day; requests after 3:30pm move to the second business day 90% · department handout
• Are same-day or AM/PM windows offered? AM/PM preference can be requested but the City does not guarantee a specific time window ('Inspectors strive to accommodate all requests, however they cannot guarantee specific inspection times'). No same-day inspection option is offered — next business day is the earliest. 85% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes, for building/electrical — the Building Division performs its own final inspection (or accepts the contractor's self-certification in lieu of a full inspection under the AB 2188 program). Fire life-safety compliance (CRC R324.6) is verified via the self-certification form itself rather than a separate OCFA site visit for typical residential retrofit PV. 75% · city form
• If delegated, to whom? N/A — not delegated for building/electrical; fire life-safety criteria are self-certified by the licensed contractor rather than inspected in the field by OCFA for typical residential rooftop PV 70% · city form

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? 1) SolarAPP+ automated plan review/approval, 2) City SolarPV permit issuance via Accela (upload of approved plans + signed self-certification form + business license), 3) Single final inspection (self-certification in lieu of the normal multi-step inspection process, per AB 2188), at which the signed self-cert form, smoke/CO self-cert form, and job card are turned in 85% · city form + department page
• Is a rough-in or mid-roof inspection required? No — the self-certification program is explicitly structured to replace 'the multiple inspection requirements' (i.e., no separate rough-in/mid-roof inspection) with a single final inspection, provided the applicant opts into self-certification; opting out reverts to full standard inspection access requirements 80% · city form

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes — the Residential Rooftop Solar Self-Certification form functions as a detailed, published inspection checklist (fire pathways/setbacks, prescriptive mounting limits, wiring/bonding code references, smoke/CO detector confirmation) 85% · city form
• What must be on site at inspection? Signed Solar Self-Certification form, completed Smoke & Carbon Monoxide Self-Certification form, and the job card; more generally per the 'Preparing for Inspections' handout: stamped approved plans (stapled, in order, current with revisions), any special-inspection/structural-observation reports, and past correction notices 90% · city form + department handout

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (permit closed/finaled) — no distinct 'green tag' or standalone Certificate of Occupancy process is described for a residential retrofit PV addition to an existing single-family home; the fee schedule does separately price a 'Duplicate Copy of Certificate of Occupancy,' implying COs exist for new construction/major work generally 55% · fee schedule (inference)
• Who notifies the utility for PTO? Installer — SCE's standard net-energy-metering/Rule 21 process requires the applicant/installer to submit the interconnection application and request Permission to Operate directly from SCE after the City's final inspection; the City does not describe itself as notifying SCE 50% · utility landing page (inference)
• Is there a re-inspection fee? $177, charged after the second failed inspection 92% · fee schedule
• How are corrections issued and cleared? Inspector issues correction notices on the failed inspection; applicant must address all corrections/deficiencies before requesting re-inspection, and must have any past correction notices on hand at the next inspection 70% · department handout
