Sutter County

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 90% · ordinance
• Is a permit required for a residential rooftop PV system? Yes 95% · fee schedule
• Is there a separate electrical permit, or is it combined? Combined 75% · fee schedule

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Is a homeowner permitted to self-install and self-permit? Yes 65% · department page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Cover sheet (project address, owner/contractor info, scope of work, sheet index, legend); basic roof layout plan (structure, North arrow, equipment, disconnects, inverters); array configuration with fire clearances; electrical single-line diagram (panel/subpanel amperage, grounding/bonding, combiner/junction box locations, AC/DC disconnect types, conduit sizes, inverter string sizing, conductor types); required signage per CEC Art. 690; cut sheets for all PV equipment (modules, racking, grounding hardware, module fire rating, inverters); panel-attachment/mounting details. 90% · published checklist
• How many copies, and in what format? Two (2) sets of plans, minimum 8.5"x11" and maximum 24"x36", drawn to scale or fully dimensioned. 95% · published checklist
• Is a site plan required, and what must it show? Yes - for ground mount: drawn per the site-plan checklist on 11x17 paper, showing equipment location, all structures/dimensions on the parcel (incl. septic/leach field), and distances between structures and to property lines. For roof mount: basic roof layout plan showing structure, North arrow, equipment, disconnects, inverters, and related PV components. 90% · published checklist
• Is a one-line / three-line diagram required? Yes 95% · published checklist
• Are string and conductor calculations required? Yes 80% · published checklist
• Is a structural PE stamp required, and at what threshold? Required only for flat-roof ballasted systems: 'must have a letter from a licensed structural engineer that is site specific and considers all applied loads to the roof structure.' Also required if roof rafters are over-span or won't otherwise support the system. 88% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

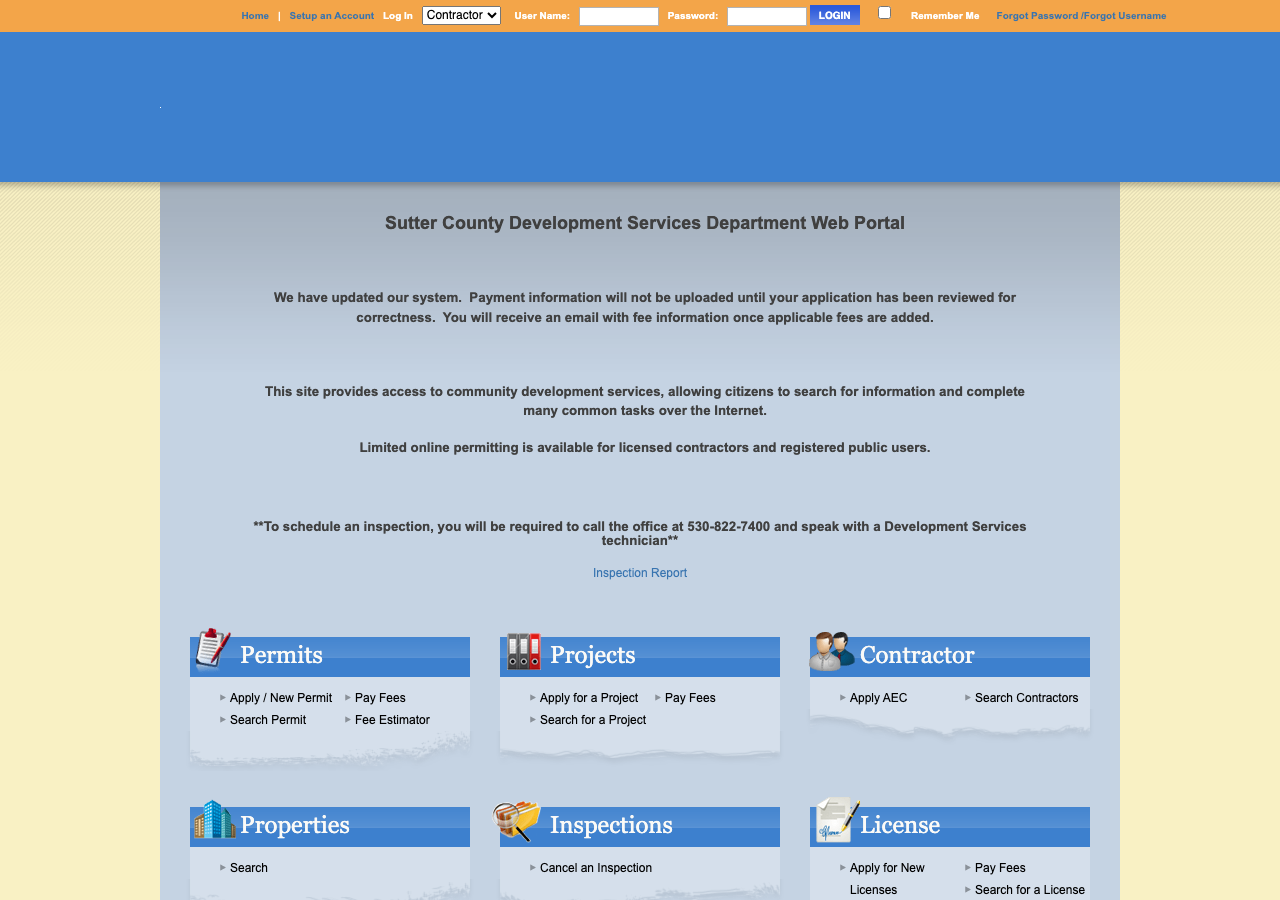

• Which permit portal does this authority use? eTRAKiT (Sutter County Development and Planning Portal) 95% · department page
• Can the whole application be completed online? Yes, for eligible permit types 70% · department page
• What does a residential solar permit cost? $450 flat + $15 per DC kilowatt for each kW above 15 kW 95% · fee schedule
• How is the fee calculated? Flat + Per kW (tiered above a threshold) 95% · fee schedule
• Is there a separate plan-check fee? No separate plan-check fee is listed for the initial solar submittal; a $182 'third review and revisions minimum plan review fee' applies only after repeated revision cycles. 65% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 78% · utility service territory page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 62% · ordinance
• Which building code edition is in force? 2025 California Building Code and 2025 California Residential Code 95% · ordinance
• Which fire code edition is in force? 2025 California Fire Code (based on the 2024 International Fire Code) 95% · ordinance
• Are there local amendments to any of the above? Yes 88% · ordinance
• What is the installation judged against? The 2025 California Residential/Building/Electrical Codes as locally amended, plus the county's own solar permit checklists (fire clearances, signage/labeling per CEC Art. 690). 78% · ordinance + checklist

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Hip roofs: min. 3ft clear walkway from eave to ridge on each roof slope with modules. Single-ridge roofs: two 3ft walkways from eave to ridge. Hips/valleys: modules no closer than 18" to the hip/valley. All residential roofs: no modules within 3ft of the ridge (fire-dept ventilation). Exception: roofs ≤2:12 slope, or when the Fire Chief approves alternative ventilation. 80% · published checklist (dated 2020)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes - 'Disconnecting means per the CEC 690.12 for Rapid Shutdowns and in accordance with 690.12(1) through (5).' 72% · published checklist (dated 2020)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Yes - DC conduit, enclosures, raceways, cable assemblies, junction boxes, combiner boxes, and disconnects must be labeled. 90% · published checklist
• Does the authority specify placard wording of its own? Yes - required wording: "WARNING: PHOTOVOLTAIC POWER SOURCE" 92% · published checklist
• Does it specify letter height, colour or material? Yes - labels must be reflective and weather-resistant, minimum 3/8" lettering height, white lettering on a red background (also stated as 'permanent labels with red background and white lettering resistant to fading,' pursuant to CEC Art. 690). 92% · published checklist
• Is a site plan / facility map placard required, and what must it show? A location directory (not a full facility map) is required only when multiple inverters are installed and not grouped together, at each AC and DC disconnect location. 65% · published checklist
• Where must the labels be placed? At every service disconnect, and on every DC conduit/raceway/enclosure at 10 feet on-center and within 1 foot of turns, bends, and penetrations. 92% · published checklist

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? No county-specific approved product list found; cut sheets for all PV equipment (modules, racking, grounding hardware, module fire rating, inverters) are required, implying standard NRTL-listed equipment rather than a county-maintained approved list. 58% · published checklist
• Is a ground mount treated as a structure? Yes (treated as a structure requiring engineered foundation) 70% · published checklist
• Is a specific mounting system or attachment spacing required? Yes - roof jacks or approved flashing with a minimum 2" standoff required; wiring secured to rack to prevent roof-surface contact; lag screws must penetrate structural members a minimum of 2". 85% · published checklist (dated 2020)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal (eTRAKiT) for most inspections; Phone required specifically for final inspections. 88% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 78% · ordinance
• If delegated, to whom? N/A - not delegated 78% · ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

Nothing recorded for Sutter County on this step yet — 2 questions checked and found unpublished. The guidance above is general.

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Does the inspector verify labels and listings? Yes (likely) 52% · published checklist (inference)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Is there a re-inspection fee? $123.00 90% · fee schedule
