SKU 052-03 · Solar PV Circuit Labels

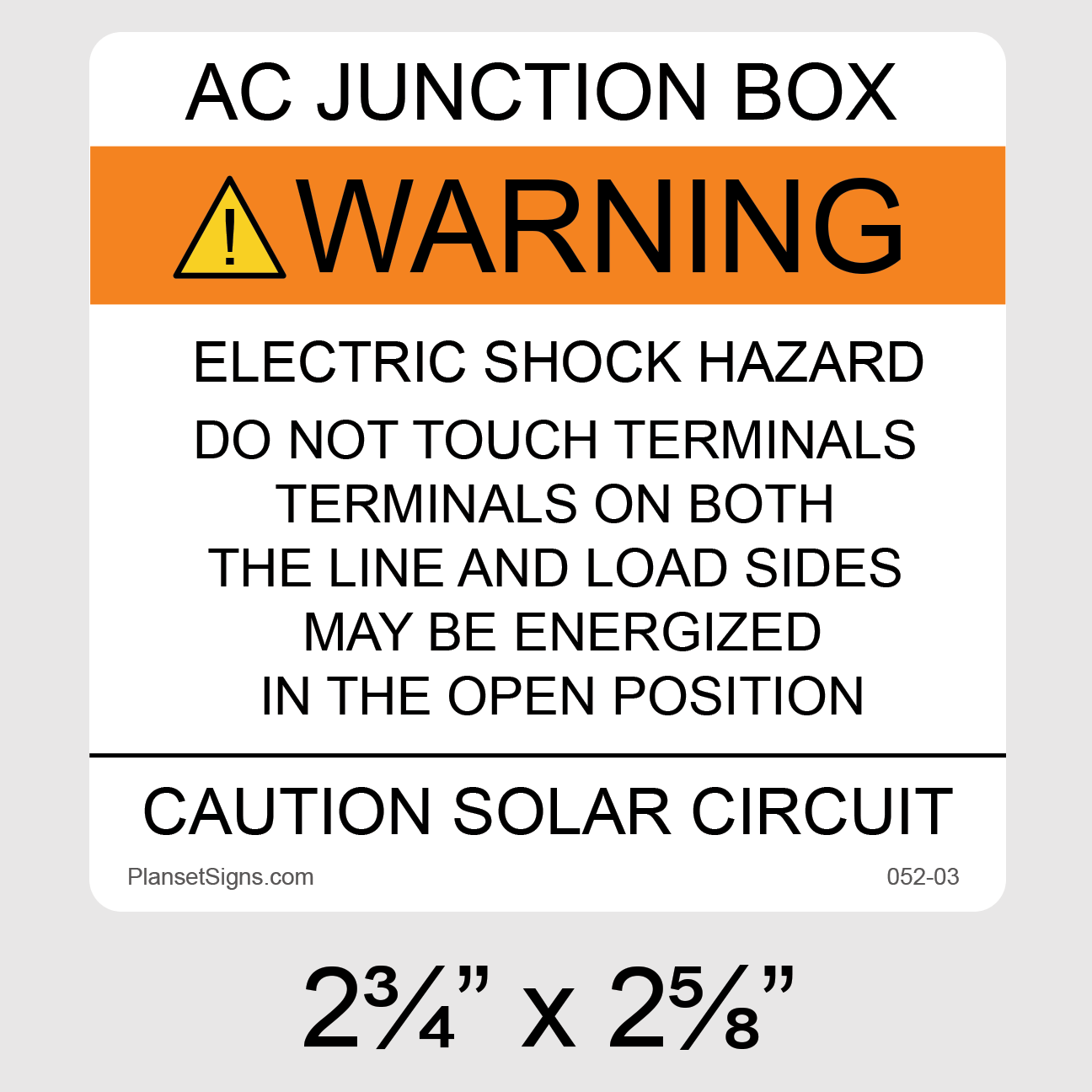

052-03 AC Junction Box Solar Warning Label
Made in USA
NEC Compliant
Ships same day
Solar PV warning label with white background, orange heading and black letters (2.75″ x 2.625″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Avery Dennison® MPI Hi Tack Easy Apply™ vinyl. The sign reads: ‘AC JUNCTION BOX WARNING ELECTRIC SHOCK HAZARD DO NOT TOUCH TERMINALS TERMINALS ON BOTH THE LINE AND LOAD SIDES MAY BE ENERGIZED IN THE OPEN POSITION CAUTION SOLAR CIRCUIT’. This label is available as a red label, red placard and white label with orange header. This label is used on micro inverter solar installations
Available variants
Used on
AC JUNCTION BOX WARNING ELECTRIC SHOCK HAZARD DO NOT TOUCH TERMINALS TERMINALS ON BOTH THE LINE AND LOAD SIDES MAY BE ENERGIZED IN THE OPEN POSITION CAUTION SOLAR CIRCUIT
About this label
Solar PV warning label with white background, orange heading and black letters (2.75″ x 2.625″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Avery Dennison® MPI Hi Tack Easy Apply™ vinyl. The sign reads: ‘AC JUNCTION BOX WARNING ELECTRIC SHOCK HAZARD DO NOT TOUCH TERMINALS TERMINALS ON BOTH THE LINE AND LOAD SIDES MAY BE ENERGIZED IN THE OPEN POSITION CAUTION SOLAR CIRCUIT’. This label is available as a red label, red placard and white label with orange header. This label is used on micro inverter solar installations
NEC compliance
- 690.17
- 690.17(4)
- Editions: 2014, 2017
NEC Articles
- 690.17
- 690.17(4)
Code years covered
- NEC 2014 — required
- NEC 2017 — required
Summary
Premium outdoor vinyl solar label (UV cured inks).
Dimensions
| Width | 2.75″ |
| Height | 2.625″ |
Material
| Spec | Avery Dennison® MPI Matte Opaque Hi Tack Easy Apply™ |
| Adhesive | Exceptionally strong long-life outdoor adhesive |
| Origin | USA |
| UV Stable | YES |
| Weatherable | YES |
Appearance
| Background | White |
| Letters | Black |
| Finish | Gloss laminate |
