SKU 101-01 · Solar PV Disconnect Labels

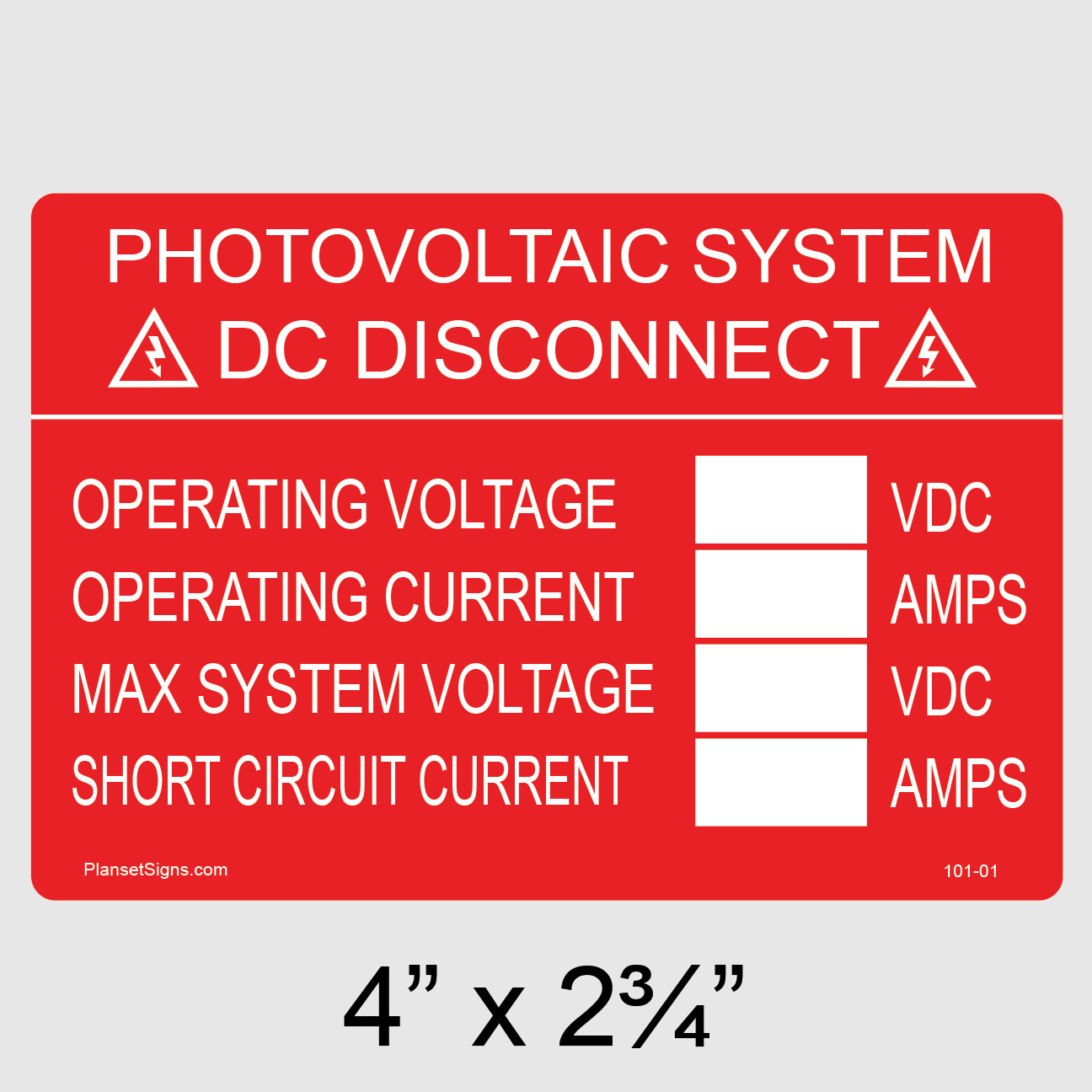

101-01 DC Disconnect Label
Made in USA
NEC Compliant
Ships same day
Solar PV disconnect write-in label with red background and white letters (4″ x 3″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Avery Dennison® MPI Hi Tack Easy Apply™ vinyl. The sign reads: ‘PHOTOVOLTAIC SYSTEM DC DISCONNECT OPERATING VOLTAGE VDC OPERATING CURRENT AMPS MAX SYSTEM VOLTAGE VDC SHORT CIRCUIT CURRENT AMPS’. This label is available as a red label and red placard. This label is used on dc strings solar installations
Available variants
Used on
PHOTOVOLTAIC SYSTEM DC DISCONNECT OPERATING VOLTAGE VDC OPERATING CURRENT AMPS MAX SYSTEM VOLTAGE VDC SHORT CIRCUIT CURRENT AMPS
About this label
Solar PV disconnect write-in label with red background and white letters (4″ x 3″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Avery Dennison® MPI Hi Tack Easy Apply™ vinyl. The sign reads: ‘PHOTOVOLTAIC SYSTEM DC DISCONNECT OPERATING VOLTAGE VDC OPERATING CURRENT AMPS MAX SYSTEM VOLTAGE VDC SHORT CIRCUIT CURRENT AMPS’. This label is available as a red label and red placard. This label is used on dc strings solar installations
NEC compliance
- 690.53
- Editions: 2011
NEC Articles
- 690.53
Code years covered
- NEC 2011 — required
Summary
Premium outdoor vinyl solar label (UV cured inks).
Dimensions
| Width | 4″ |
| Height | 2.75″ |
Material
| Spec | Avery Dennison® MPI Matte Opaque Hi Tack Easy Apply™ |
| Adhesive | Exceptionally strong long-life outdoor adhesive |
| Origin | USA |
| UV Stable | YES |
| Weatherable | YES |
Appearance
| Background | Red |
| Letters | White |
| Finish | Gloss laminate |
