SKU 175-02 · Solar PV Stock Placards

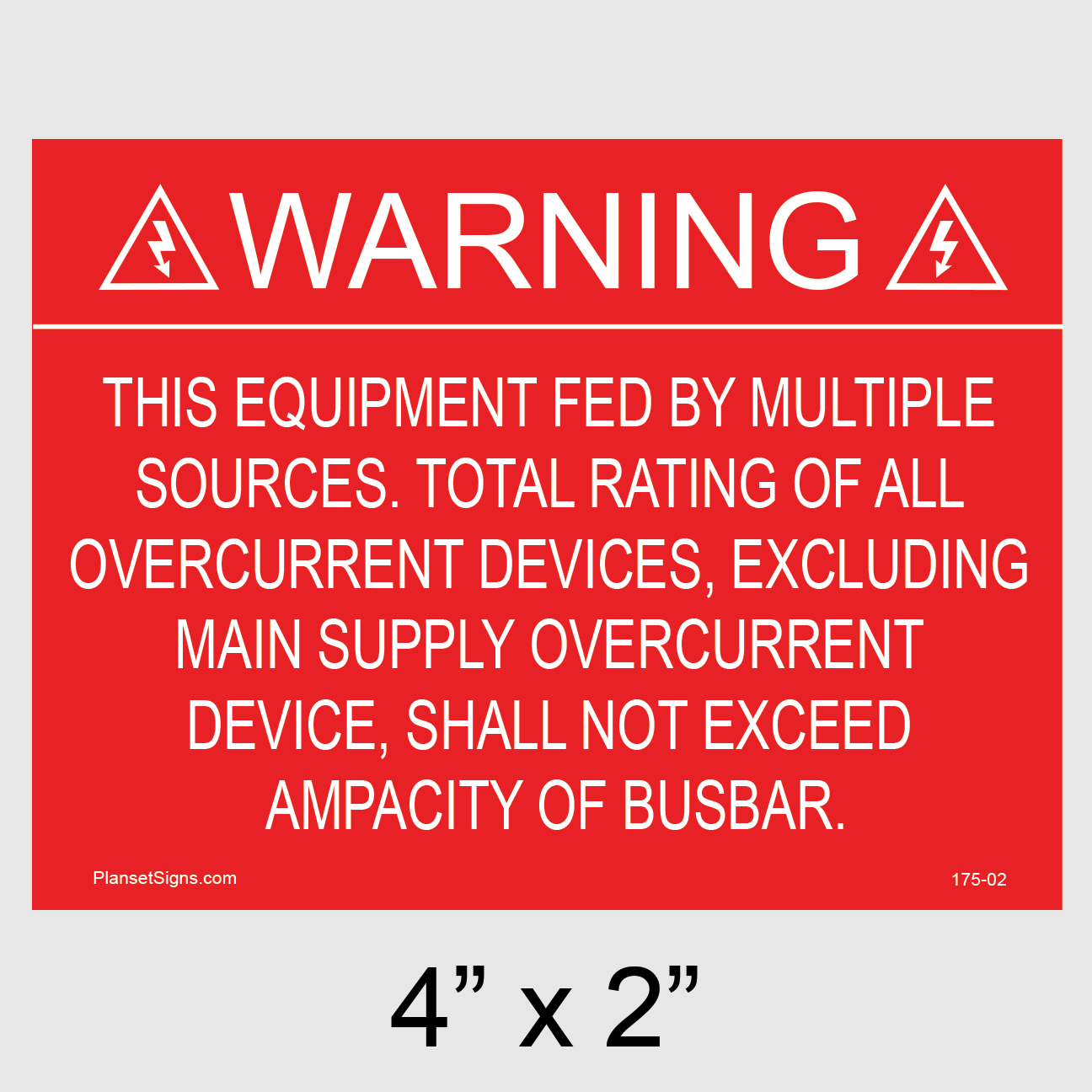

175-02 Shall Not Exceed Ampacity of Busbar Placard
Made in USA
NEC Compliant
Ships same day
Solar PV stock placard with red background and white letters (4″ x 2″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Rowmark UltraGrave® Engraving Plastic. The sign reads: ‘WARNING:THIS EQUIPMENT FED BY MULTIPLE SOURCES.TOTAL RATING OF ALL OVERCURRENT DEVICES,EXCLUDING MAIN SUPPLY OVERCURRENT DEVICE,SHALL NOT EXCEED AMPACITY OF BUSBAR.’. This placard is available as a red label, red placard and white label with orange header. This placard is used on micro inverter and dc strings solar installations
Available variants
Used on
WARNING:THIS EQUIPMENT FED BY MULTIPLE SOURCES.TOTAL RATING OF ALL OVERCURRENT DEVICES,EXCLUDING MAIN SUPPLY OVERCURRENT DEVICE,SHALL NOT EXCEED AMPACITY OF BUSBAR.
About this placard
Solar PV stock placard with red background and white letters (4″ x 2″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Rowmark UltraGrave® Engraving Plastic. The sign reads: ‘WARNING:THIS EQUIPMENT FED BY MULTIPLE SOURCES.TOTAL RATING OF ALL OVERCURRENT DEVICES,EXCLUDING MAIN SUPPLY OVERCURRENT DEVICE,SHALL NOT EXCEED AMPACITY OF BUSBAR.’. This placard is available as a red label, red placard and white label with orange header. This placard is used on micro inverter and dc strings solar installations
NEC compliance
- 705.12(D)(2)(3)(c)
- 705.12(B)(2)(3)(c)
- 705.12(B)(3)(3)
- 705.12(B)(3)
- Editions: 2014, 2017, 2020, 2023
NEC Articles
- 705.12(D)(2)(3)(c)
- 705.12(B)(2)(3)(c)
- 705.12(B)(3)(3)
- 705.12(B)(3)
Code years covered
- NEC 2014 — required
- NEC 2017 — required
- NEC 2020 — required
- NEC 2023 — required
Summary
Premim engraved outdoor matte placard
Dimensions
| Width | 4″ |
| Height | 3″ |
Material
| Spec | <a href="https://jpp.trgcdn.com/media/mageworx/downloads/attachment/file/u/l/ultragrave_sds.pdf" target="_blank" rel="noopener">Spec document</a> |
| Adhesive | Exceptionally strong backing adhesive |
| Origin | USA |
| UV Stable | YES |
| Weatherable | YES |
Appearance
| Background | Red |
| Letters | White |
| Finish | Matte |
