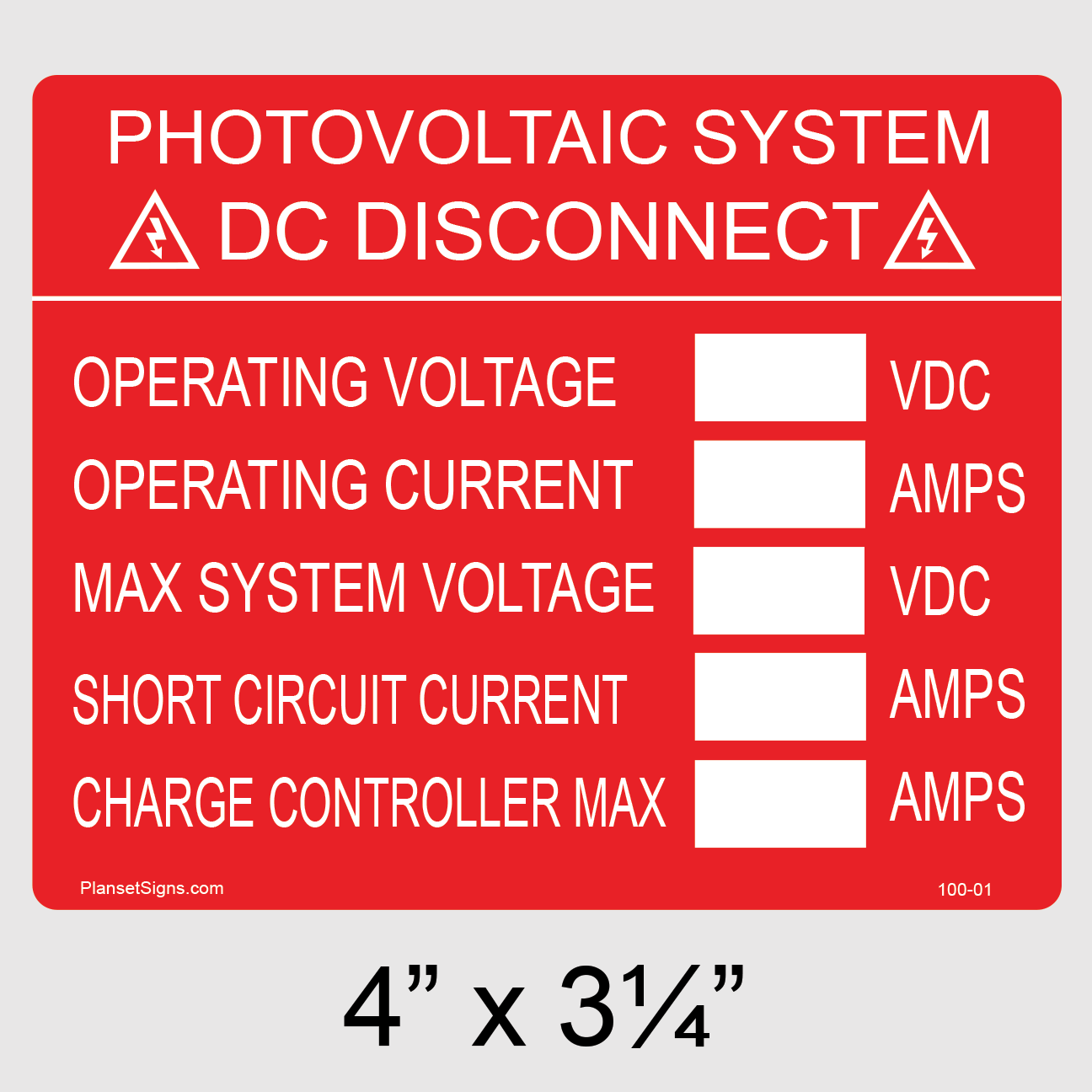

100-01 DC Disconnect Write-In Label
Made in USA
NEC Compliant
Ships same day
Solar PV disconnect write-in label with red background and white letters (4″ x 3″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Avery Dennison® MPI Hi Tack Easy Apply™ vinyl. The sign reads: 'PHOTOVOLTAIC SYSTEM DC DISCONNECT OPERATING VOLTAGE VDC OPERATING CURRENT AMPS MAX SYSTEM VOLTAGE VDC SHORT CIRCUIT CURRENT AMPSCHARGE CONTROLLER MAX AMPS'. This label is available as a red label and red placard. This label is used on dc strings solar installations
NEC Articles
- 690.53
Code years covered
- NEC 2011 — required
| Width | 4″ |
| Height | 3.25″ |
| Background | Red |
| Letters | White |
| Finish | Gloss laminate |
| Material | Avery Dennison® MPI Matte Opaque Hi Tack Easy Apply™ |
| Adhesive | Exceptionally strong long-life outdoor adhesive |
| Origin | USA |
| UV Stable | YES |
| Weatherable | YES |
