SKU 102-02 · Solar PV Custom Placards

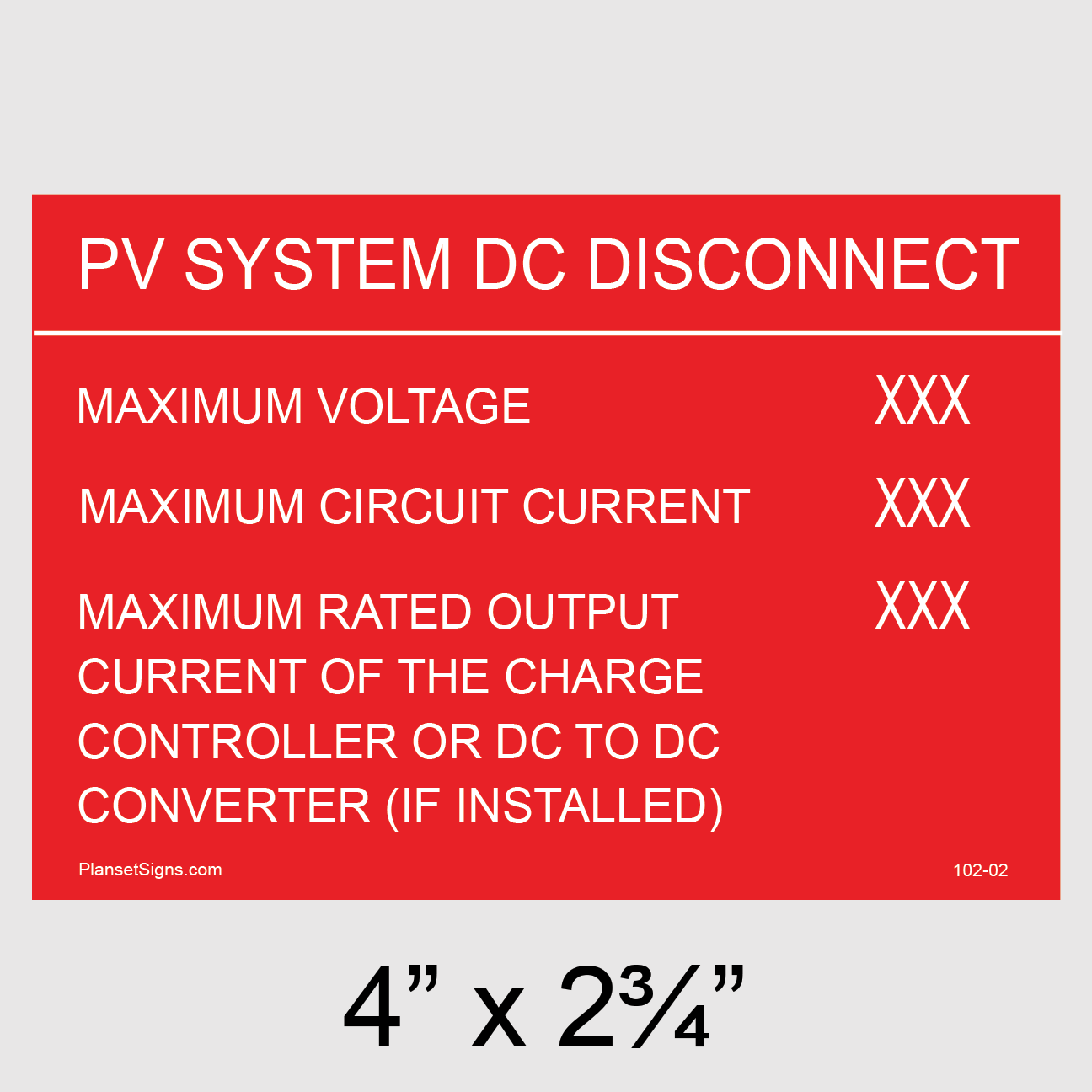

102-02 DC Disconnect Placard
Made in USA
NEC Compliant
Ships same day
Solar PV custom placard with red background and white letters (4″ x 3″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Rowmark UltraGrave® Engraving Plastic. The sign reads: ‘PV SYSTEM DC DISCONNECT MAXIMUM VOLTAGE MAXIMUM CIRCUIT CURRENT MAXIMUM RATED OUTPUT CURRENT OF THE CHARGE CONTROLLER OR DC TO DC CONVERTER (IF INSTALLED)’. This placard is available as a red label and red placard. This placard is used on dc strings solar installations
Available variants
Used on
PV SYSTEM DC DISCONNECT MAXIMUM VOLTAGE MAXIMUM CIRCUIT CURRENT MAXIMUM RATED OUTPUT CURRENT OF THE CHARGE CONTROLLER OR DC TO DC CONVERTER (IF INSTALLED)
About this placard
Solar PV custom placard with red background and white letters (4″ x 3″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Rowmark UltraGrave® Engraving Plastic. The sign reads: ‘PV SYSTEM DC DISCONNECT MAXIMUM VOLTAGE MAXIMUM CIRCUIT CURRENT MAXIMUM RATED OUTPUT CURRENT OF THE CHARGE CONTROLLER OR DC TO DC CONVERTER (IF INSTALLED)’. This placard is available as a red label and red placard. This placard is used on dc strings solar installations
NEC compliance
- 690.53
- Editions: 2017
NEC Articles
- 690.53
Code years covered
- NEC 2017 — required
Summary
Premim engraved outdoor matte placard
Dimensions
| Width | 4″ |
| Height | 2.75″ |
Material
| Spec | <a href="https://jpp.trgcdn.com/media/mageworx/downloads/attachment/file/u/l/ultragrave_sds.pdf" target="_blank" rel="noopener">Spec document</a> |
| Adhesive | Exceptionally strong backing adhesive |
| Origin | USA |
| UV Stable | YES |
| Weatherable | YES |
Appearance
| Background | Red |
| Letters | White |
| Finish | Matte |
