SKU 103-01 · Solar PV Write-In Labels

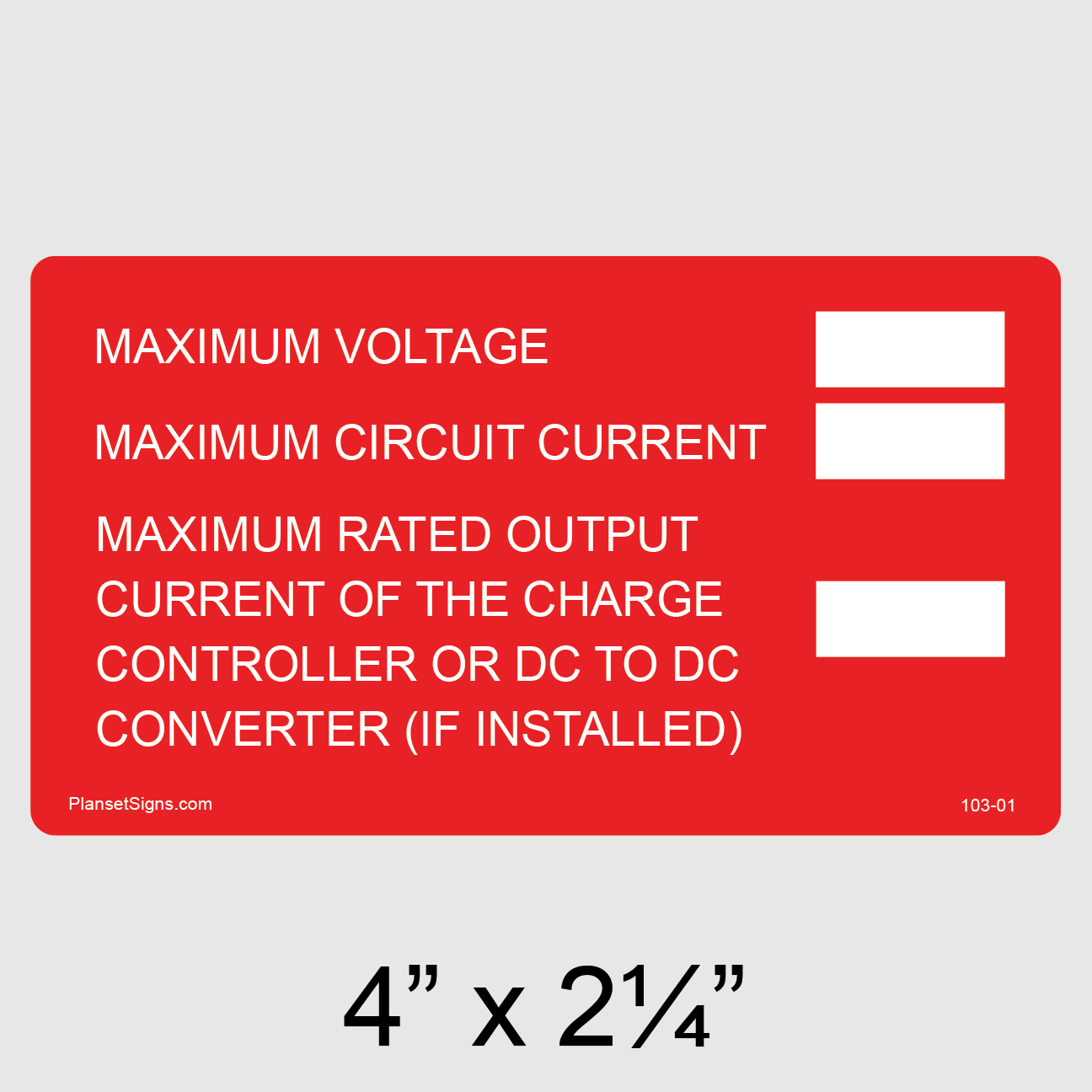

103-01 Maximum Voltage Label
Made in USA
NEC Compliant
Ships same day
Solar PV ESS write-in label with red background and white letters (4″ x 3″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Avery Dennison® MPI Hi Tack Easy Apply™ vinyl. The sign reads: ‘MAXIMUM VOLTAGEMAXIMUM CIRCUIT CURRENT WRITE IN MAX RATED OUTPUT CURRENT OF THE CHARGE CONTROLLER OR DC TO DC CONVERTER (IF INSTALLED)’. This label is available as a red label and red placard.
Available variants
Used on
MAXIMUM VOLTAGE MAXIMUM CIRCUIT CURRENT WRITE IN MAX RATED OUTPUT CURRENT OF THE CHARGE CONTROLLER OR DC TO DC CONVERTER (IF INSTALLED)
About this label
Solar PV ESS write-in label with red background and white letters (4″ x 3″). Made in the USA with UV-resistant, NEC-compliant, outdoor rated Avery Dennison® MPI Hi Tack Easy Apply™ vinyl. The sign reads: ‘MAXIMUM VOLTAGEMAXIMUM CIRCUIT CURRENT WRITE IN MAX RATED OUTPUT CURRENT OF THE CHARGE CONTROLLER OR DC TO DC CONVERTER (IF INSTALLED)’. This label is available as a red label and red placard.
NEC compliance
- 690.53
- Editions: 2017
NEC Articles
- 690.53
Code years covered
- NEC 2017 — required
Summary
Premium outdoor vinyl solar label (UV cured inks).
Dimensions
| Width | 4″ |
| Height | 2.25″ |
Material
| Spec | Avery Dennison® MPI Matte Opaque Hi Tack Easy Apply™ |
| Adhesive | Exceptionally strong long-life outdoor adhesive |
| Origin | USA |
| UV Stable | YES |
| Weatherable | YES |
Appearance
| Background | Red |
| Letters | White |
| Finish | Gloss laminate |
